With Daytime Running Lamps

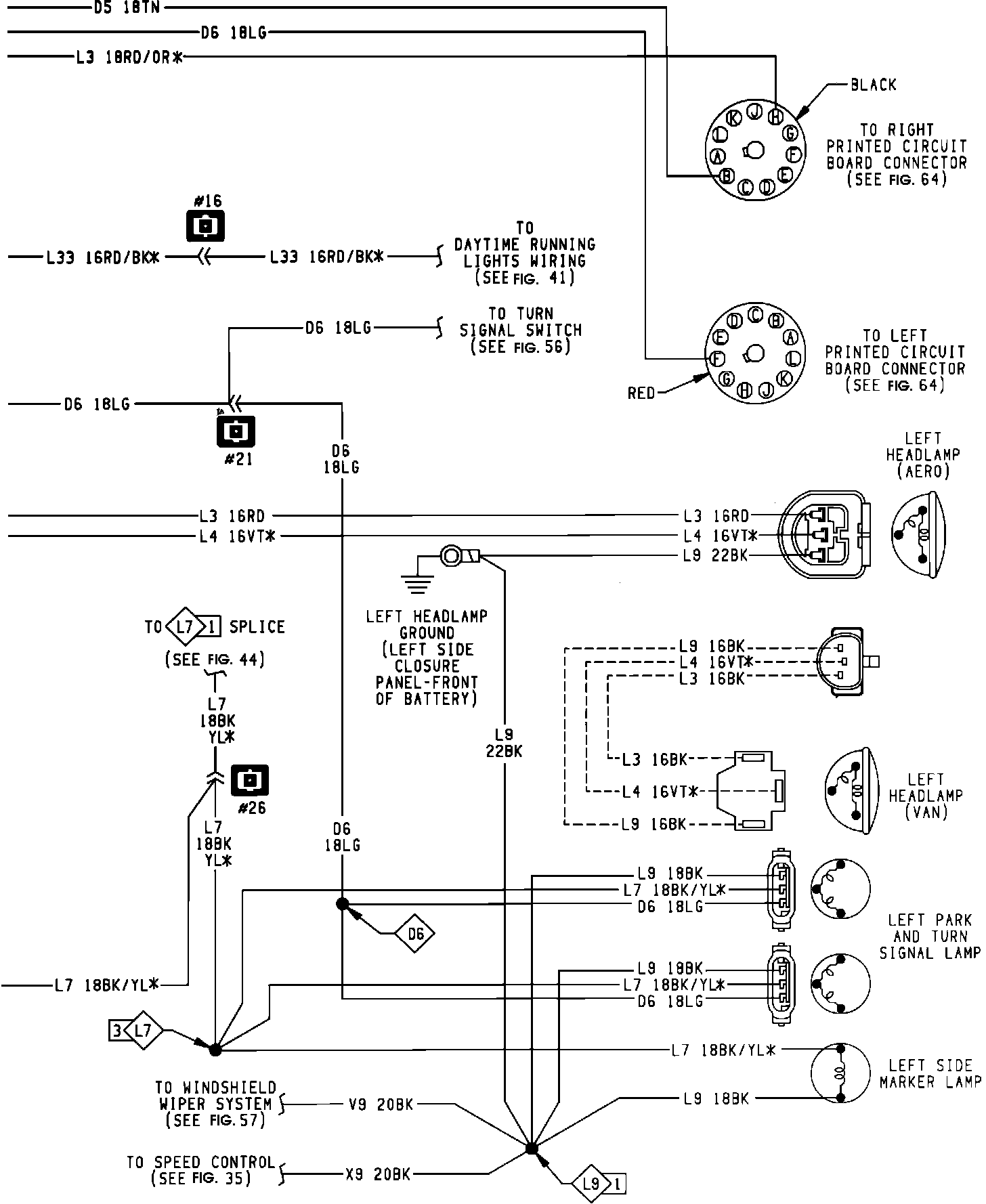

Front End Lighting With Daytime Running Lights:



Front End Lighting With Daytime Running Lights:
