Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1995
>>
Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Vanity Lamp
Vanity Lamp

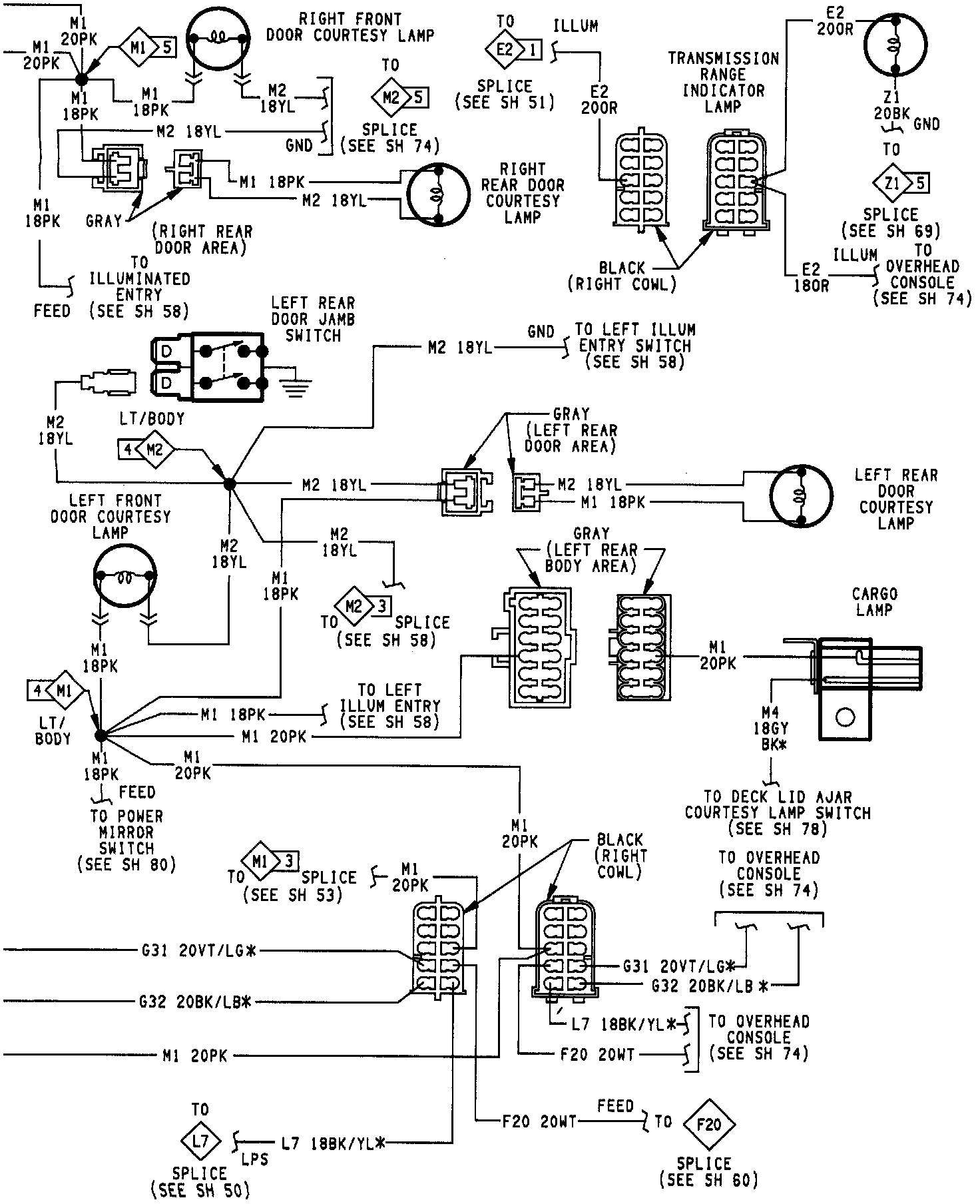

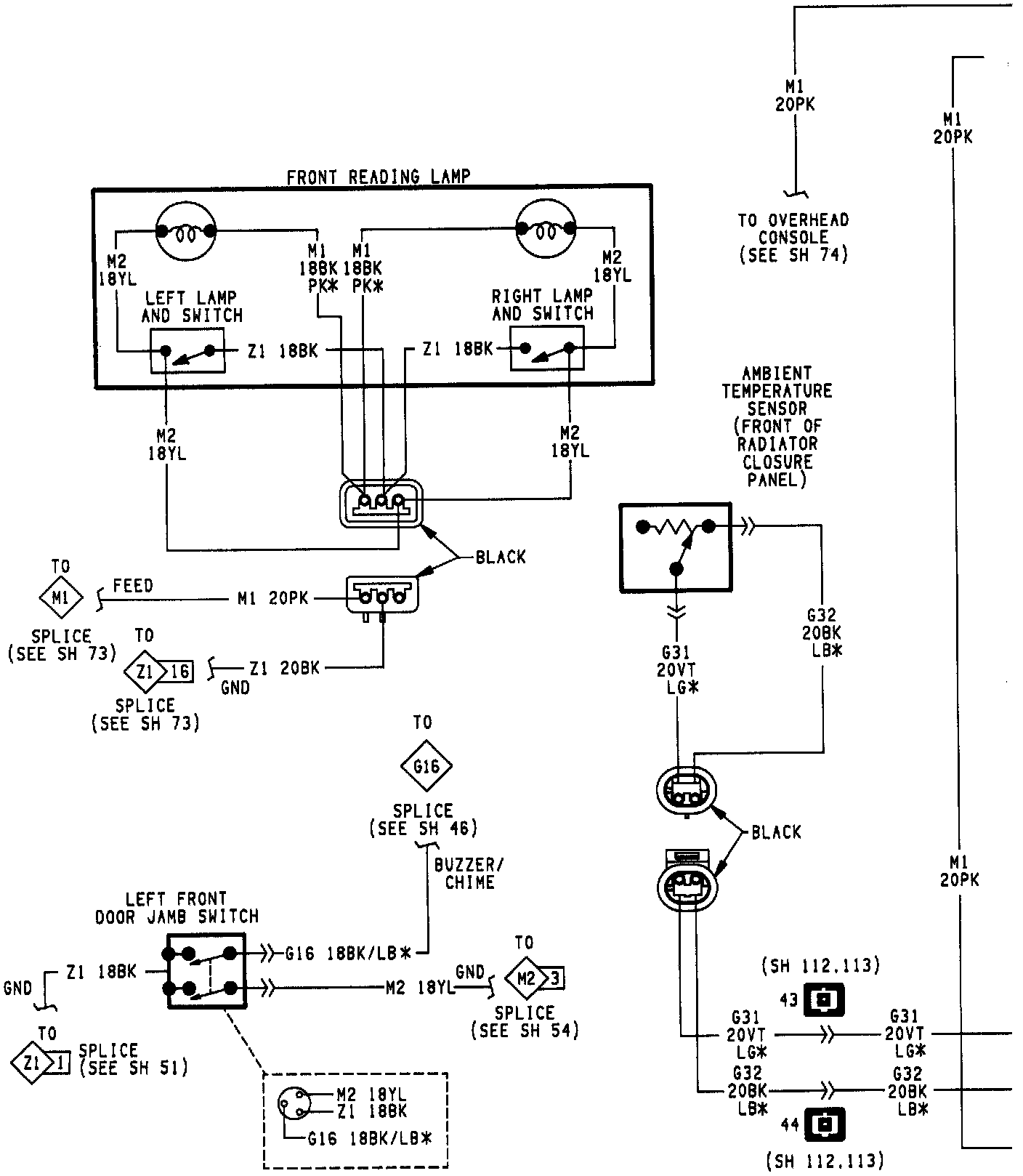

Overhead Console, Dome, Reading & Visor Lamps:
Overhead Console, Dome, Reading & Visor Lamps:
Overhead Console, Dome, Reading & Visor Lamps:
Overhead Console, Dome, Reading & Visor Lamps:
