Home
>>
Plymouth
>>
1995
>>
Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Relays and Modules - Lighting and Horns
>>
Interior Lighting Relay
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

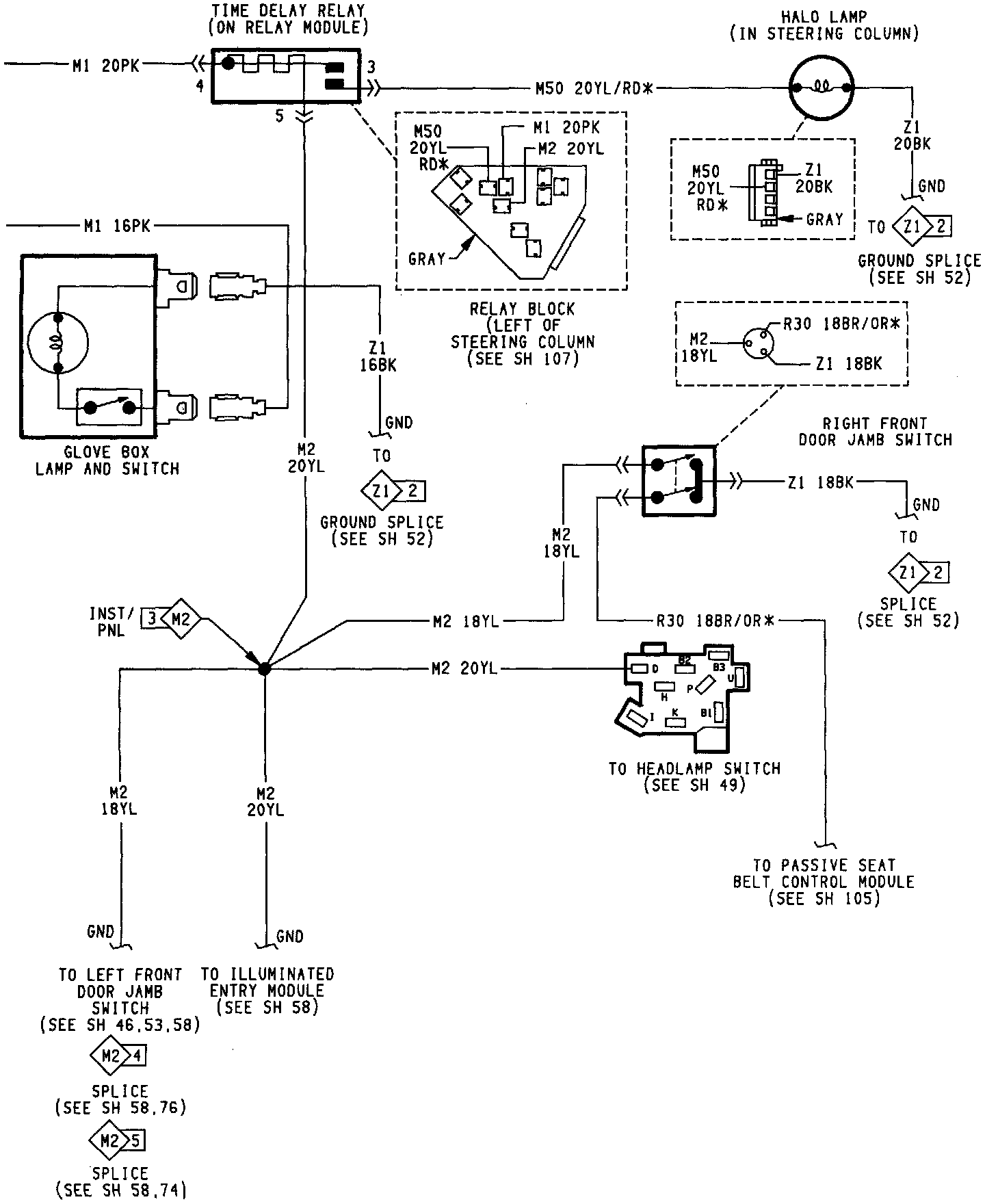

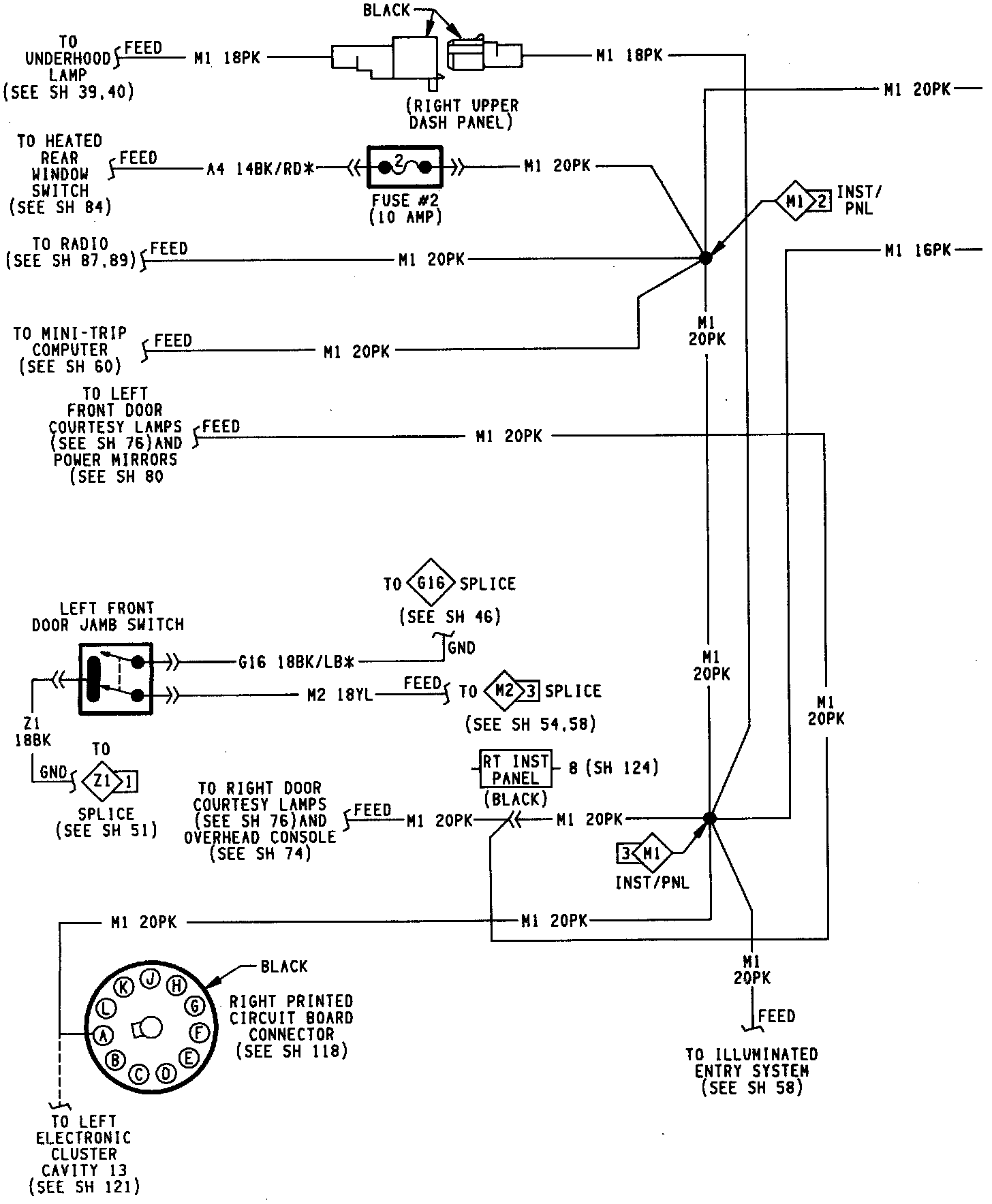

Time Delay Relay System:
Time Delay Relay System:
