Home >> Plymouth >> 1995 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 9

Part 9

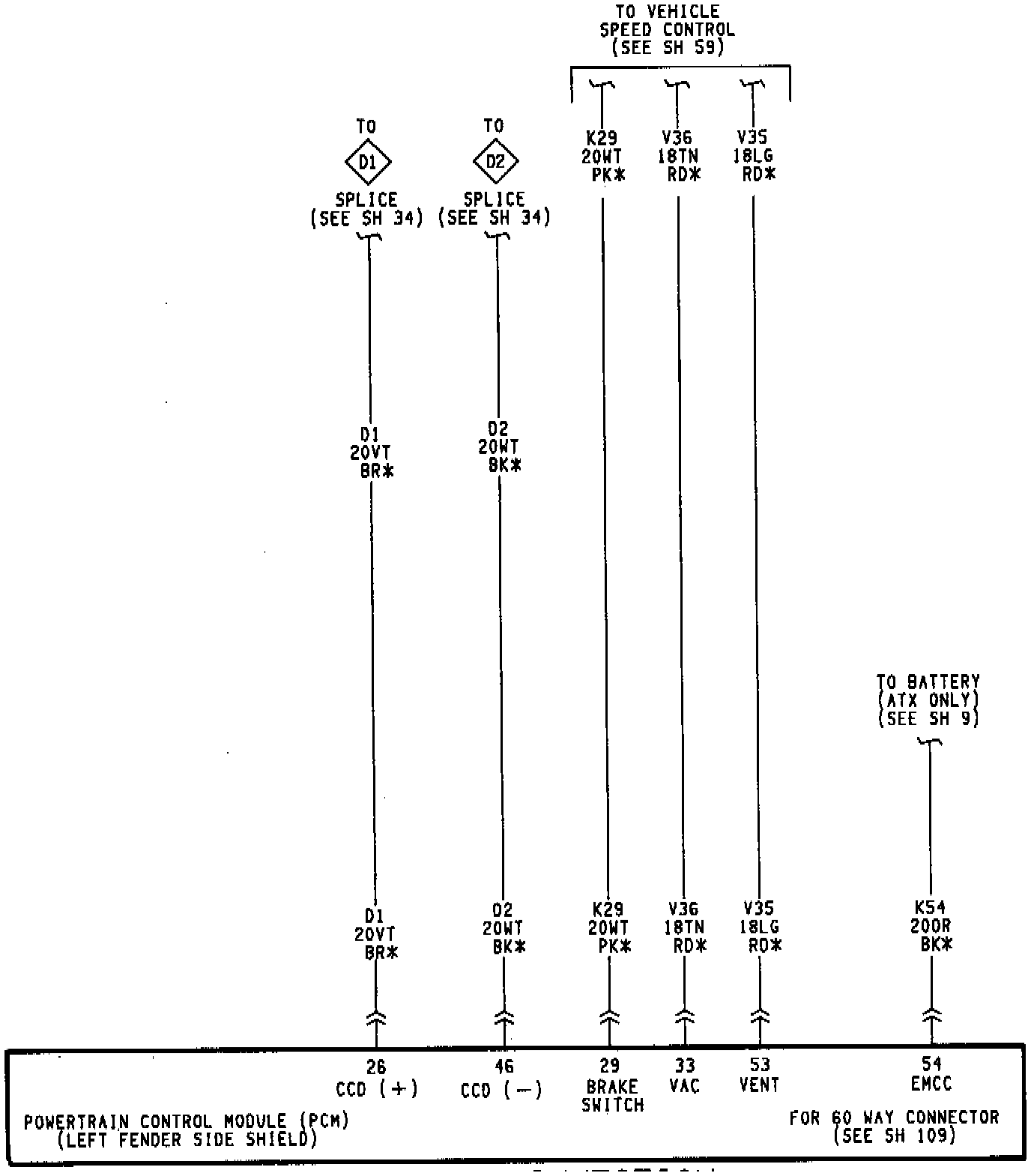

Fuel Injection System:
