Timing Cover: Service and Repair

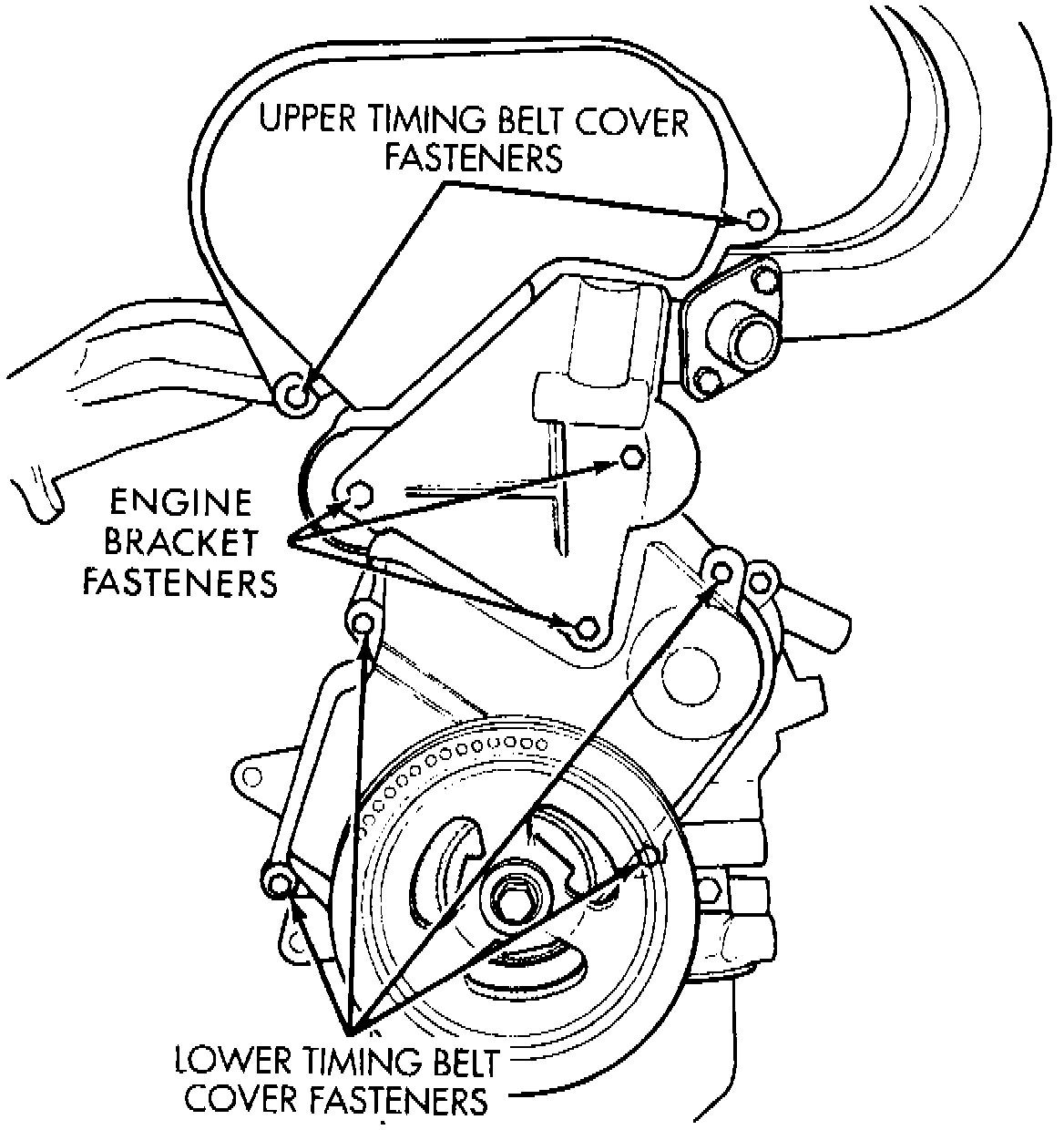

Fig. 10 Front Cover Replacement:
1.
Remove crankshaft damper bolt. Remove damper using puller tool No.
1026 and insert tool No.
6827, or equivalents.
2.
Remove front cover bolts,
Fig. 10, then front cover.
3.
Remove
engine mount and bracket.
4.
Remove front half of timing belt cover.
5.
Reverse procedure to install.
