Control Assembly: Service and Repair

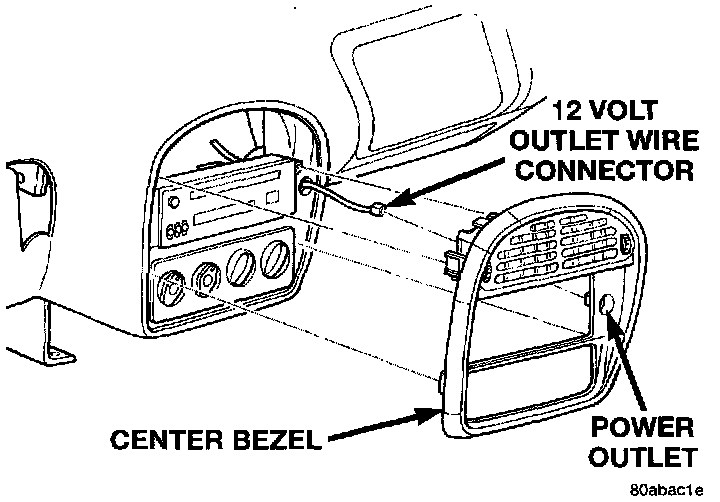

Fig 37 Center Bezel:

REMOVAL
1. Pull center bezel straight rearward along the sides of the radio and A/C control openings to disengage four clips and disconnect the power outlet wire connector.

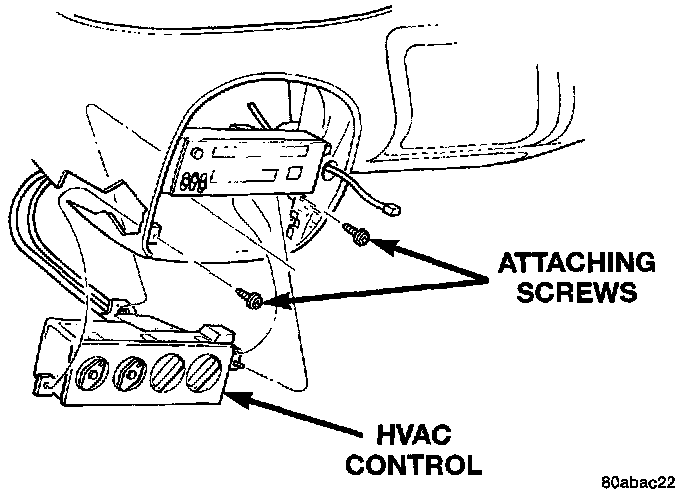

Fig 38 HVAC Control Removal:

2. Remove the HVAC control attaching screws. Pull the control out to disconnect two electrical connectors and two control cables.
3. Remove HVAC control.

INSTALLATION
For installation, reverse the above procedures.
- Verify that the cables are properly adjusted and the module is seated properly.
