Main Relay (Computer/Fuel System): Locations

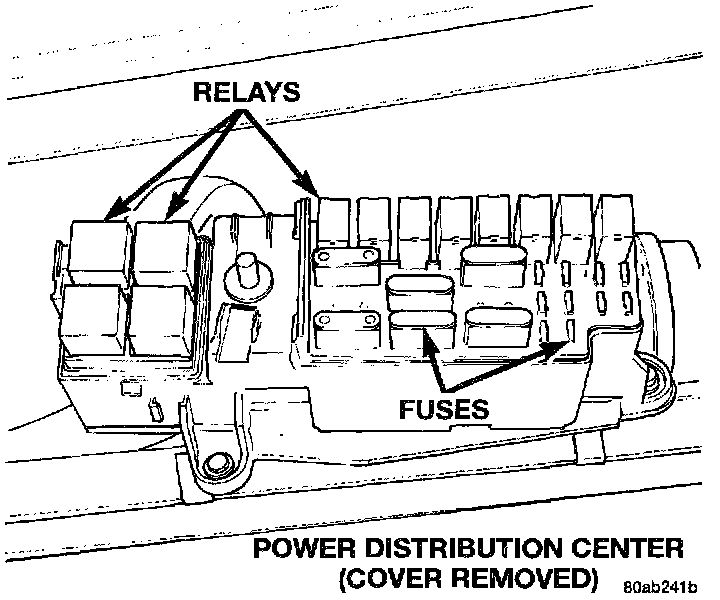

Power Distribution Center:
8w-10-002:
The ASD relay and fuel pump relay are located in the Power Distribution Center (PDC) near the battery. A decal on the underside of the PDC cover shows the locations of each relay and fuse contained in the PDC.
