Transmission Position Sensor/Switch: Service and Repair

REMOVAL
1. Disconnect the Transmission Range Sensor (TRS) connector.
2. Remove valve body assembly from vehicle. Refer to Valve Body for procedure.

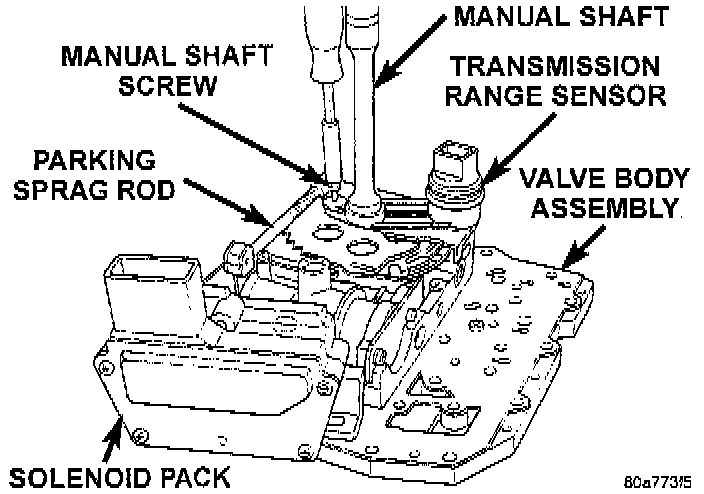

3. Remove manual shaft retaining screw.
4. Slide TRS off of manual valve shaft.

INSTALLATION
To install, reverse removal procedure.
