Alternator: Service and Repair

REMOVAL
1. Disconnect negative battery cable.
2. Remove headlamp assembly.
3. Remove the body side panel.

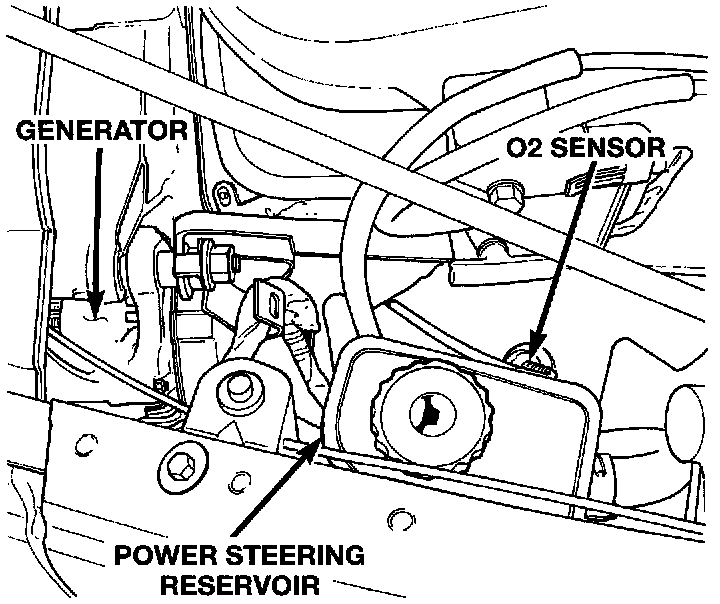

Power Steering Reservoir:

4. Remove power steering reservoir.
5. Remove wiring harness from body brace.
6. Disconnect wiring harness from fan module. Move wiring harness out of the way.

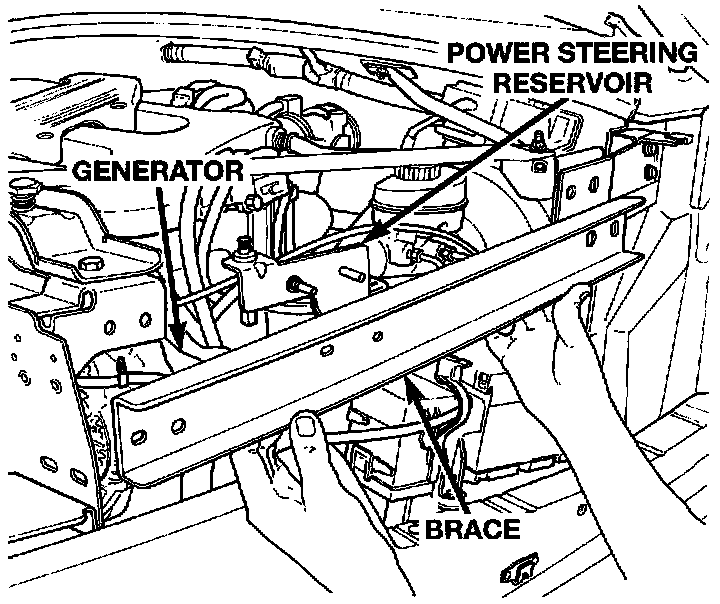

Body Brace:

7. Remove body brace.
8. Loosen belt adjustment bolt.
9. Remove the generator drive belt.

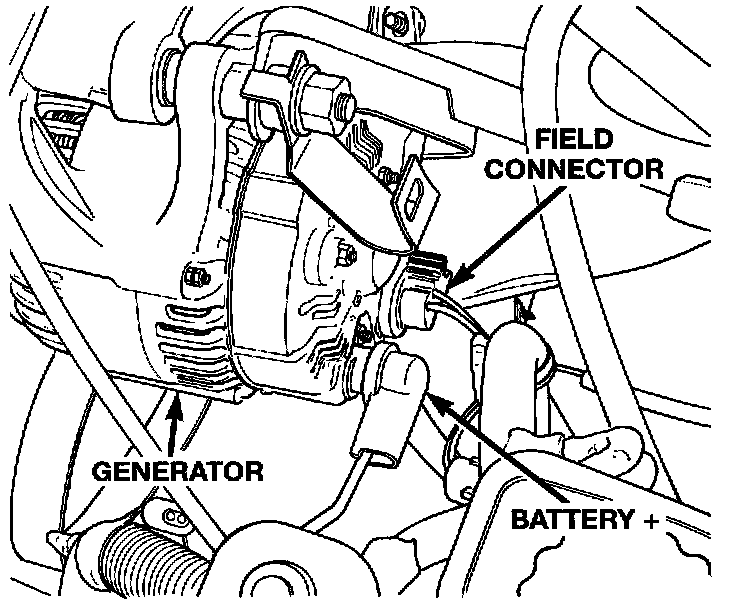

Generator Connections:

10. Remove generator field circuit from generator.
11. Remove the B+ terminal nut and wire.

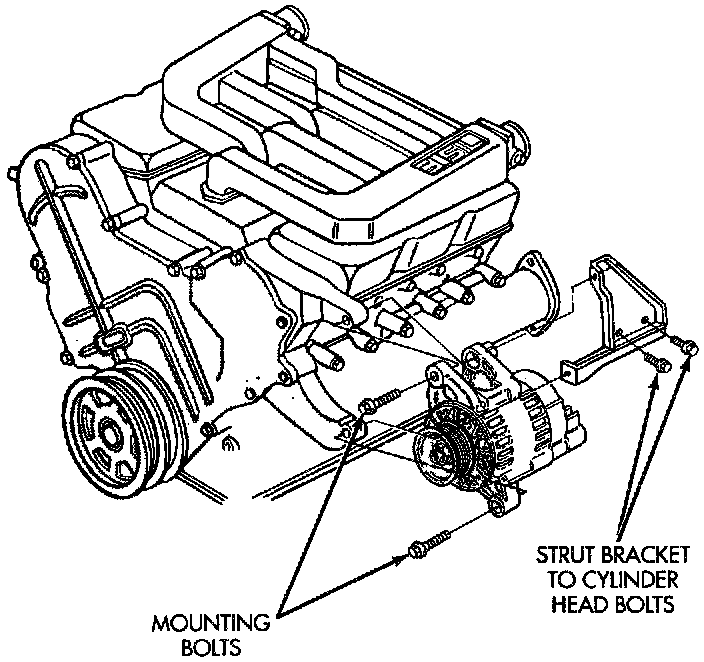

Generator:

12. Loosen lower mounting bolt do not remove.

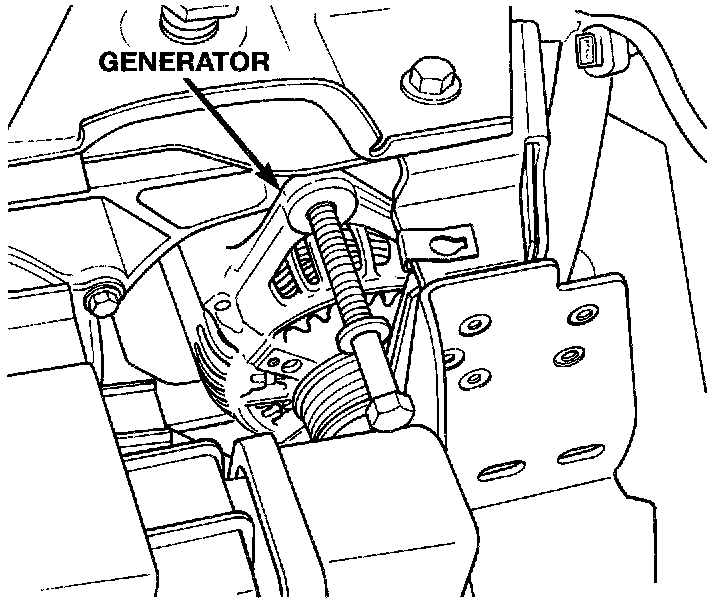

Loosen Pivot Bolt:

13. Loosen pivot bolt, but do not remove.
14. Remove lower mounting bolt.
15. Remove pivot bolt.

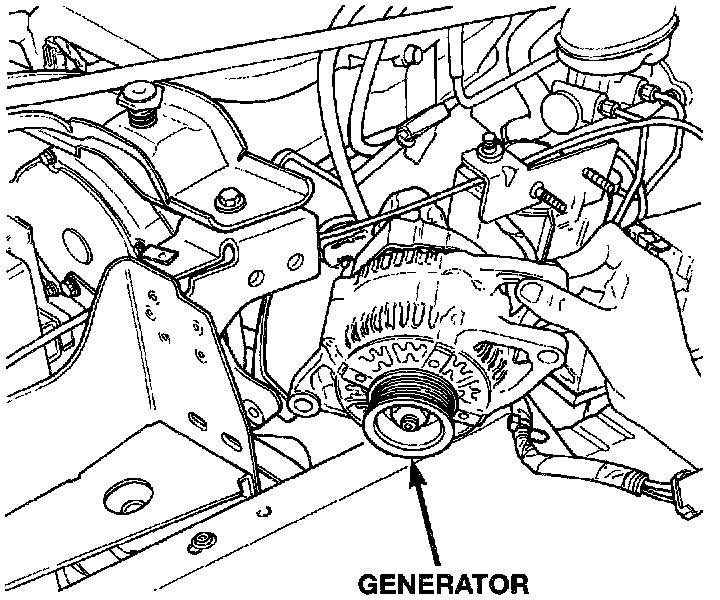

Remove Generator:

16. Remove generator.

INSTALLATION
- For installation, reverse above procedures. Tighten all fasteners to the proper torque. Refer to the Torque Specifications chart.
