Power Window Switch: Service and Repair

Door Lock/Window Switch and Bezel Replacement

REMOVAL
1. Open hood.
2. Disconnect and isolate negative battery cable.

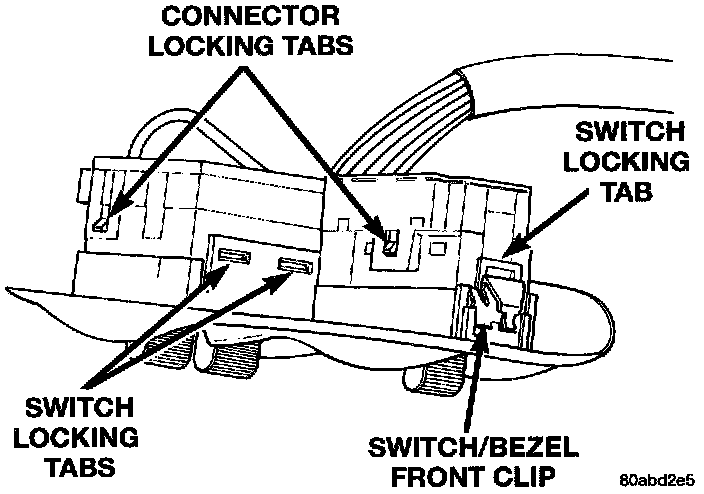

Door Lock/Window Switch And Bezel:

3. Using a trim stick (special tool # C-4755), place it underneath the front lip of the switch bezel and depress the front clip. Pry the switch bezel up to release it from the trim panel.
4. Disconnect the switch connector.

INSTALLATION
- For installation, reverse the above procedures.
