Home >> Plymouth >> 1999 >> Prowler V6-3.5L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Mode Switch, A/T

Transmission Mode Switch, A/T

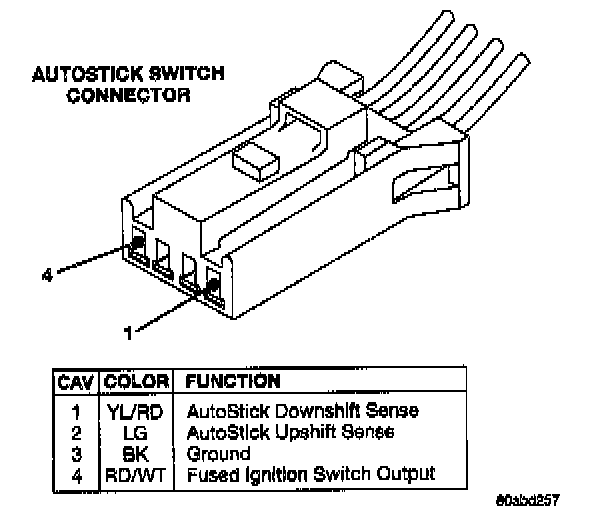

Auto Stick Switch:

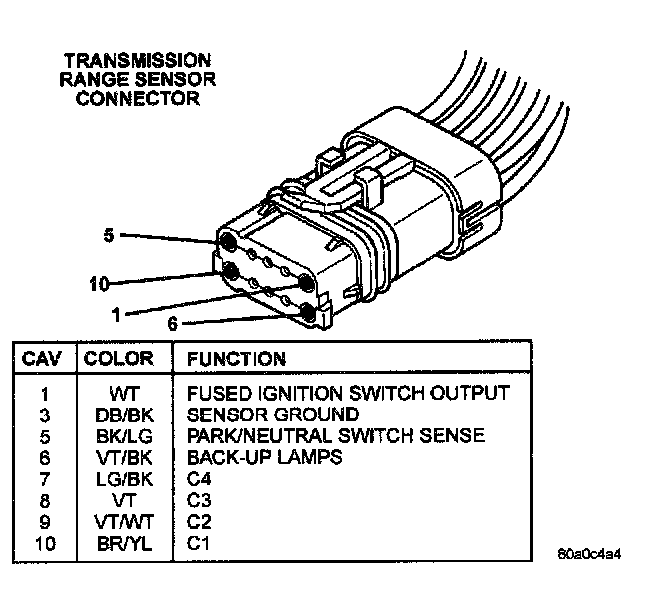

Transmission Range Sensor Connector:
