Home >> Plymouth >> 2000 >> Prowler V6-3.5L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

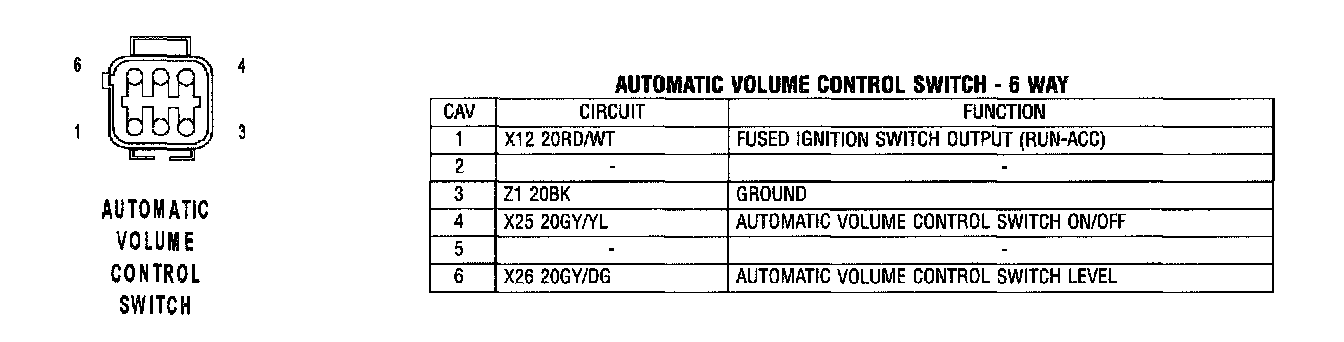

Automatic Volume Control Switch:

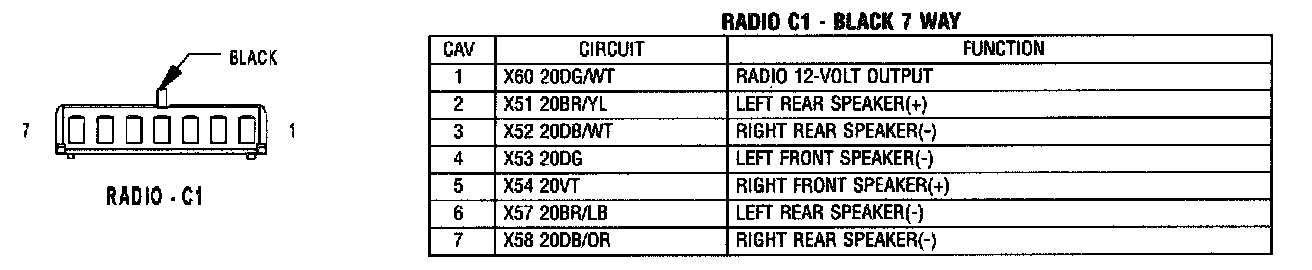

Radio - C1:

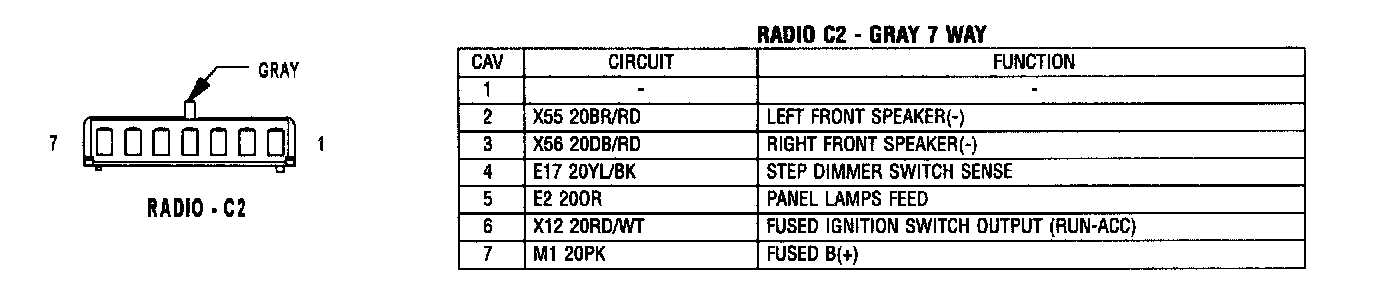

Radio - C2:

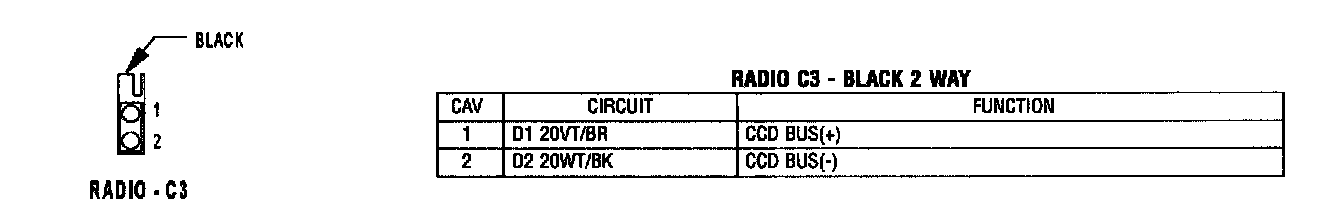

Radio - C3:
