Map Light: Testing and Inspection

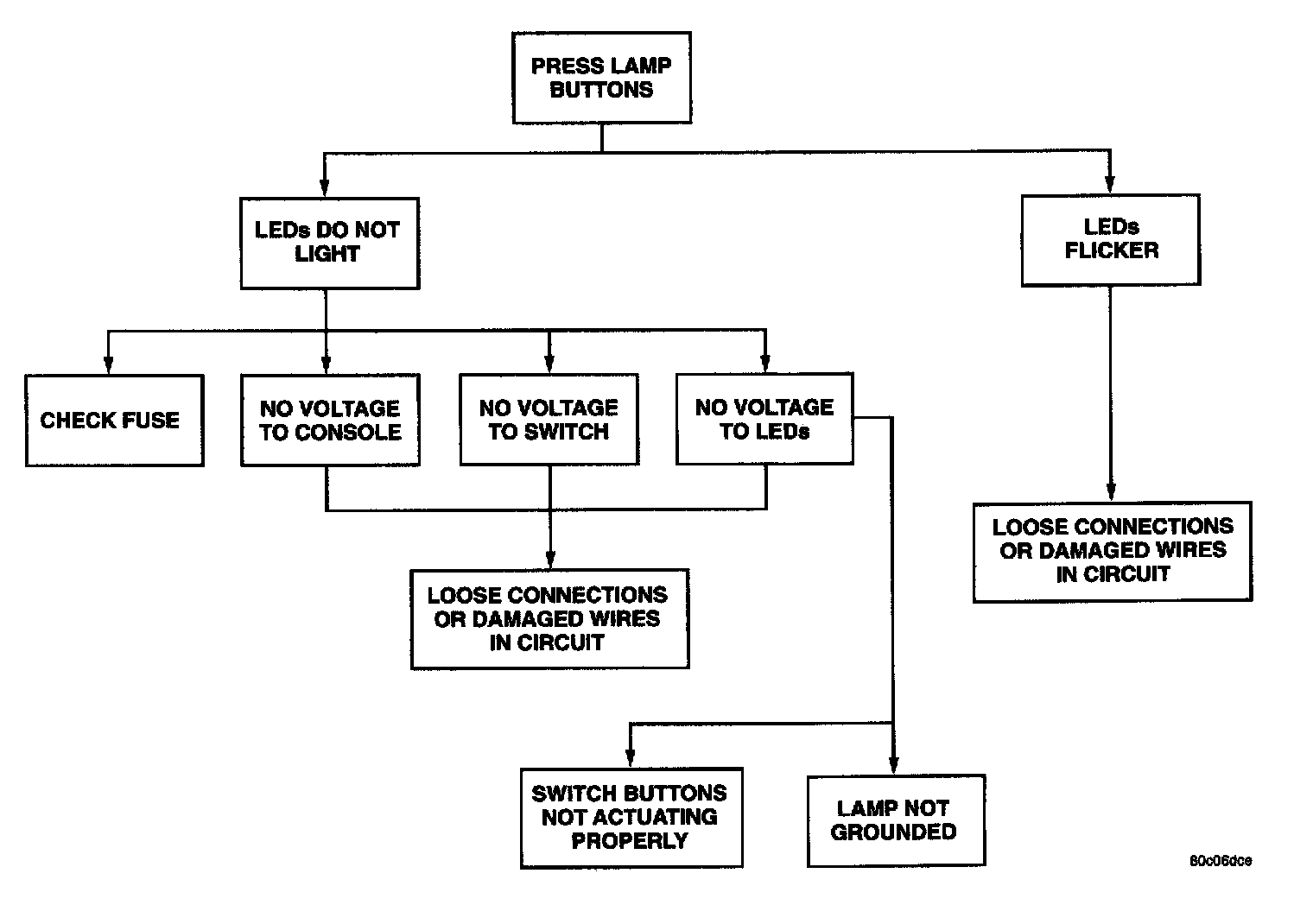

Reading Lamp Diagnosis

The reading lamps are actually LED's and operate in conjunction with the Remote Keyless Entry (RKE) system. Refer to Wiring Diagrams for component locations and circuit information.

Electrochromic Mini-Trip Mirror (EMTM) Lamp/Switch Diagnosis:

For additional diagnostic information on lamp operation controlled by the Body Control Module (BCM), refer to the proper Body Diagnostic Procedures.
