Combination Switch: Testing and Inspection

Multi-Function Switch Test:

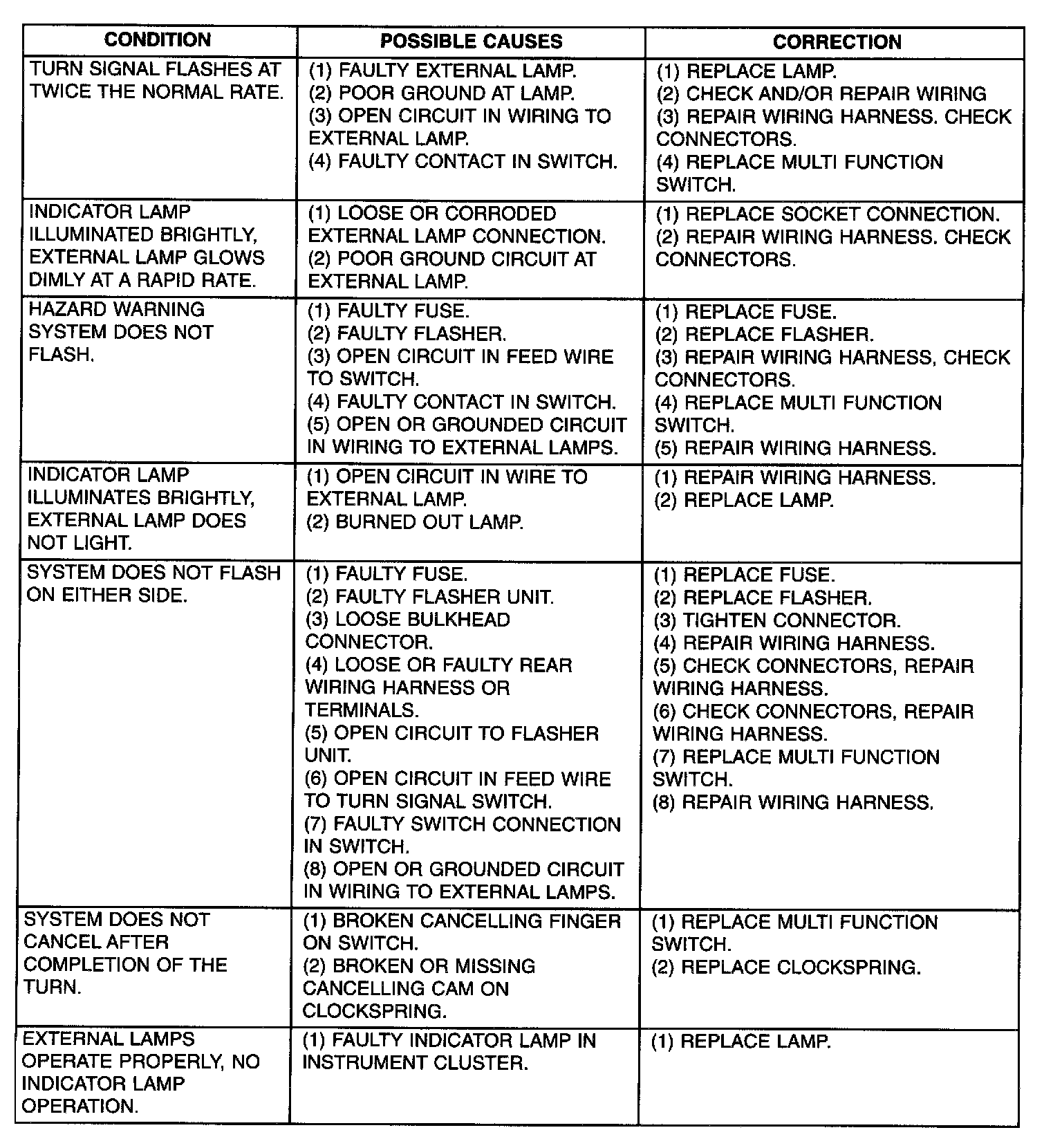

Should any function of the Multi-Function Switch fail, the entire switch assembly must be replaced. Refer to Multi-Function Switch Test table for testing.

Multi-Function Switch Test:

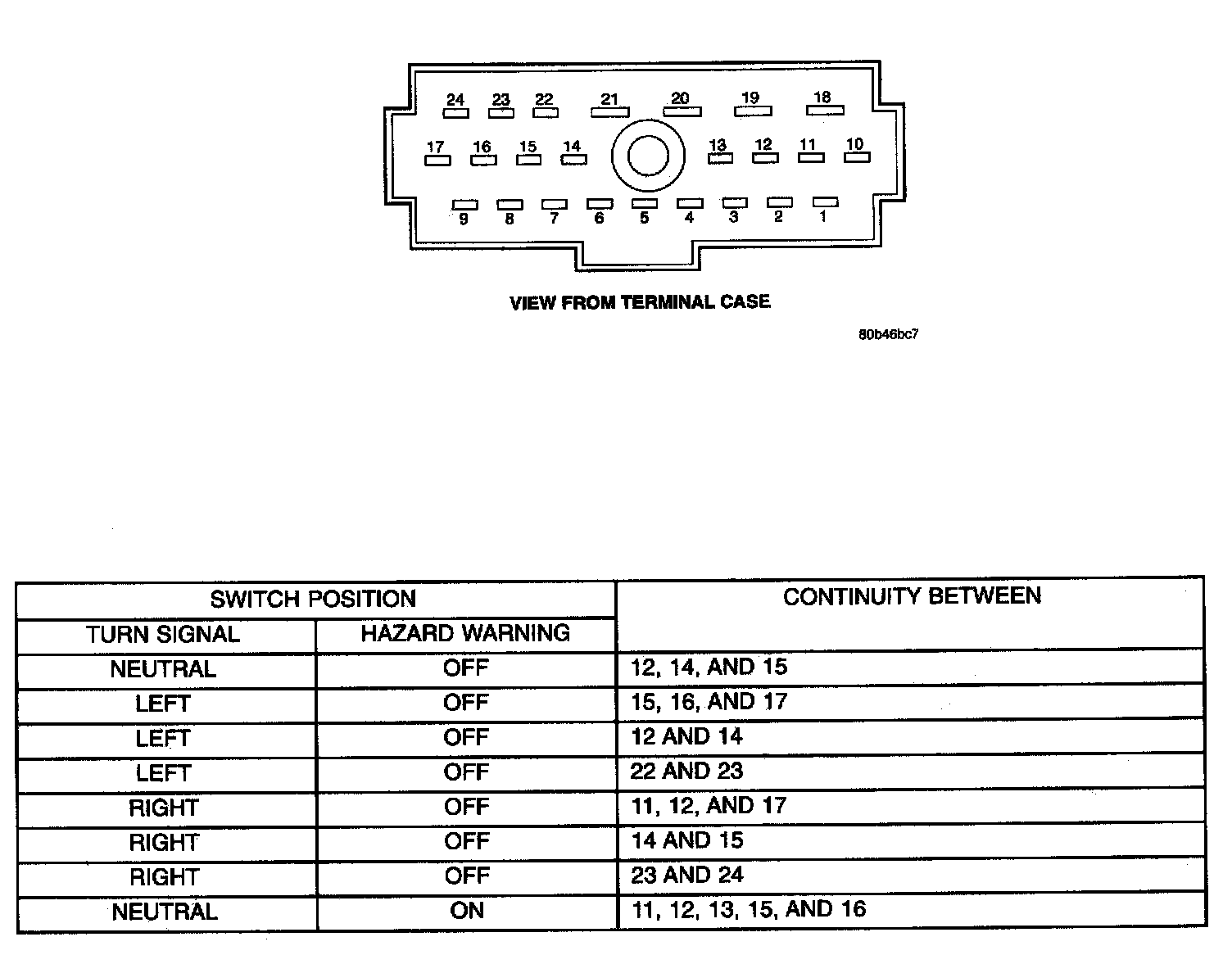

To test the switch, first remove the column shrouds to gain access to the switch connector. Remove switch connector. Using an ohmmeter, test for continuity (no resistance) between the terminals of the switch. Refer to and the Multi-Function Switch Continuity Test table.
