Battery Tray: Service and Repair

REMOVAL
1. Remove battery, refer to the above procedures.

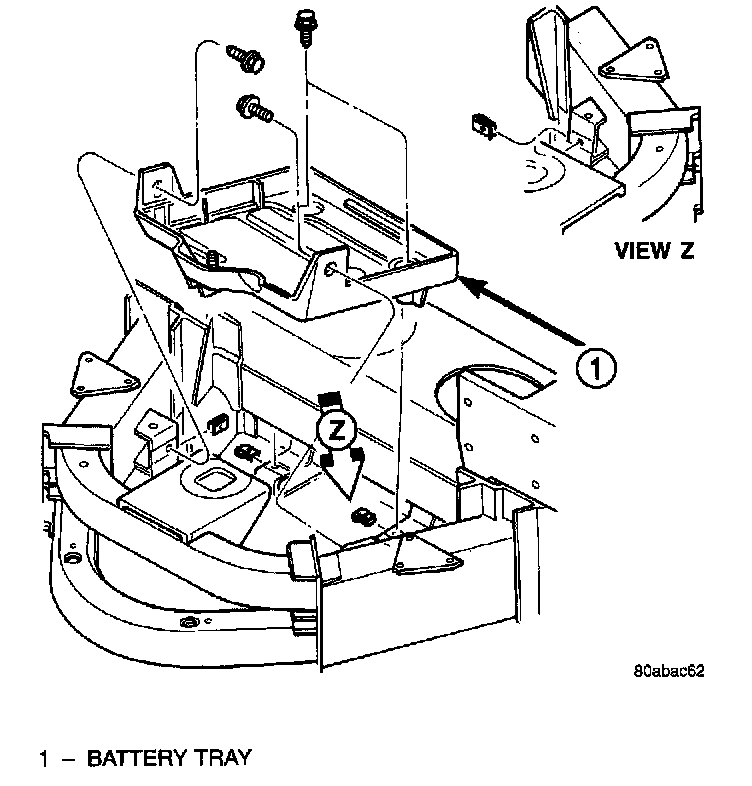

Battery Tray Removal:

2. Remove nut and four bolts from battery tray.
3. Remove battery tray from vehicle.

INSTALLATION
For installation, reverse the above procedures. Torque battery tray retaining bolts to 12.43 Nm (11 in.lbs.).
