Home >> Plymouth >> 2001 >> Prowler V6-3.5L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Switch

Door Switch

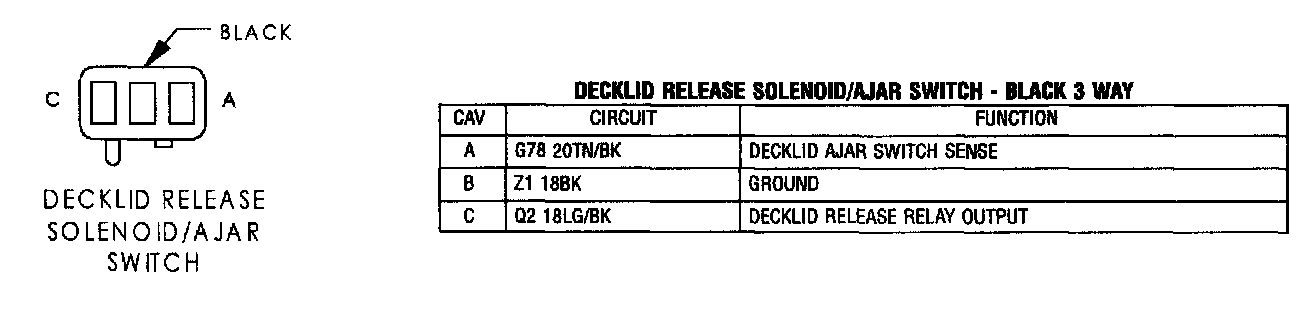

Decklid Release Solenoid/Ajar Switch:

Driver Door Ajar Switch:

Hood Ajar Switch:

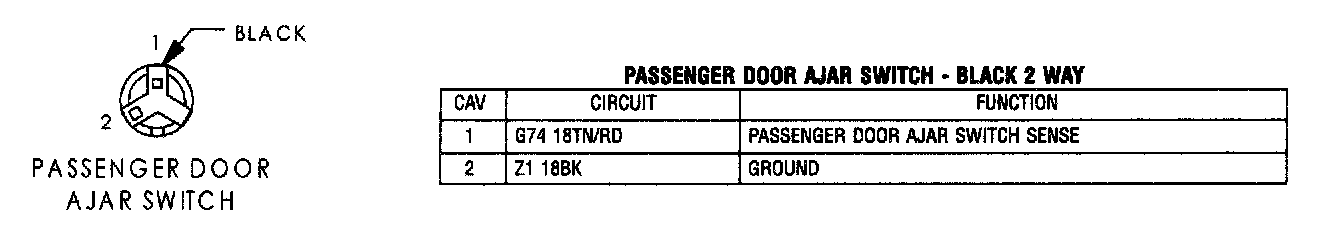

Passenger Door Ajar Switch:
