Connecting Rod Bearing: Service and Repair

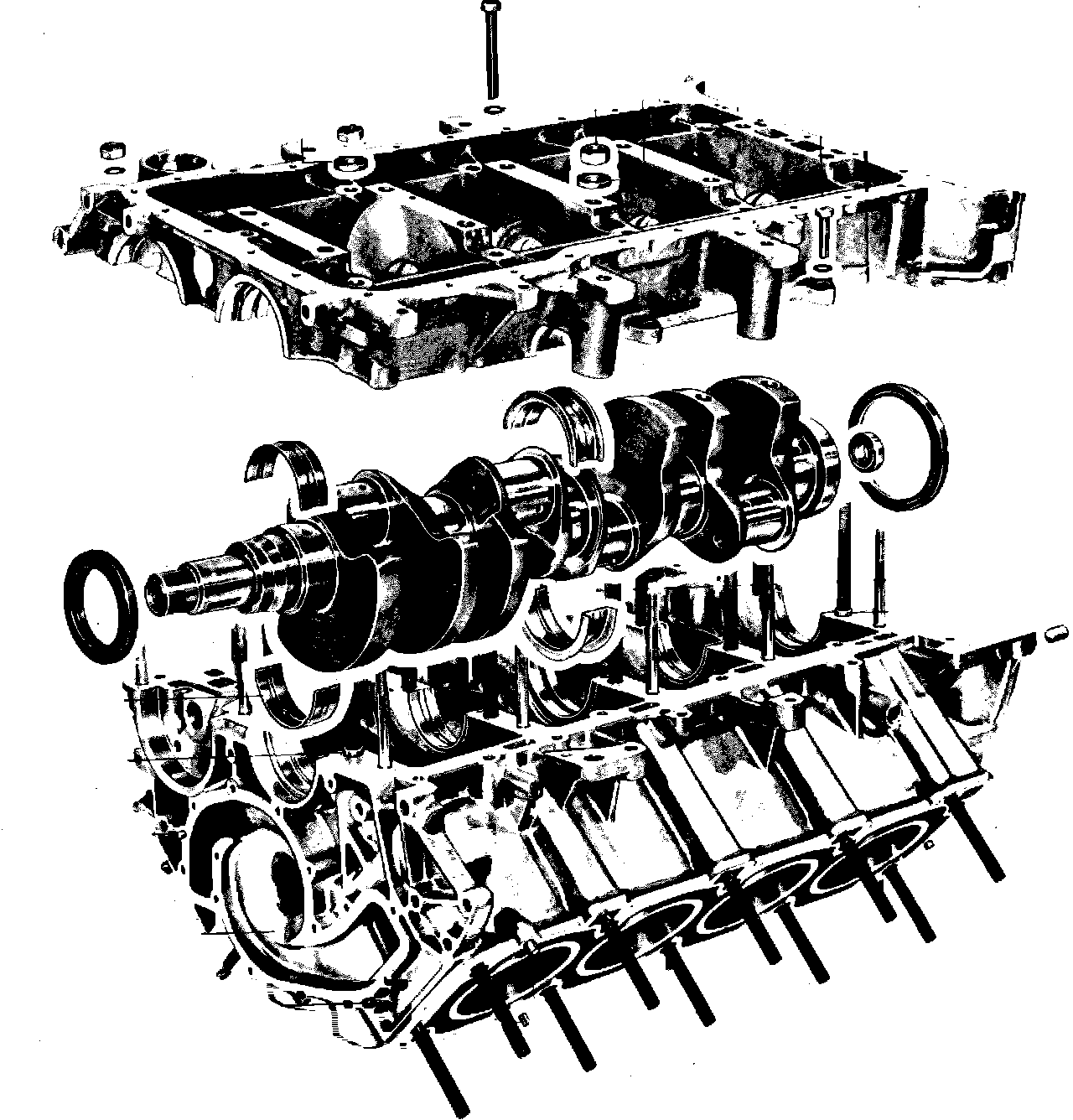

Fig. 15 Crankcase & crankshaft exploded view.:

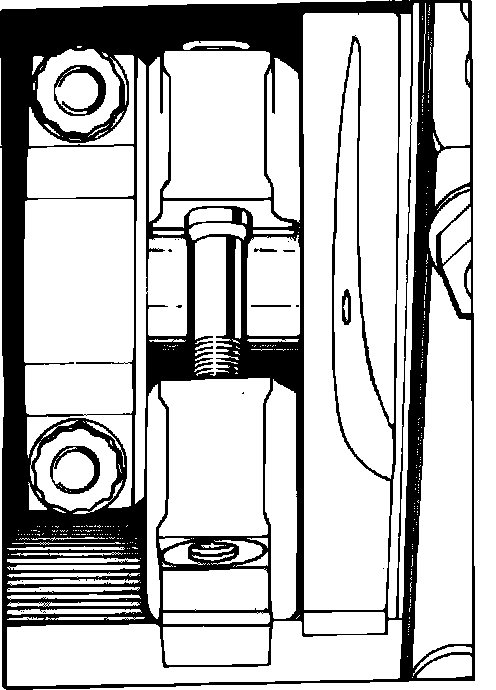

Fig. 16 Connecting rod & cap installation.:

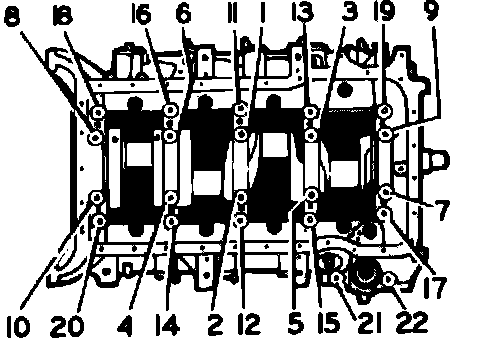

Fig. 17 Crankshaft tightening sequence.:

Narrow side of connecting rod and cap face adjacent connecting rod. Wide side faces crankshaft counterweight, Figs. 15 and 16. Torque crankshaft lower section attaching bolts in sequence shown in Fig. 17.
