Transmission and Drivetrain: Application and ID

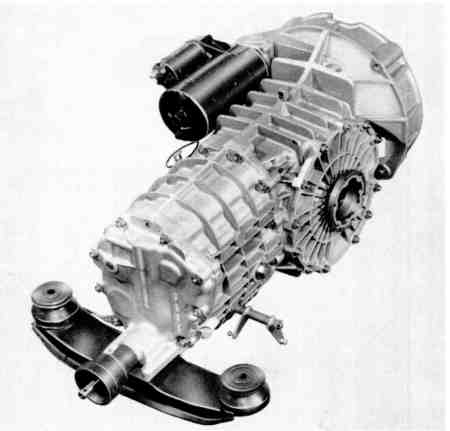

Type 930 Transmission:





The following transmissions are installed in the 930 Turbo:
- 930/30 - 4-speed with rear axle final drive 9/38 (standard)
- 930/32 - 4-speed with rear axle final drive 9/36 (not for USA)

The following transmission is installed from 1977 Models:
- 930/33 - 4-speed with a final drive ratio of 9/38

From 1978 Models with the following transmission:
- 930/34 - 4 gears with final drive ratio of 9/38
