Coordinates A11 to P20

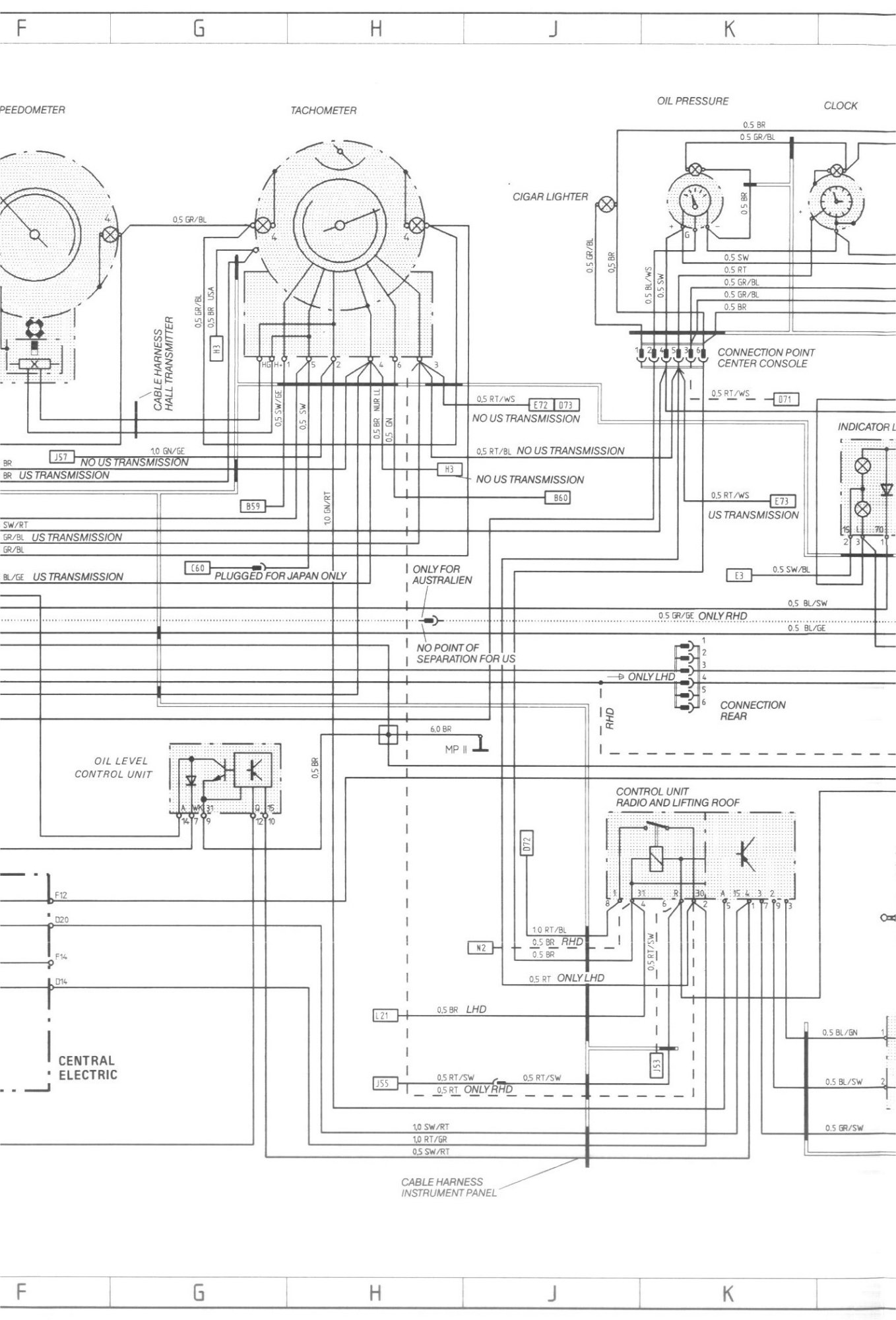

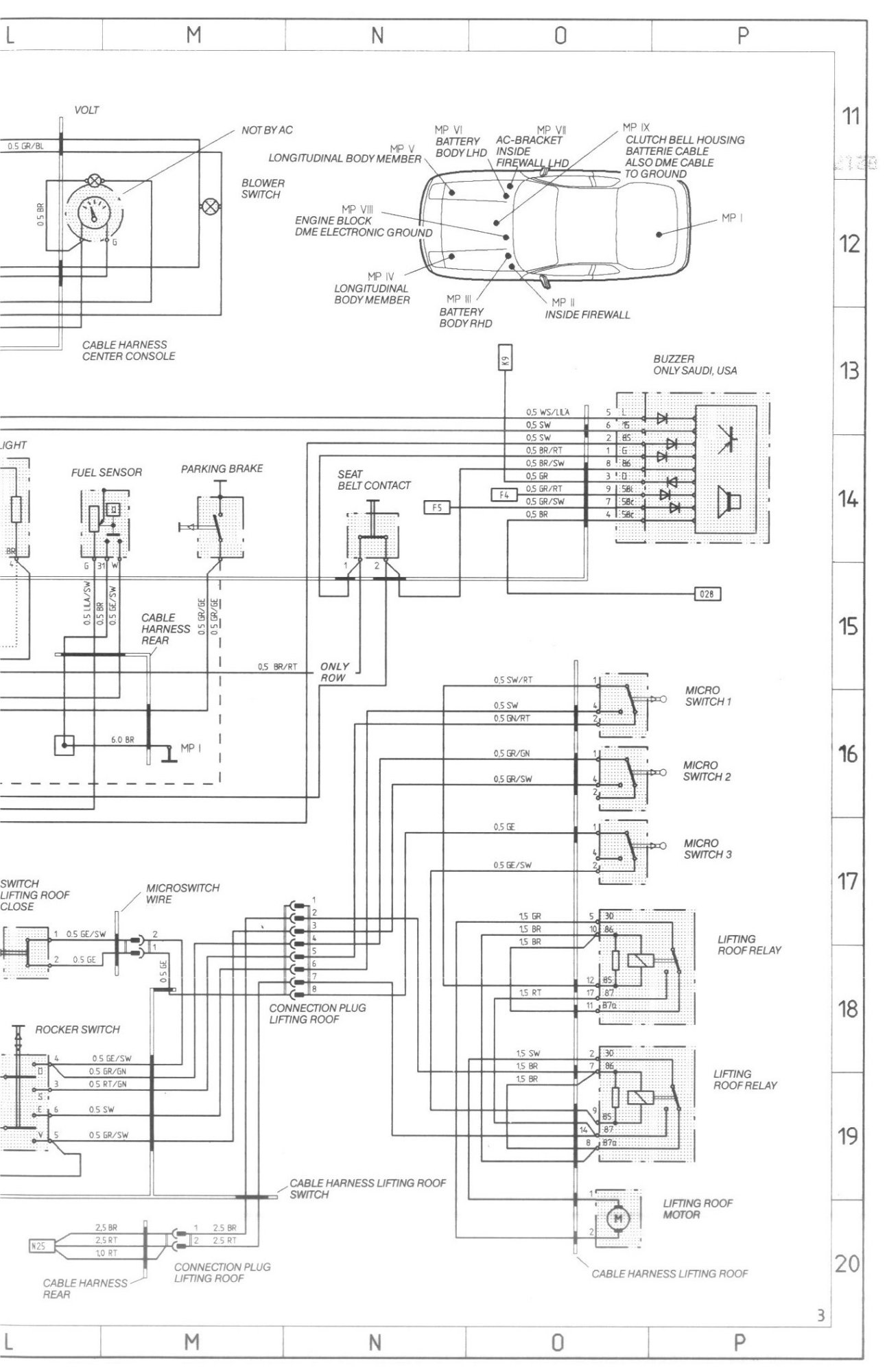

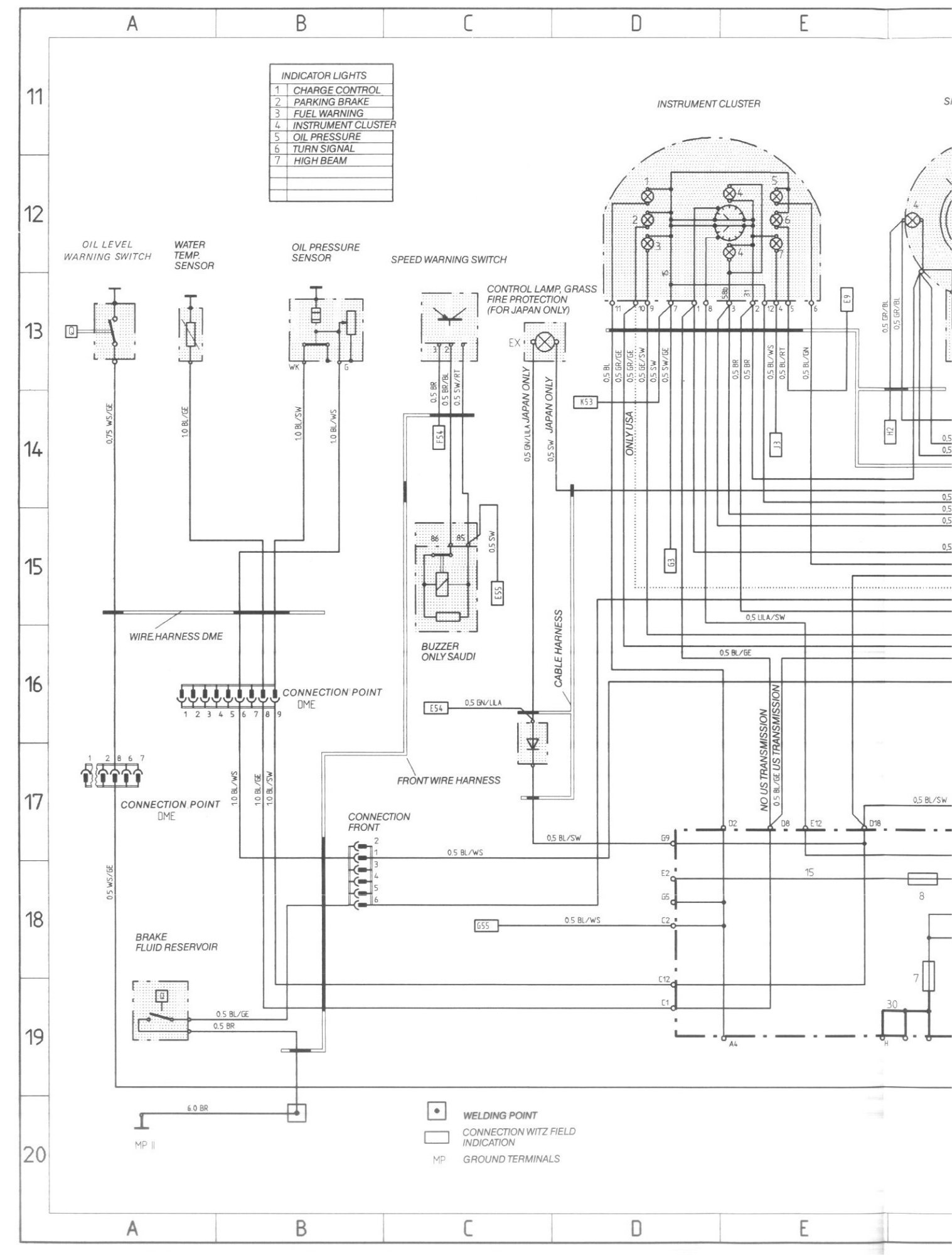

Current flow diagram: Instrument cluster, sensors, titling roof

1 Of 3:

2 Of 3:

3 Of 3:

SW = BLACK
WS = WHITE
RT = RED
GN = GREEN
GE = YELLOW
GR = GREY
BR = BROWN
BL = BLUE
LI = VIOLET

MP = GROUND TERMINALS
