System Specifications

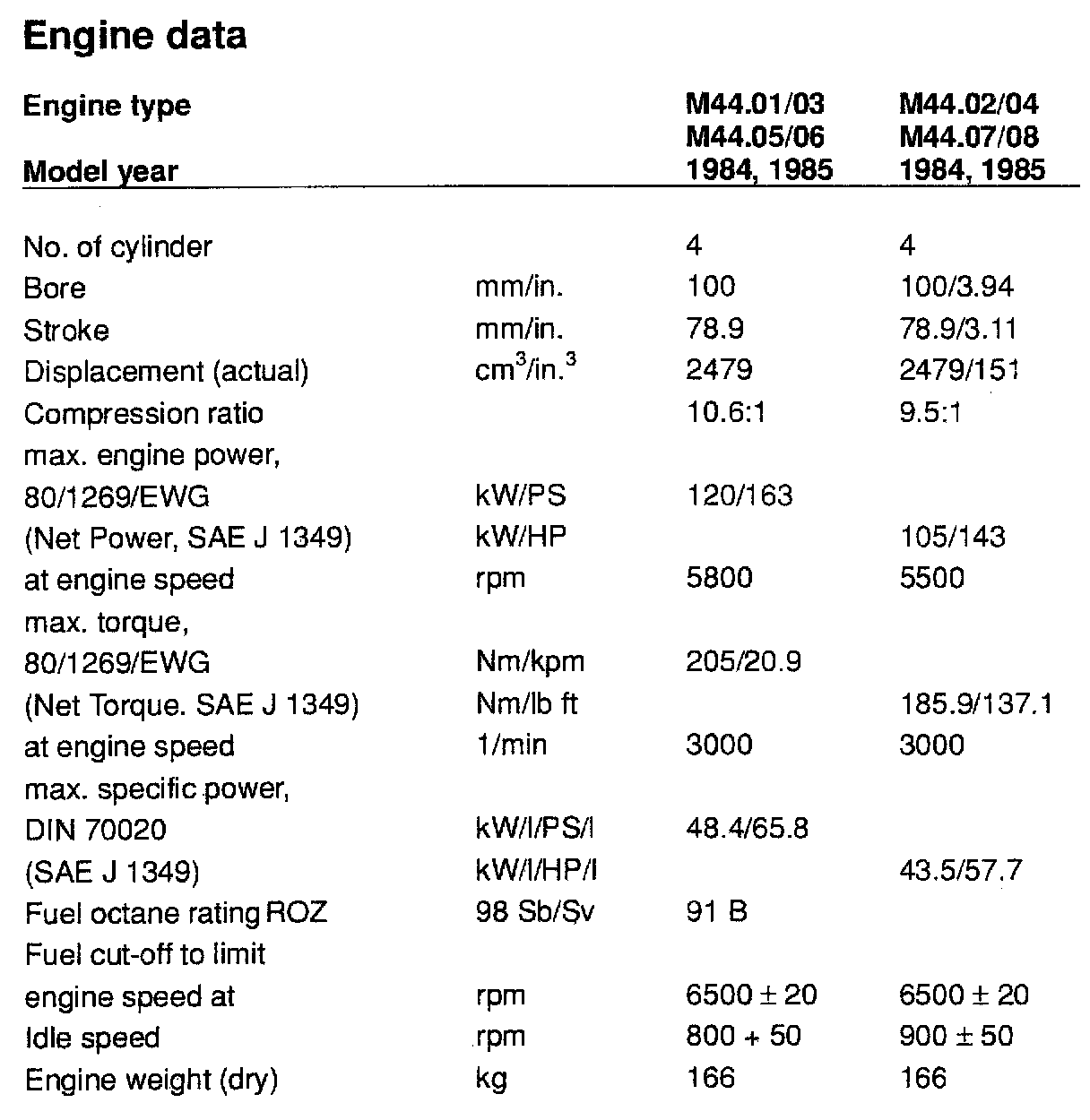

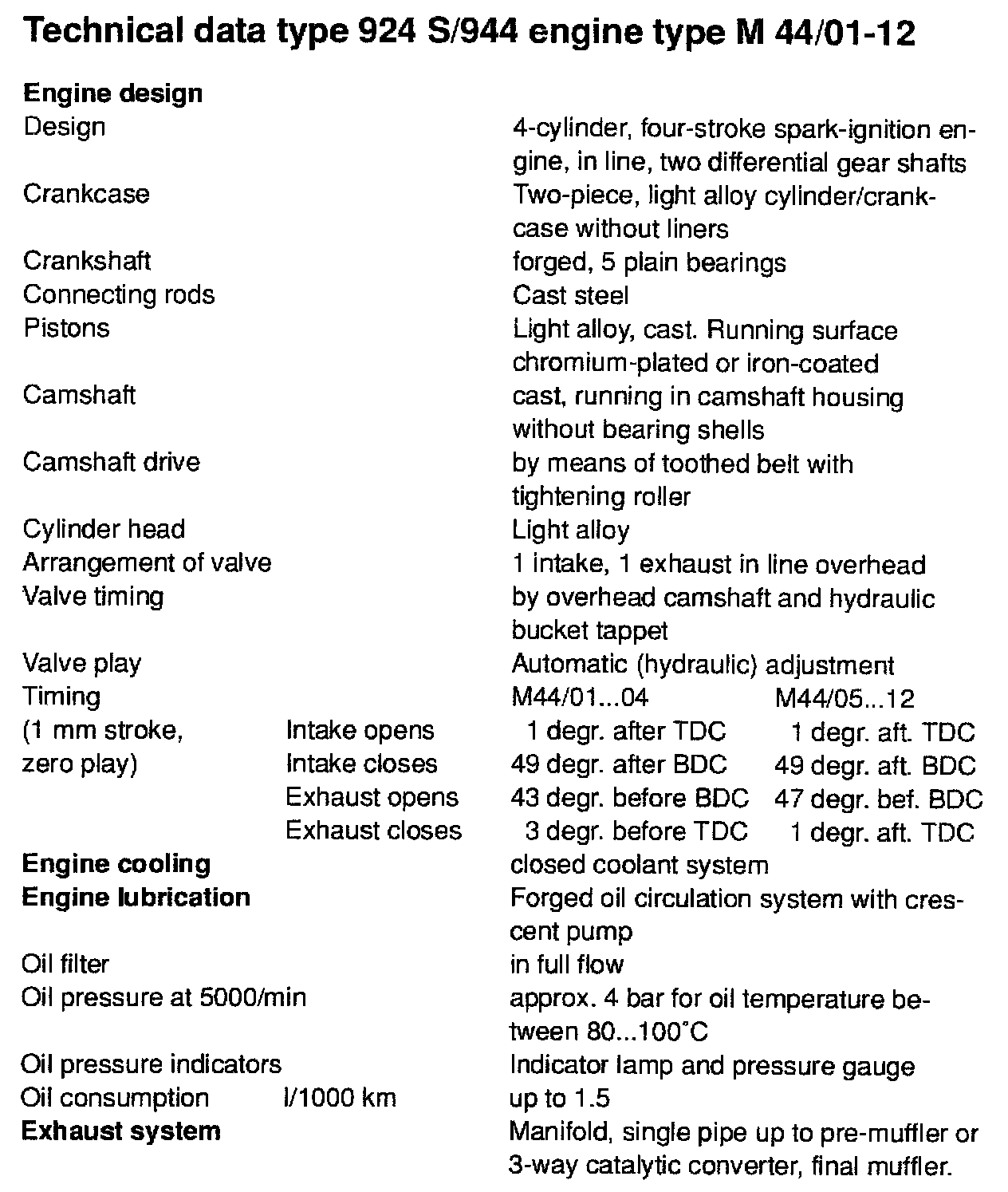

GENERAL SPECIFICATIONS

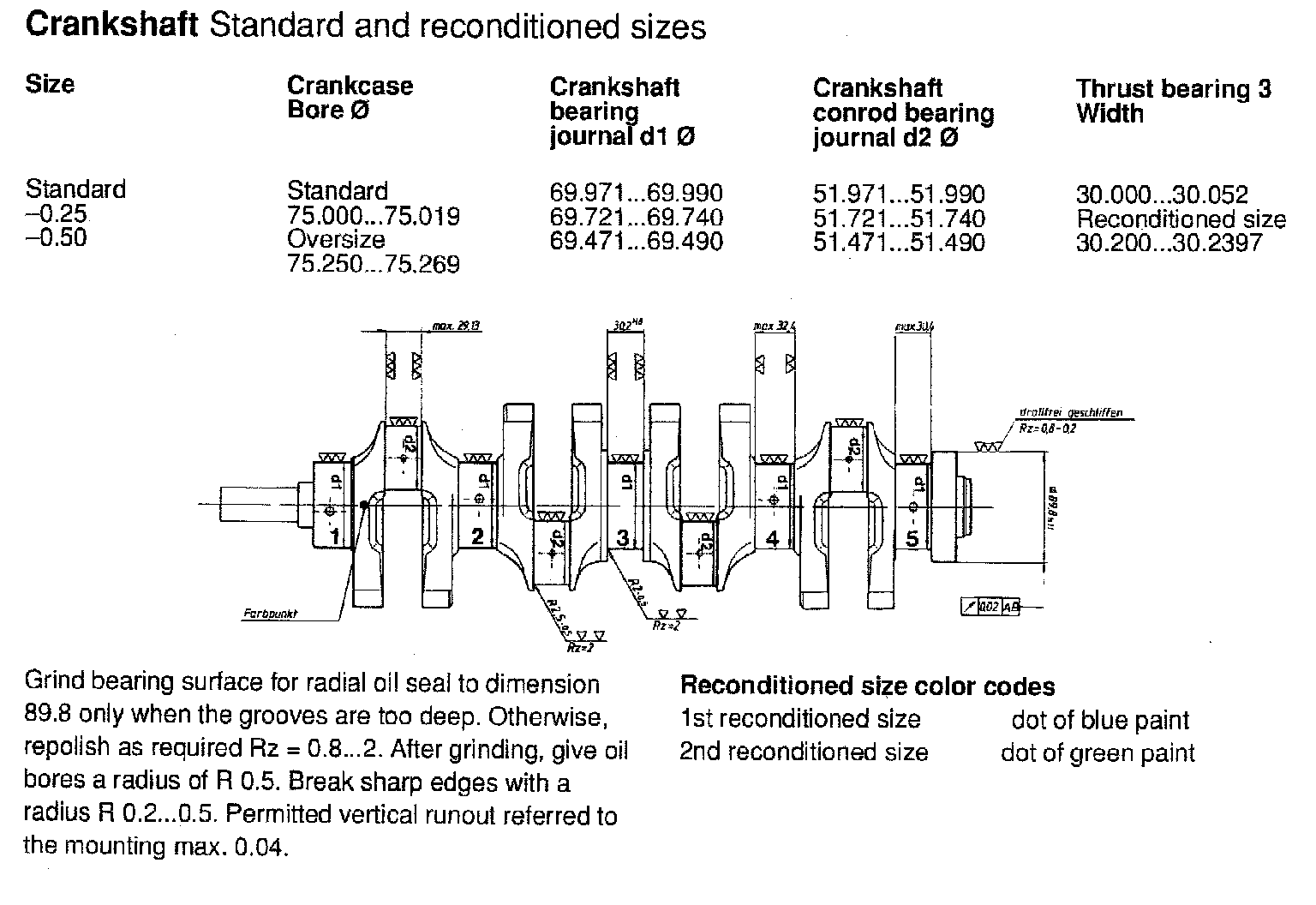

CRANKSHAFT SPECIFICATION

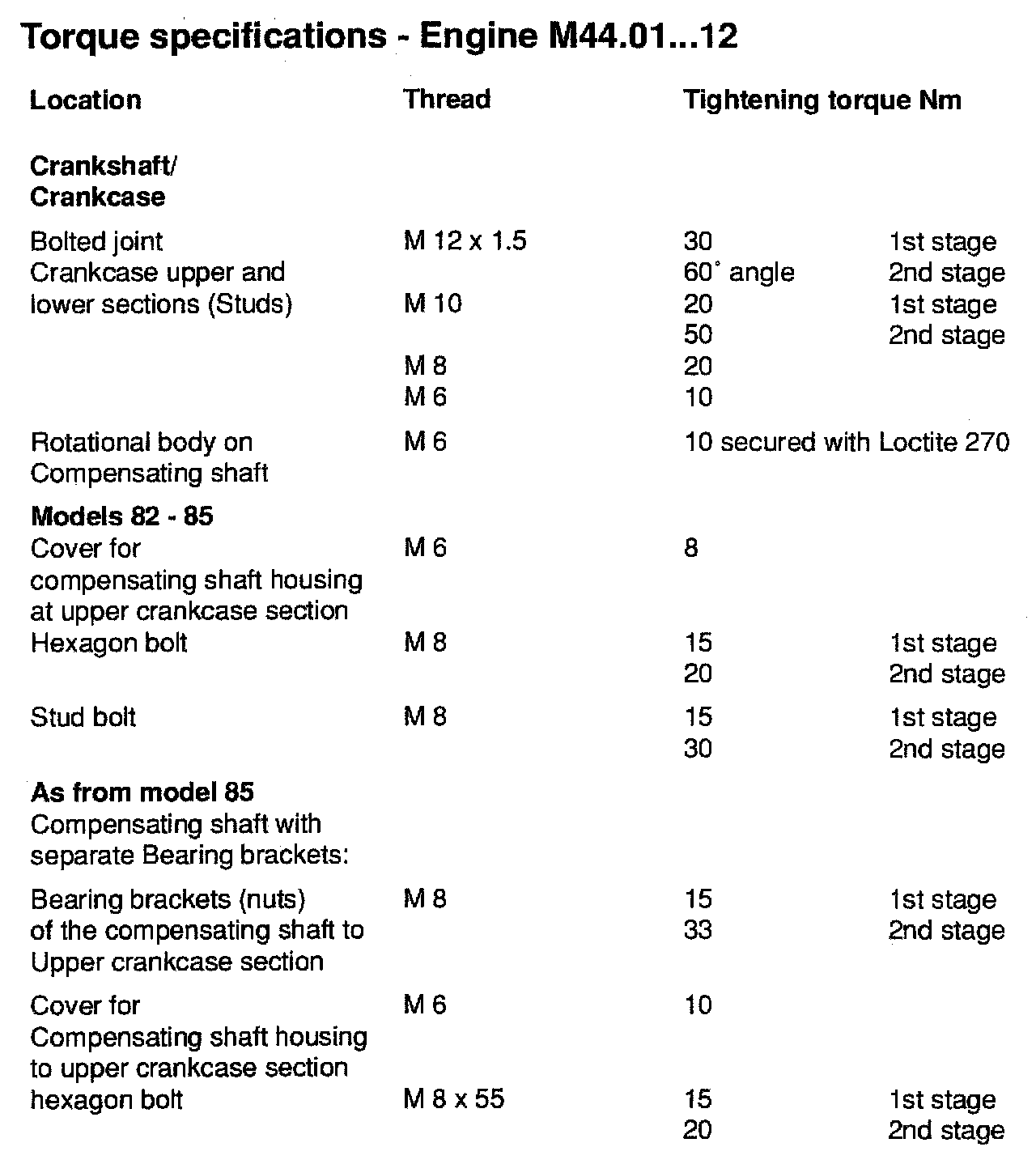

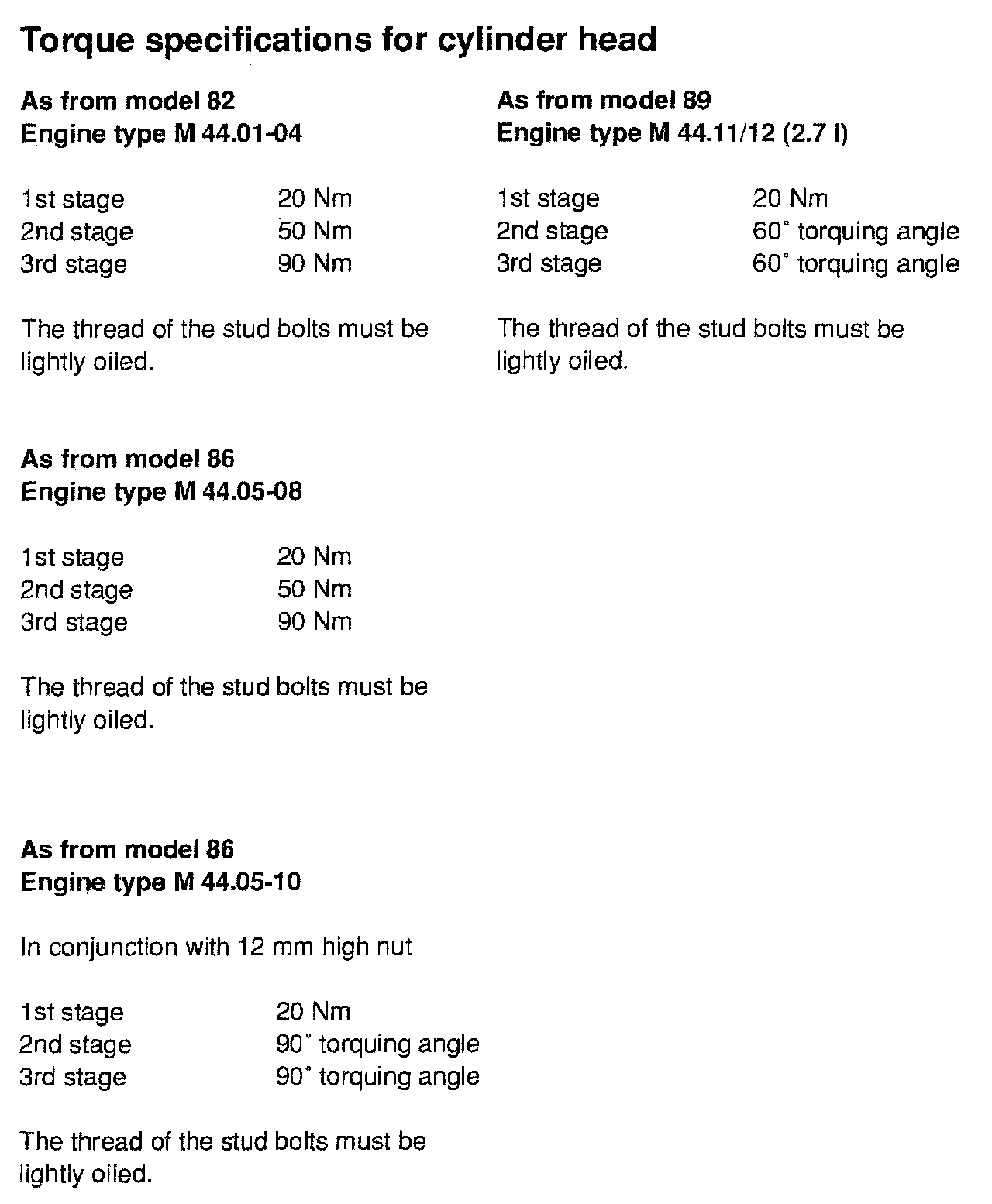

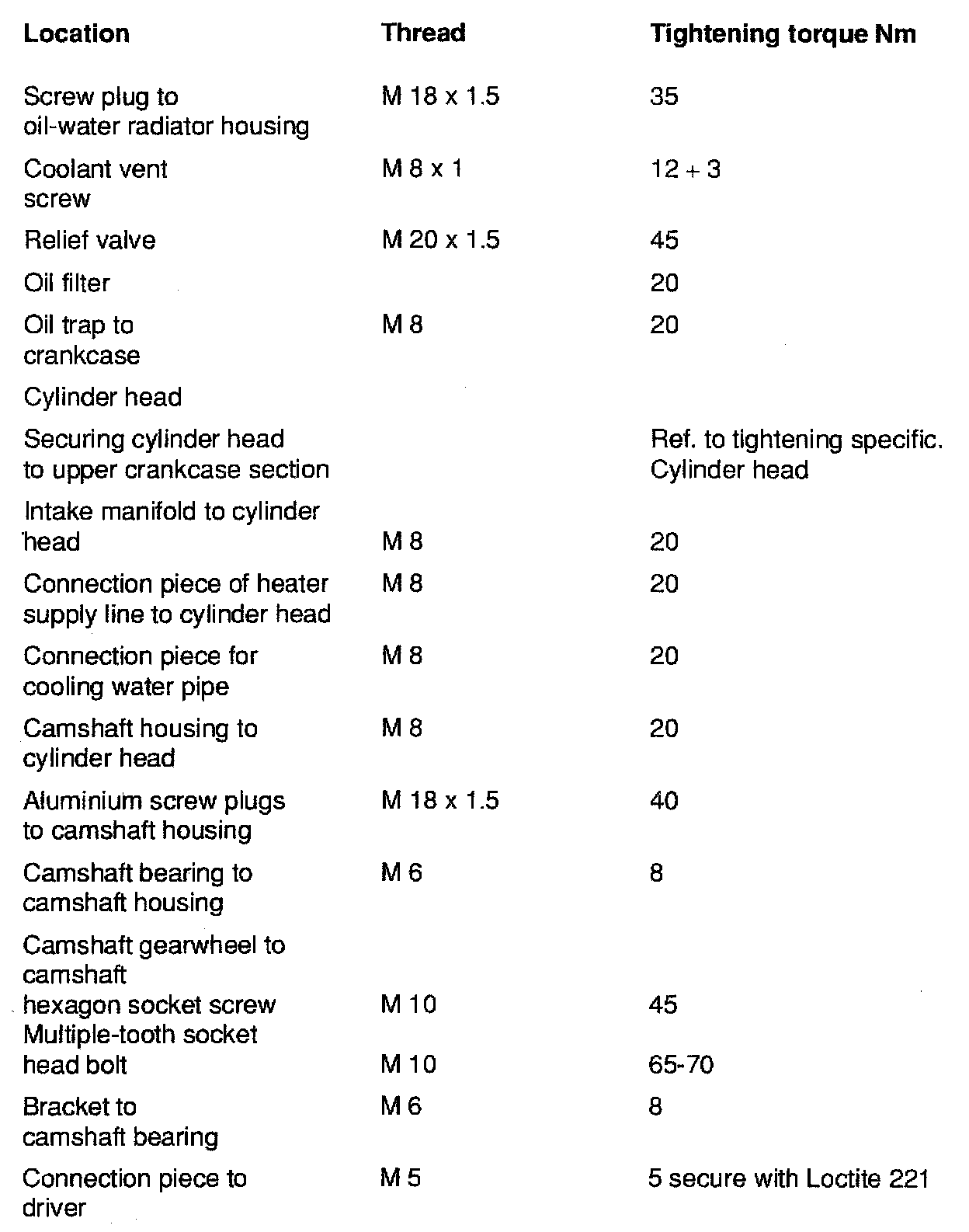

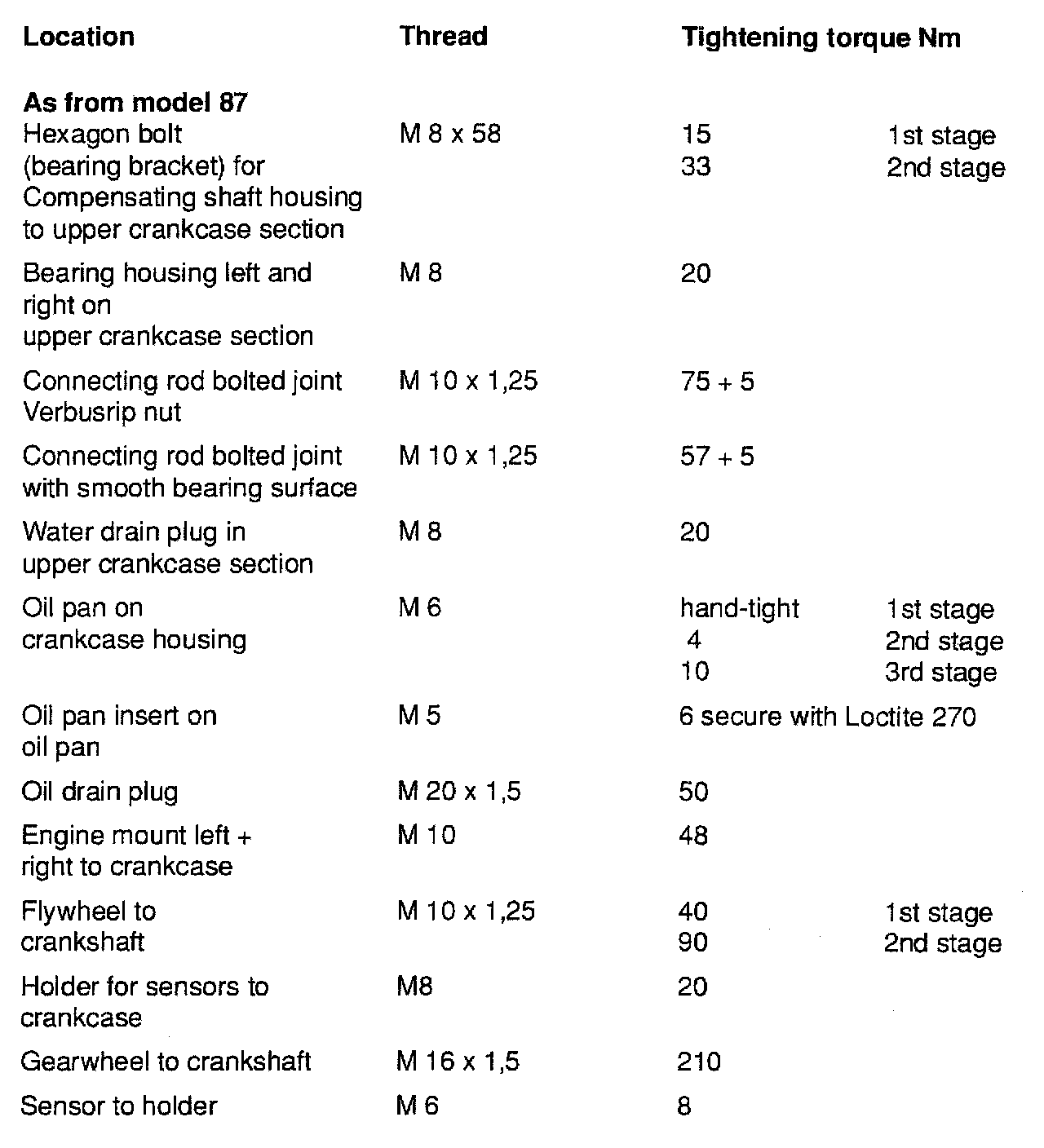

TIGHTENING SPECIFICATIONS

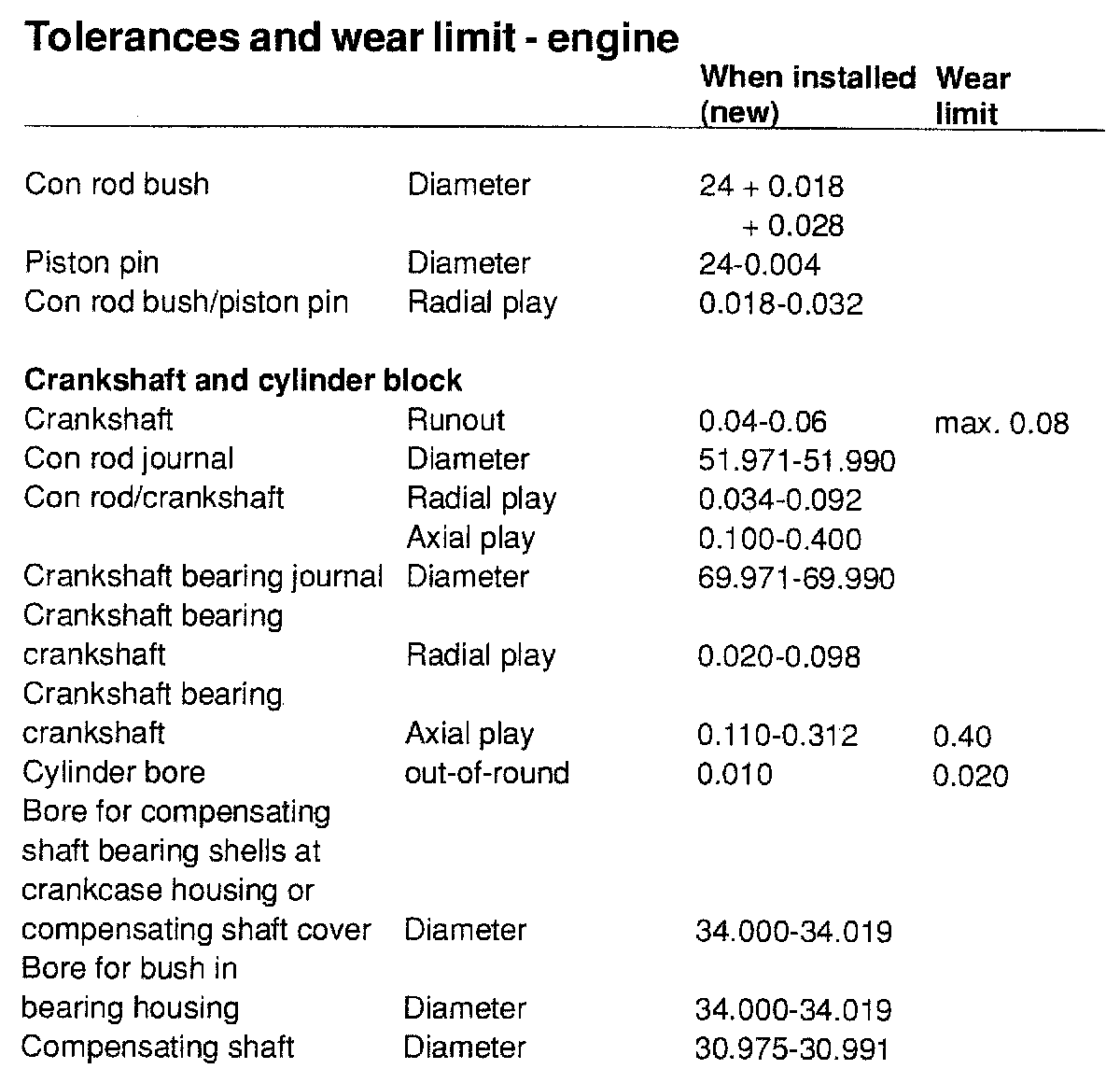

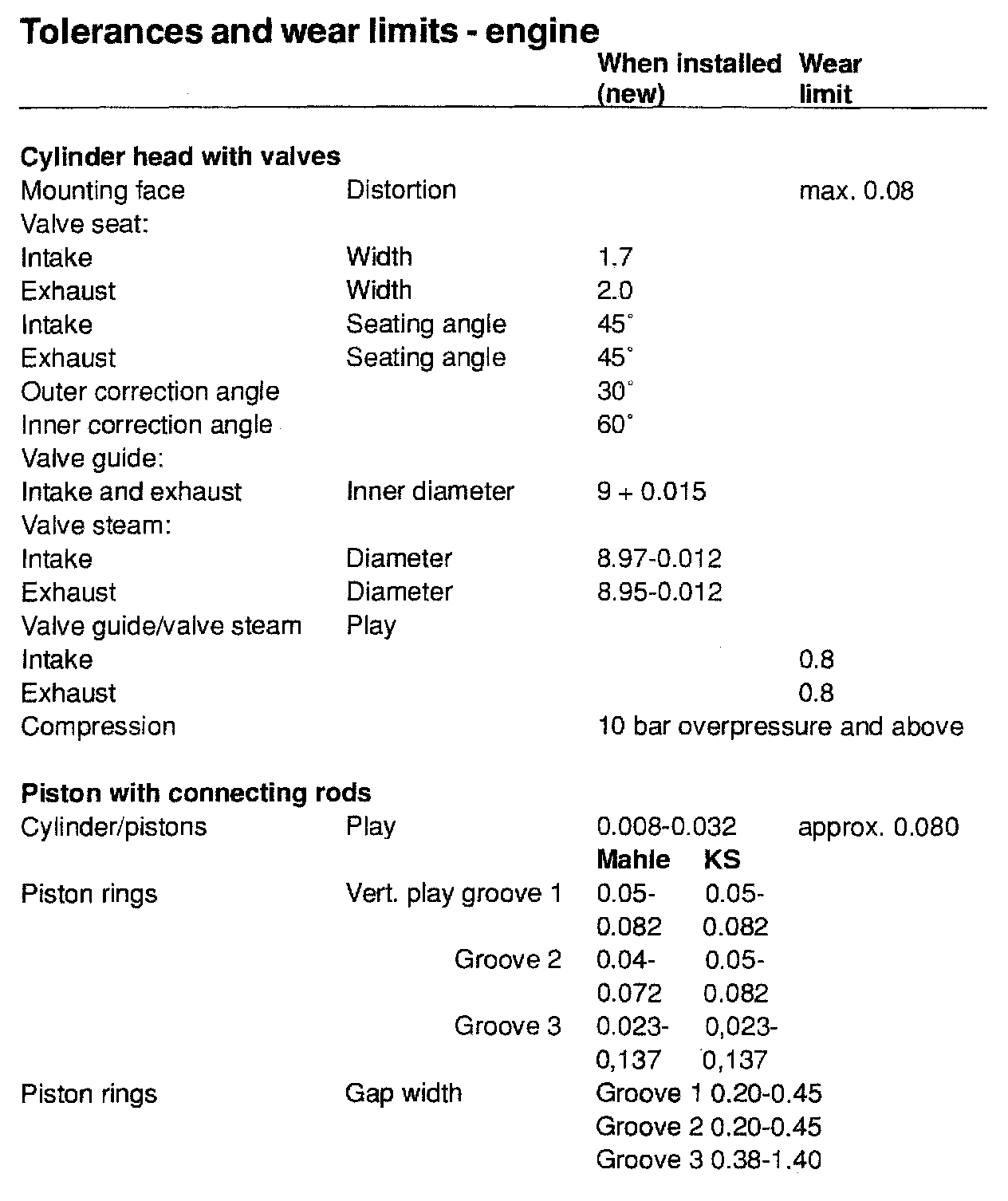

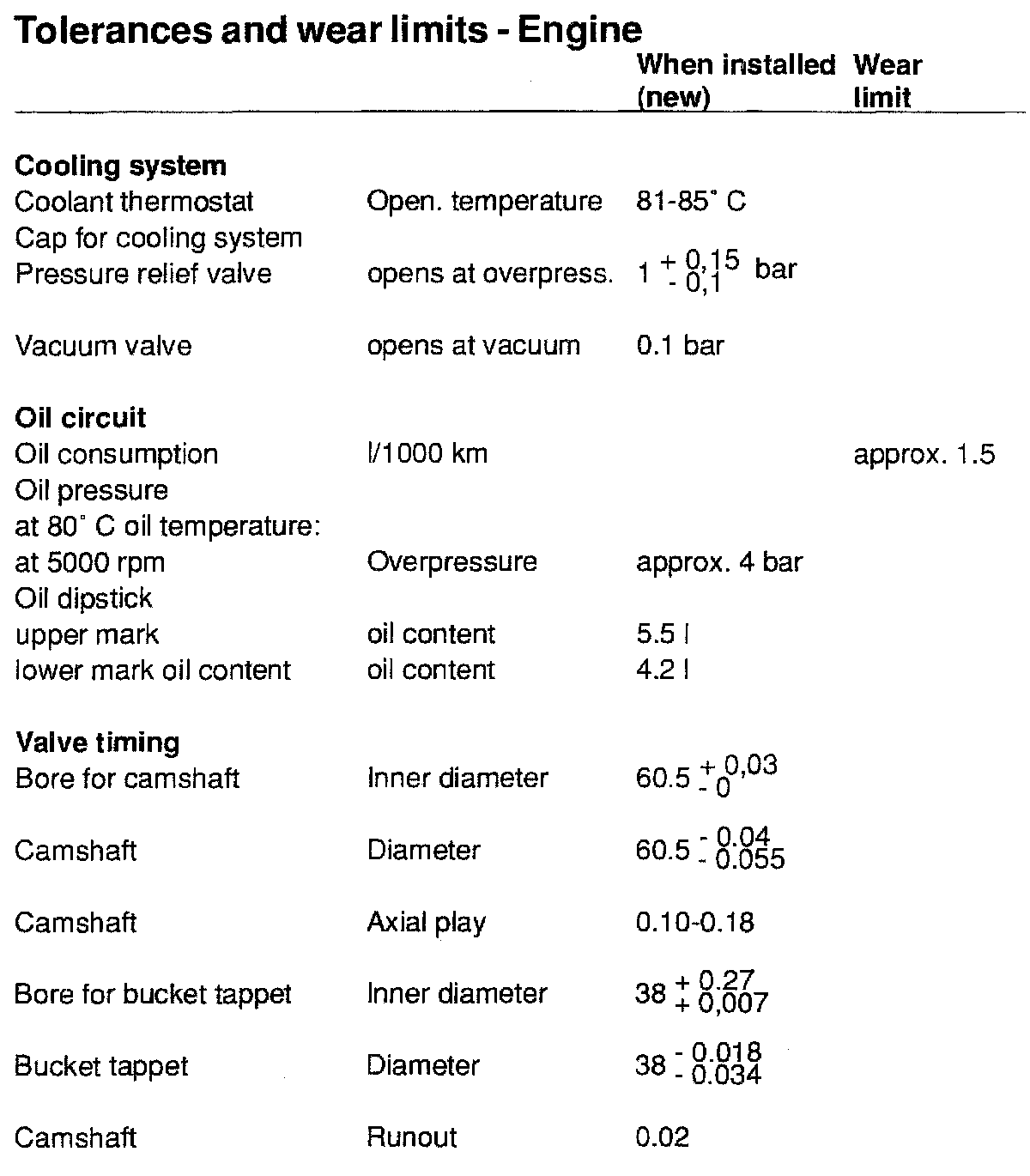

TOLERANCES AND WEAR SPECIFICATIONS

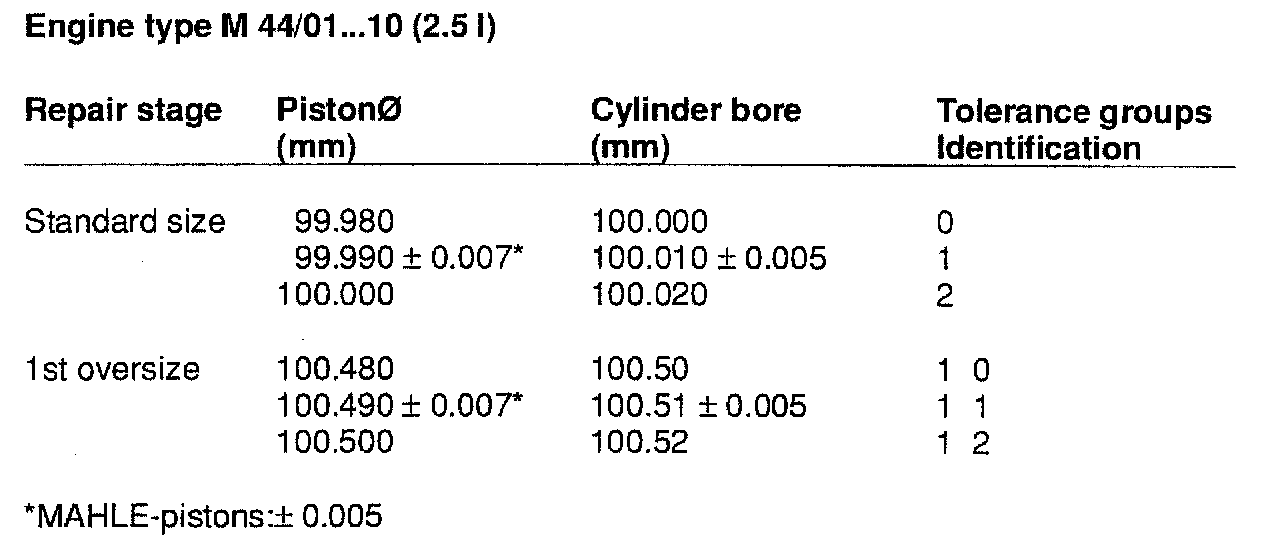

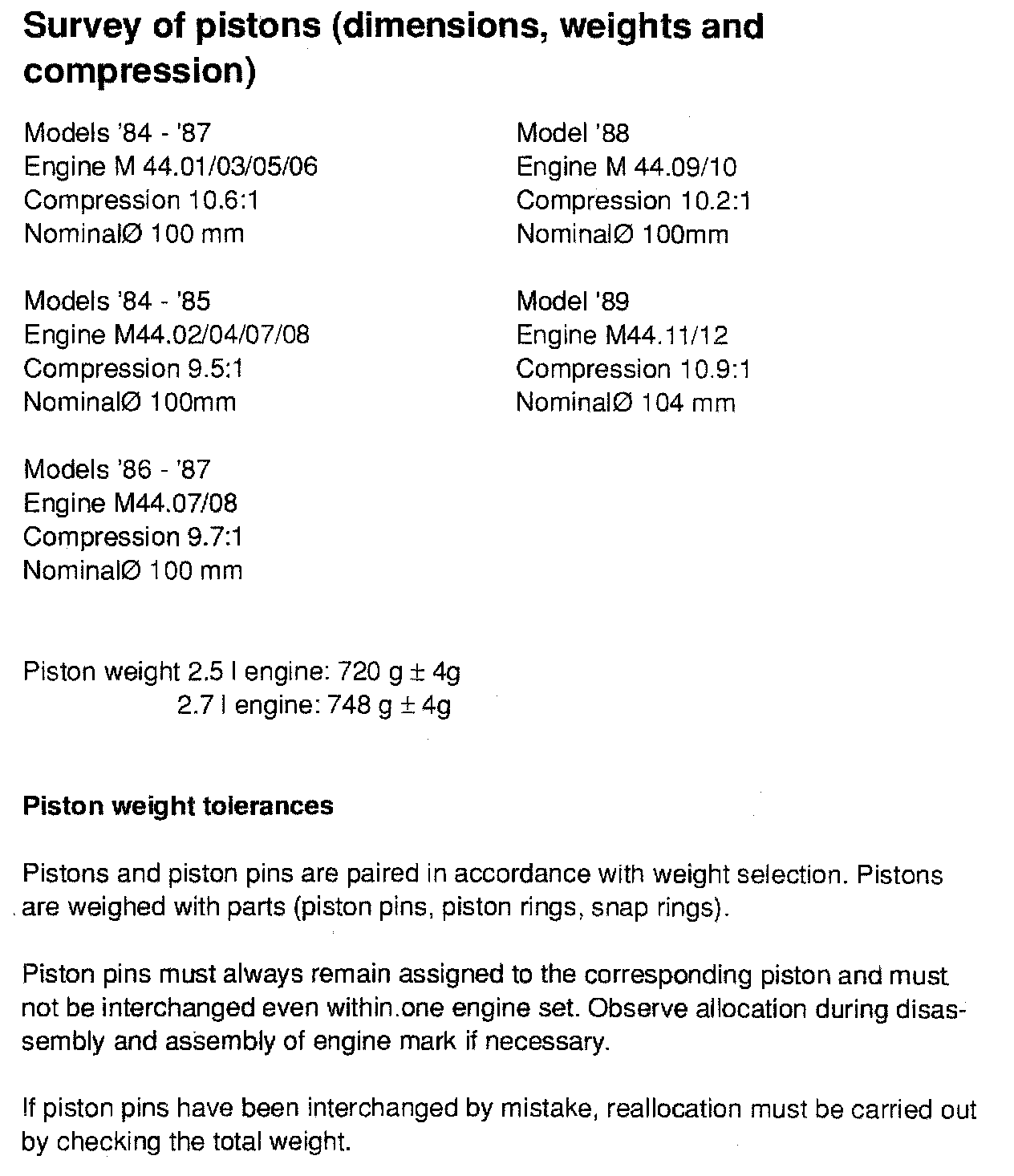

PISTON SPECIFICATIONS

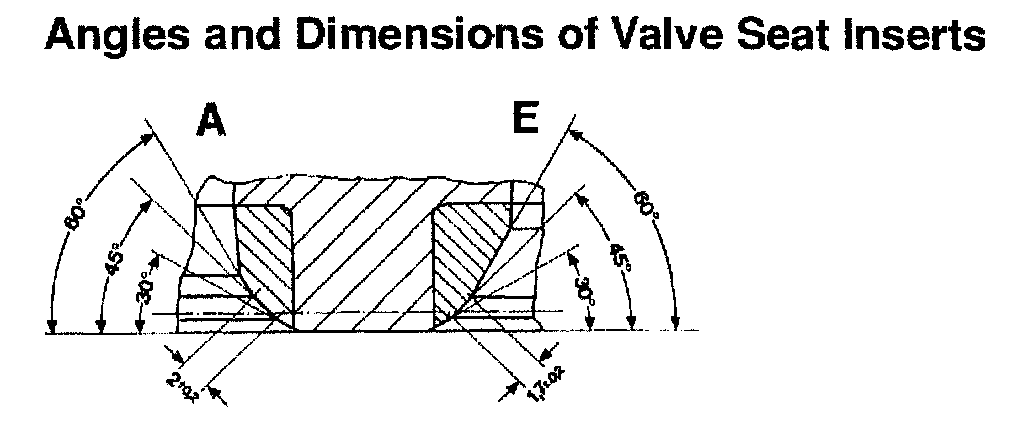

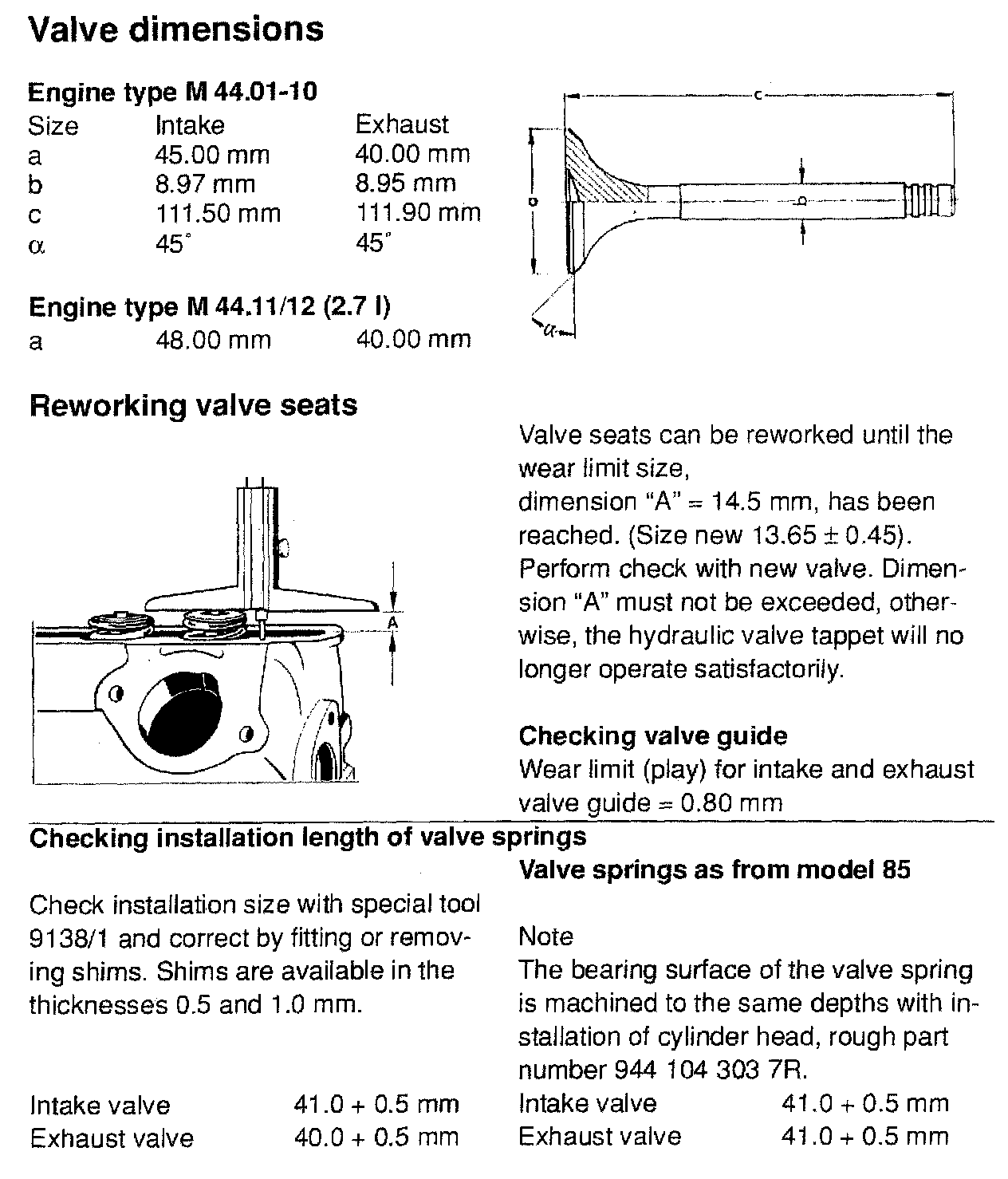

VALVE SPECIFICATIONS
