Administrative Procedure
ADMINISTRATIVE PROCEDURERecall K01
Replacement of Heat Shield for Catalytic Converter
Warranty Claims should be submitted via DCS
Replacement of heat shield for 1985 through 1987 vehicles with manual transmission, and 1985 and shown, 1986 vehicles with automatic transmission; see work procedure for details.
Damage Code: AK01 99 K012
Labor Operation: 2601 19 01
Time Units: 120
Part Number: 928 504 991 00
Warranty Parts $: 83.39

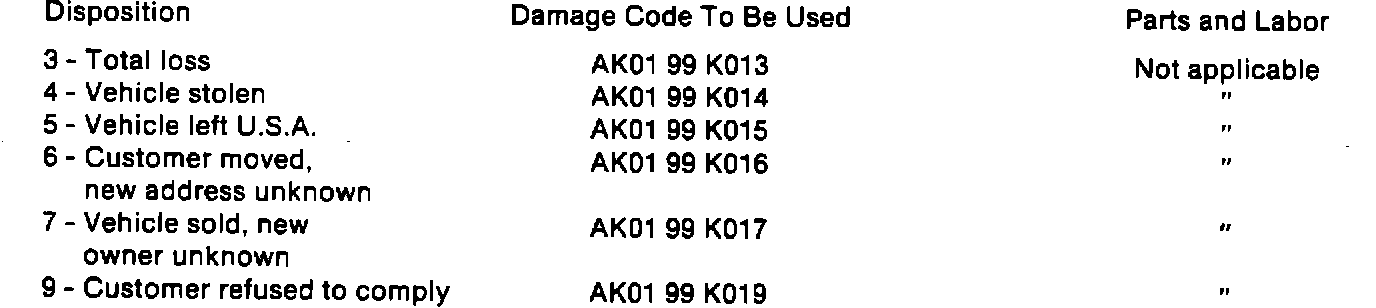

In cases where the Recall cannot be performed, submit the information on a claim via DCS with the appropriate disposition code by inserting the code in at the last digit of the damage code.
Owner Name and Address Change
If owner name and address is shown incorrectly, submit correction using name/address change postcard from the Warranty and Maintenance Booklet or Recall mailing, or report to PCNA via DCS to USPCWARRANTY including VIN.
ADMINISTRATIVE PROCEDURE
Recall K01
Replacement of Heat Shield Kit for Catalytic Converter
Warranty Claims should be submitted via DCS

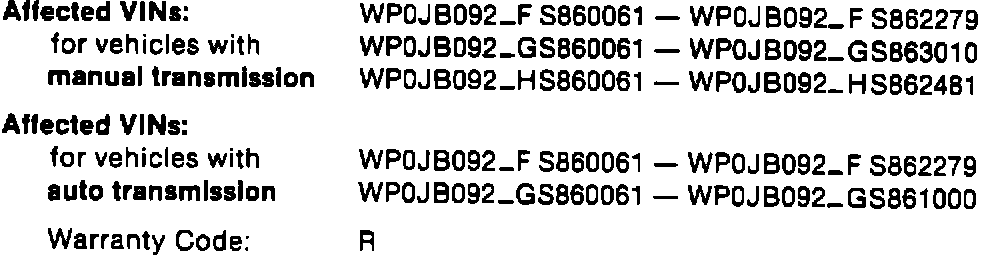

Affected VINs:
for vehicles with auto transmisssion:
WP0JB092_GS861001 - WP0JBO92_GS863010
WP0JBO92_HS860061 - WP0JBO92_HS862481
Warranty Code: R
Replacement of heat shield kit for shown 1986 and 1987 vehicles with automatic transmission; see work procedure for details.
Damage Code: AK01 99 K012
Labor Operation: 2601 19 02
Time Units: 190
Part Number: 000 043 125 00
Warranty Parts $: 96.47
In cases where the Recall cannot be performed, submit the information on a claim via DCS with the appropriate disposition code by inserting the code in at the last digit of the damage code.
Owner Name and Address Change
If owner name and address is shown incorrectly, submit correction using name/address change postcard from the Warranty and Maintenance Booklet or Recall mailing, or report to PCNA via DCS to USPCWARRANTY including VIN.
