Engine: Tools and Equipment

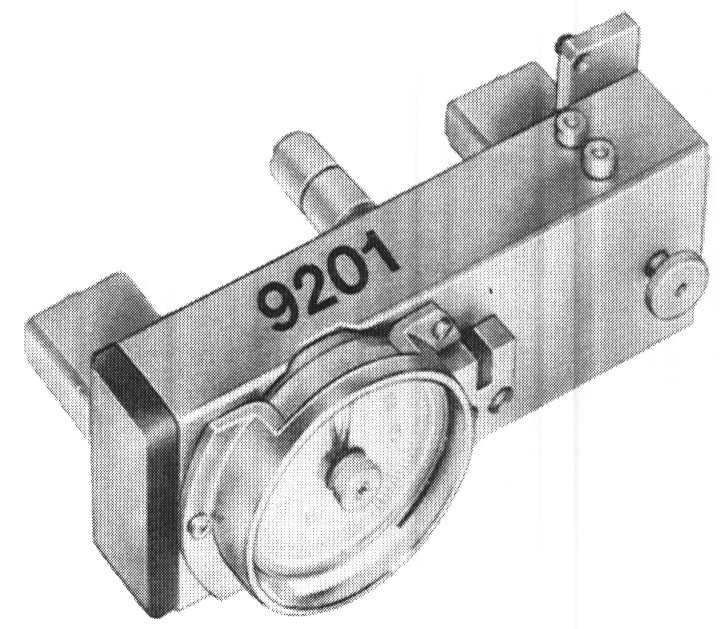

9201 Tester for belt tension

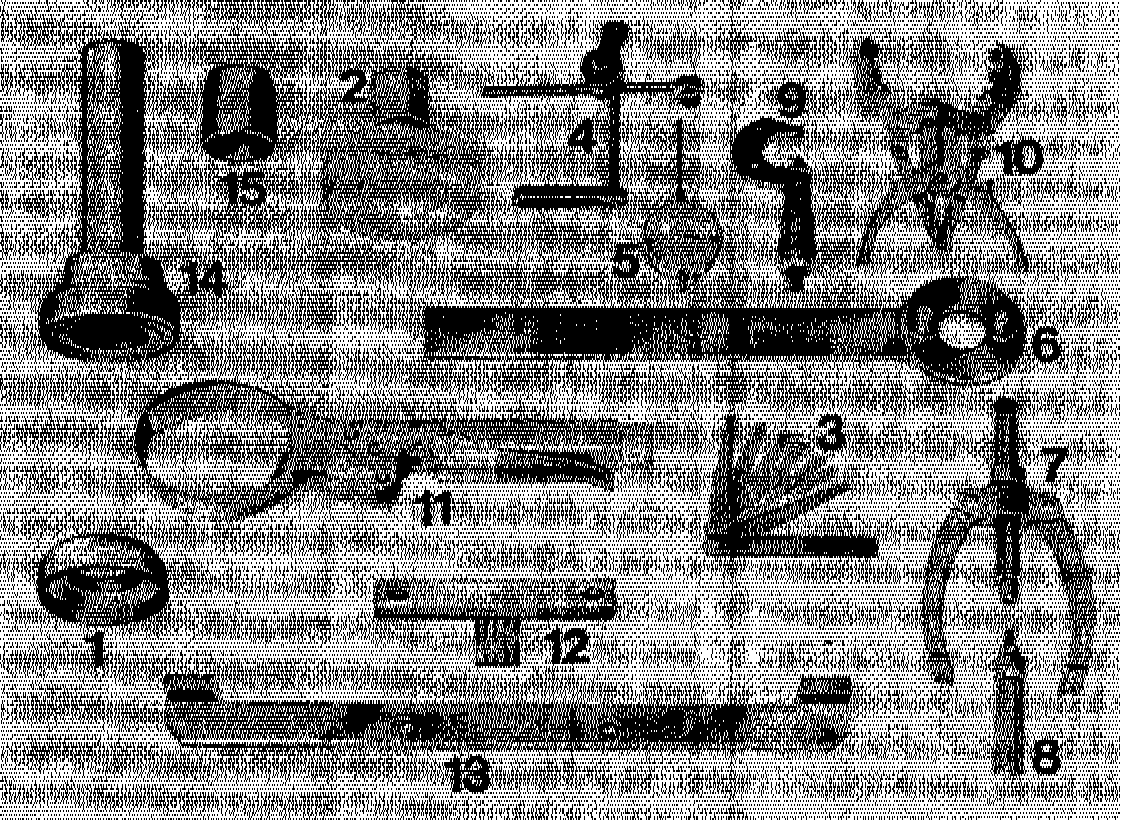

1 9203 Assembly sleeve
2 9126 Pressure pad for crankshaft seal on flywheel end
3 Feeler gauge (standard tool)
4 VW 387 Dial gauge holder
5 US 1026 Dial gauge (standard tool)
6 9200 Holding wrench 9200
7 US 1039 Support (standard tool, e.g. Kukko)
8 US 8028 Internal claw puller (standard tool, e.g. Kukko No.2 1/2) (14.5 to 18.5 mm)
9 US 1025 Micrometer (standard tool)
10 VW 121 b Piston ring pliers (standard tool, e.g. Hazet 790-1 a)
11 US 1008 a Piston ring compressor (standard tool,e.g. Hazet 794-U-3)
12 9206 Locking element
13 9130 Flywheel holder
14 9202 Pressure pad
15 32-111 Pipe




9210 Thrust pad - To install bearing sleeve for balance shaft bearing housing

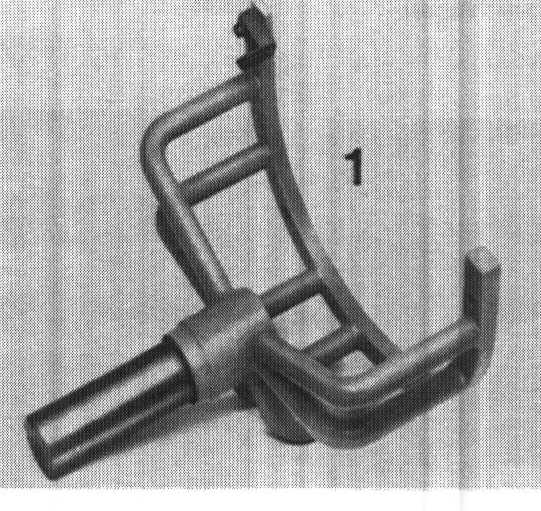

9127 Engine support

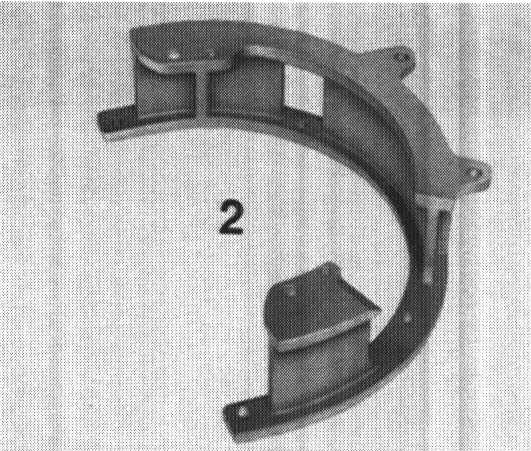

9197 Engine support adapter




US 1105 Chain Sling
