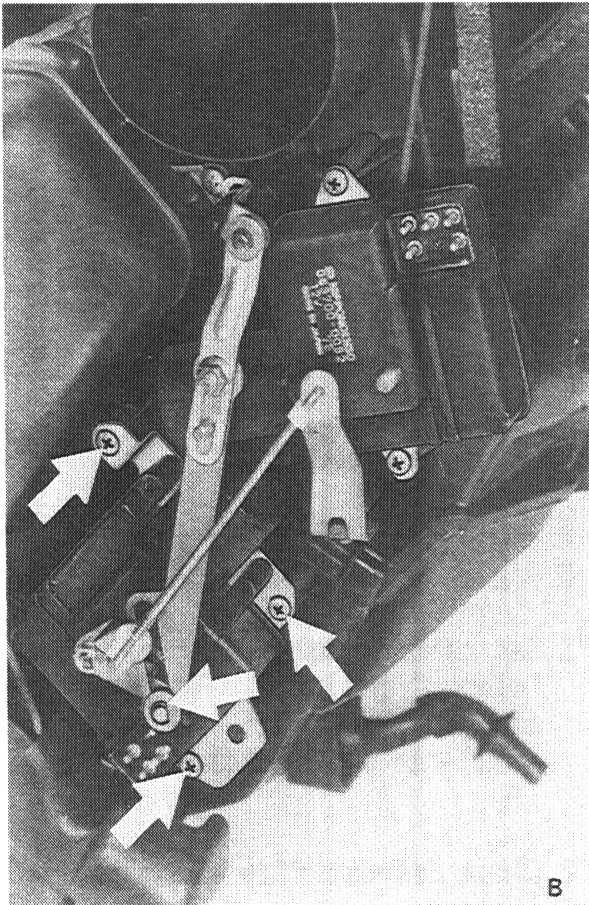

Temperature-Mixing Flap and Baffle Flap

1. Unclip temperature-mixing flap linkage.




2. In order to disconnect the linkage of the baffle flap, remove retaining ring, plastic washer, and shaft ring.

3. Unscrew fastening screw.

Adusting the Temperature-Mixture Flap and Baffle Flap





1. Set the control motors to the final "cool" position. To do this, connect pin 4 with + and pin 5 with - of a voltage source of 12 V.

2. Press temperature-mixing flap lever upward until the flap is at the stop. Clip on the linkage in this position.

3. Loosen nut M5 on baffle flap linkage.

4. Press together the two linkage halves and tighten nut M5.
