Heating and Air Conditioning: Tools and Equipment

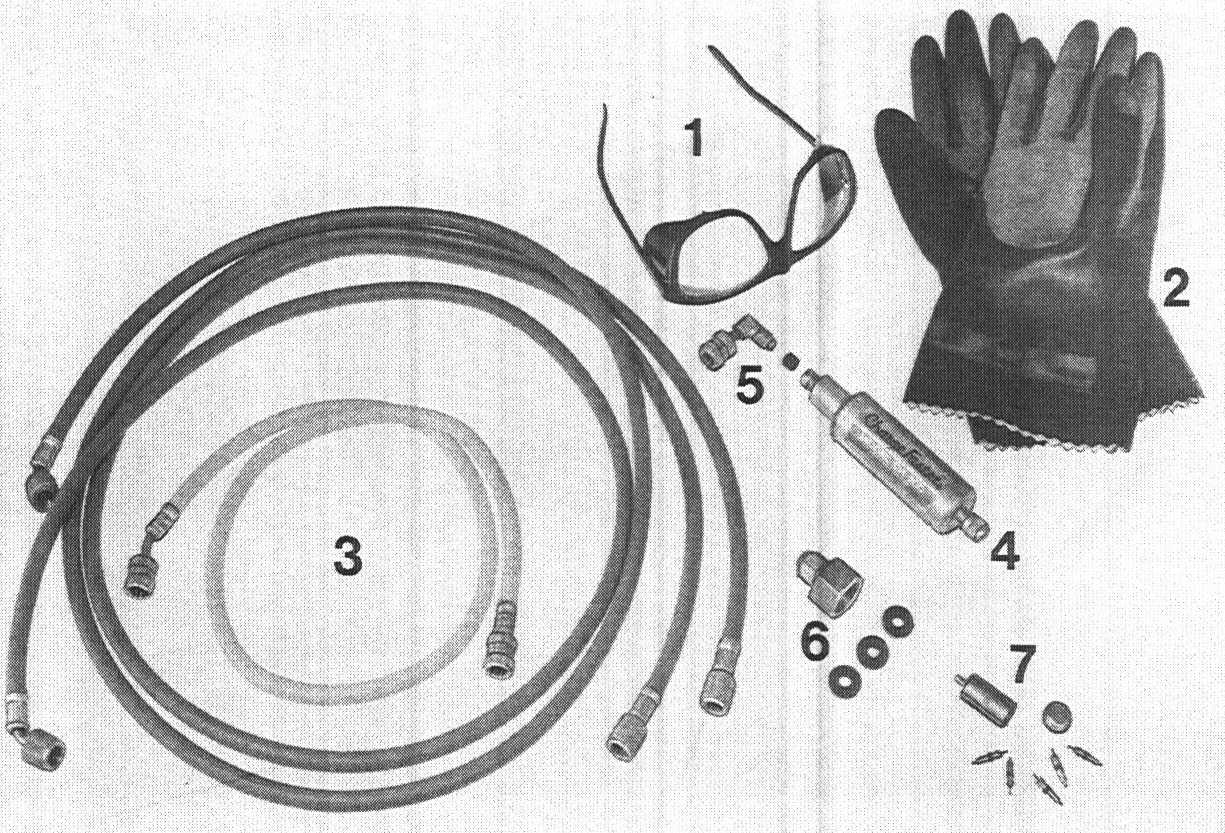

1 Protective goggles - Commercially available

2 Rubber gloves - Commercially available

3 Fill hose - Commercially available
2 pcs, length 1200 mm
1 pcs, length 500 mm
Thread 7/16 Inch UNF

4 Filling aid "chargefaster" - Commercially available

5 Angle piece for filling aid with replacement seal- Commercially available

6 Flask-connection piece with replacement sealing rings - Commercially available

7 Spring valve opener with replacement spring valves - Commercially available

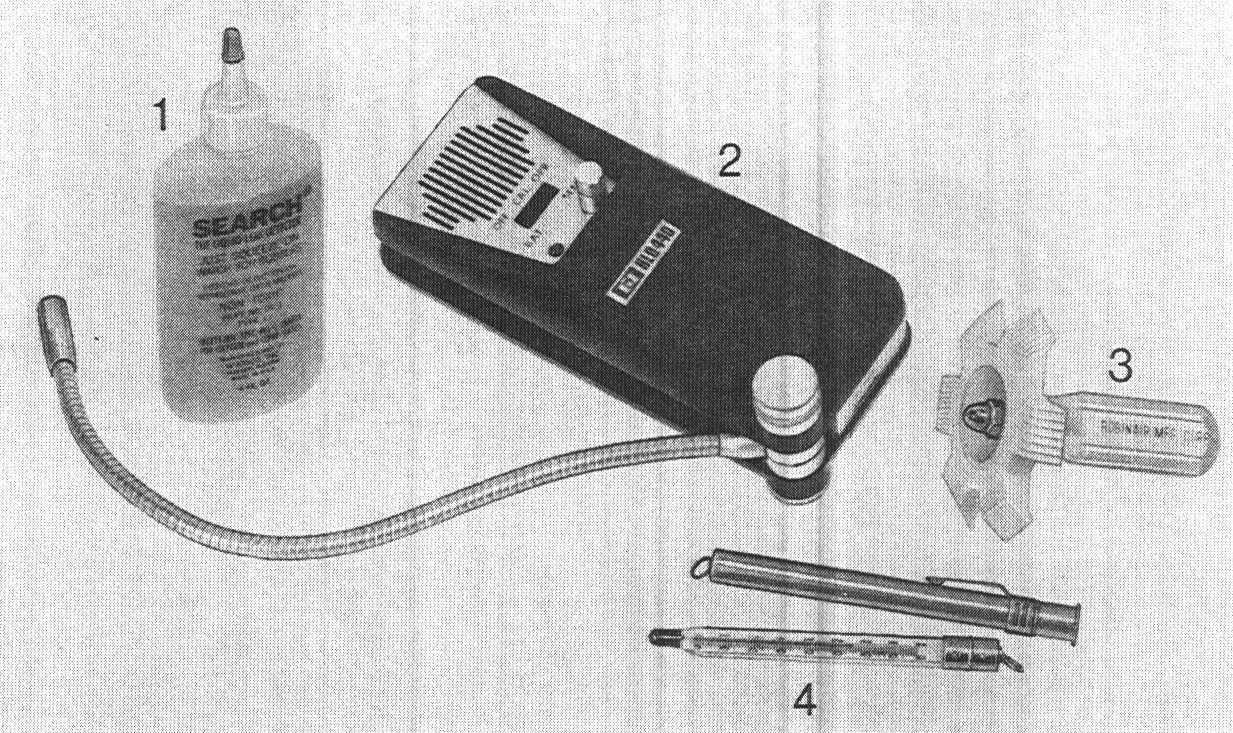

1 Leak-detector fluid - Commercially available

2 Electronic leak detector - Commercially available

3 Comb - Commercially available

4 Thermometer - Commercially available






1 Evacuating and filling unit FSV - 102 - Commercially available

2 Steel flask for refrigerant R 12 - Commercially available filling weight 14 kg


Note: All tools and devices listed can be obtained from refrigerant firms, and are required for all air-conditioning repair work necessitating work on the refrigerant system.
