Air Bag Systems: Application and ID

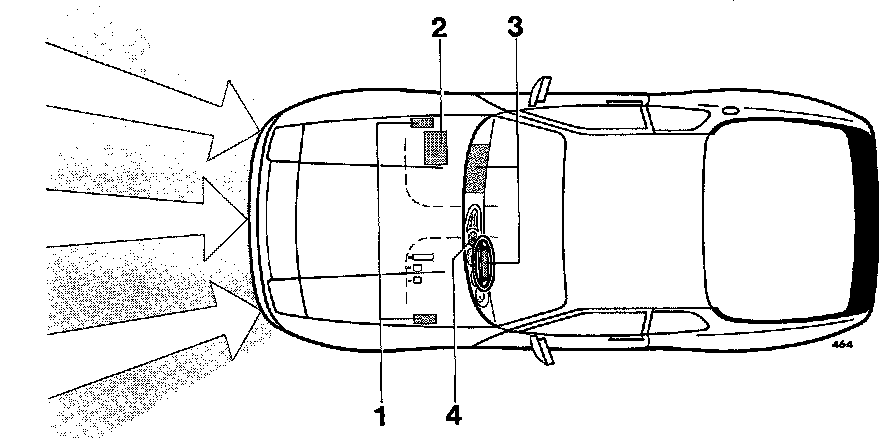

1 Front sensors
2 Control unit with safety sensor
3 Driver and front-passenger airbags
4 Indicator lamp

The airbag system is triggered only in the event of a frontal collision within the area identified by arrows.
