Installing

Installing

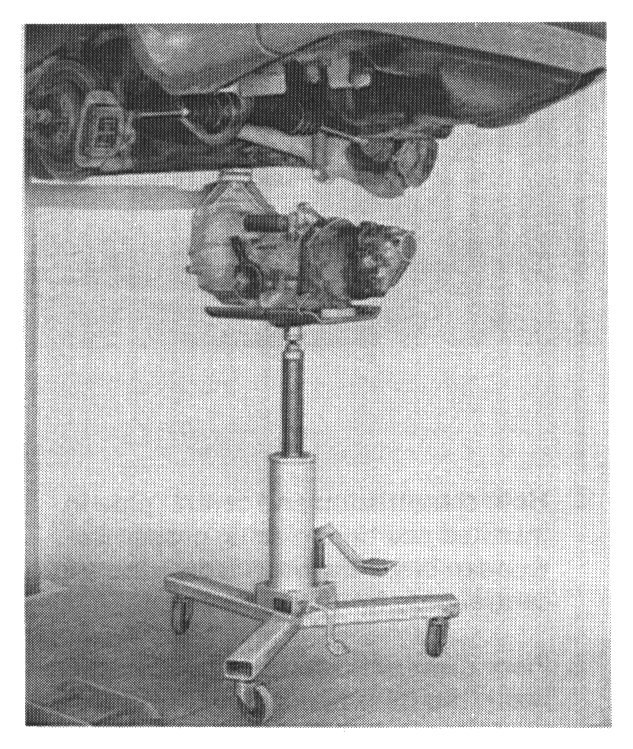

1. Install transmission with universal transmission jack.

2. Replace the shift rod protective tube when retainers are deformed excessively.

3. Place shift rod protective tube in transmission case. Run in transmission and bolt. Tighten all mounting bolts to specified torque.

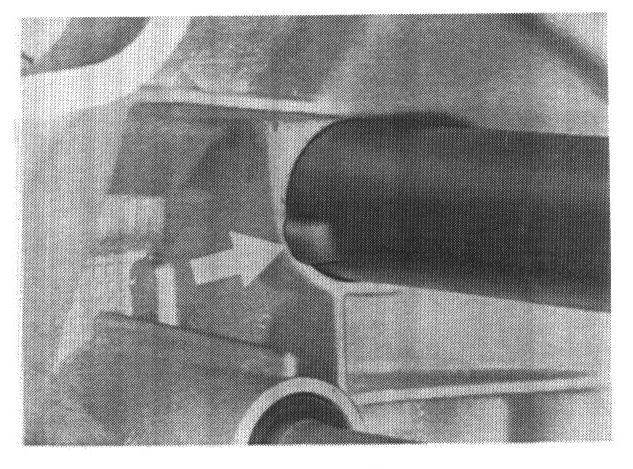

4. Push shift rod protective tube forward until retainer engages in transmission case.

5. Mount shift rod on intermediate lever and lock clamping bolt with steel wire.
