Axle Shaft Assembly: Service and Repair

Disassembling




1. Remove circlip.

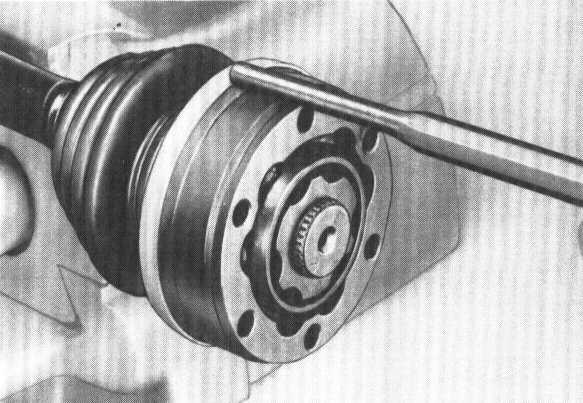

2. Knock protective cap off of constant velocity joint.

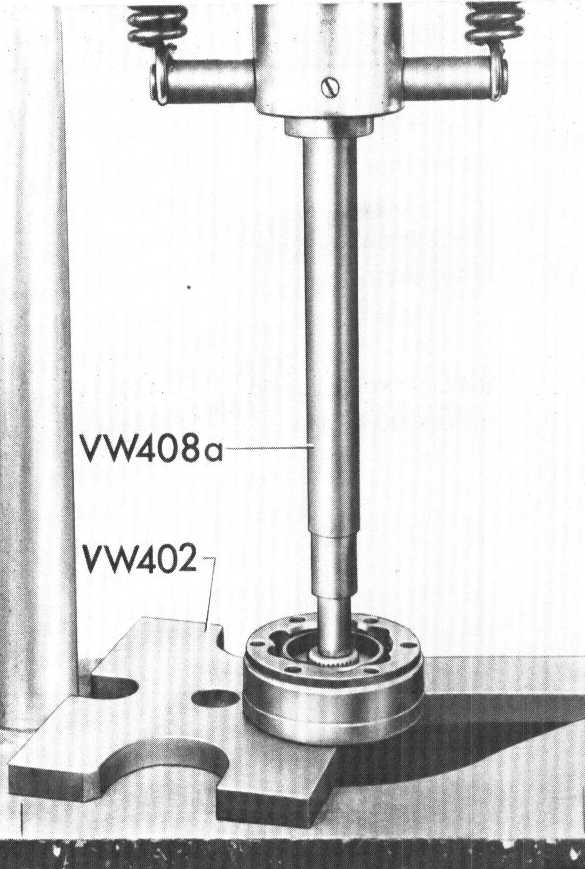

3. Press constant velocity joint off shaft.



Assembling

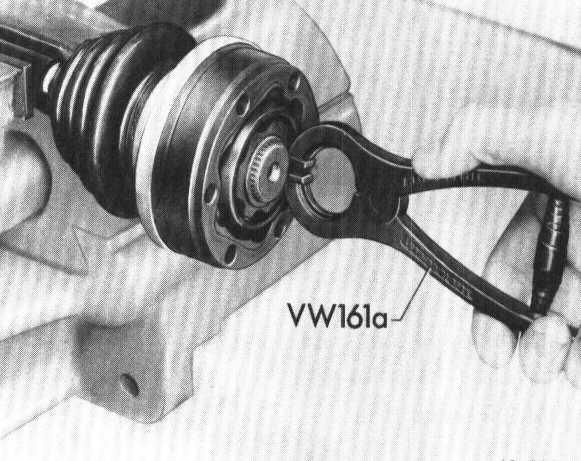

1. Press constant velocity joint on shaft, inserting the circlip in its groove at the same time. If necessary adjust circlip with special pliers.
