OPERATING PROCESS

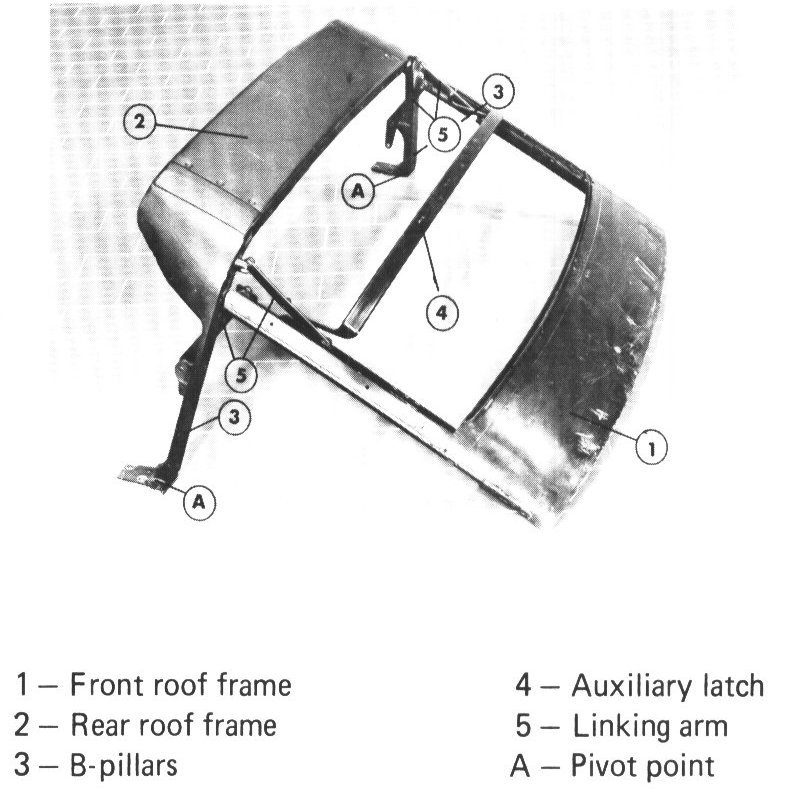

During the opening process, the entire top-frame rotates to the rear about pivot point A.

The front roof frame is folded by means of linking arms (5). When the roof is fully open, the rear roof frame is stowed behind the occasional seats with the front frame resting on it.
