Adjusting Temperature-Mixing Flap and Baffle Flap

Adusting the Temperature - Mixture Flap and Baffle Flap

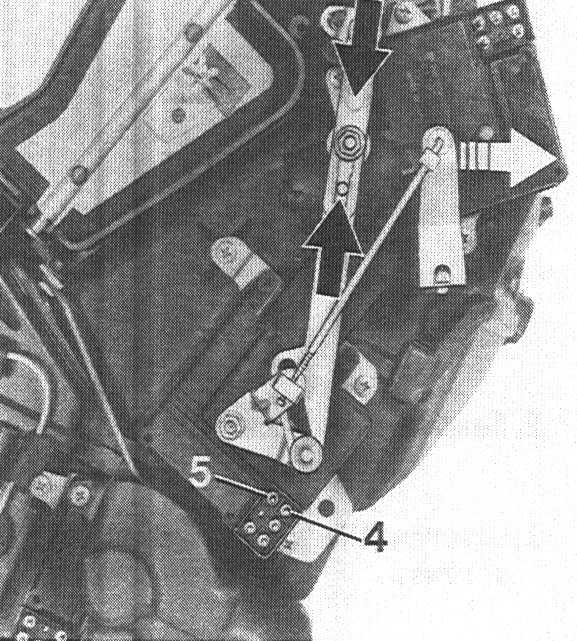

1. Set the control motors to the final "cool" position. To do this, connect pin 4 with + and pin 5 with - of a voltage source of 12 V.

2. Press temperature-mixing flap lever upward until the flap is at the stop. Clip on the linkage in this position.

3. Loosen nut M 5 on baffle flap linkage.




4. Press together the two linkage halves and tighten nut M5.
