Fuel Tank: Service and Repair

Removing, dismantling and assembling fuel tank

Use the component index as a guide during repair operations.

Fuel Tank Exploded View:

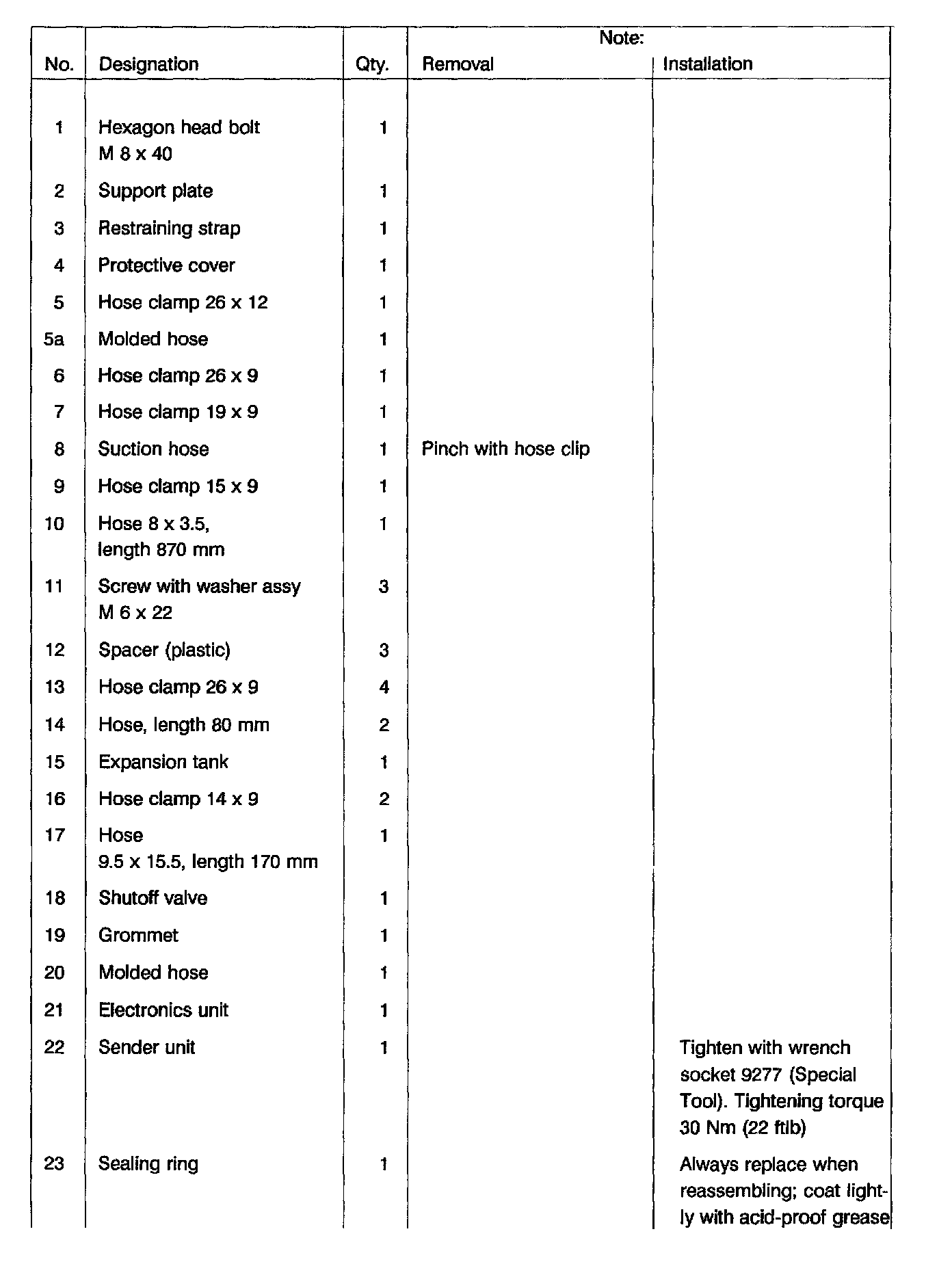

Component Index 1 To 23:

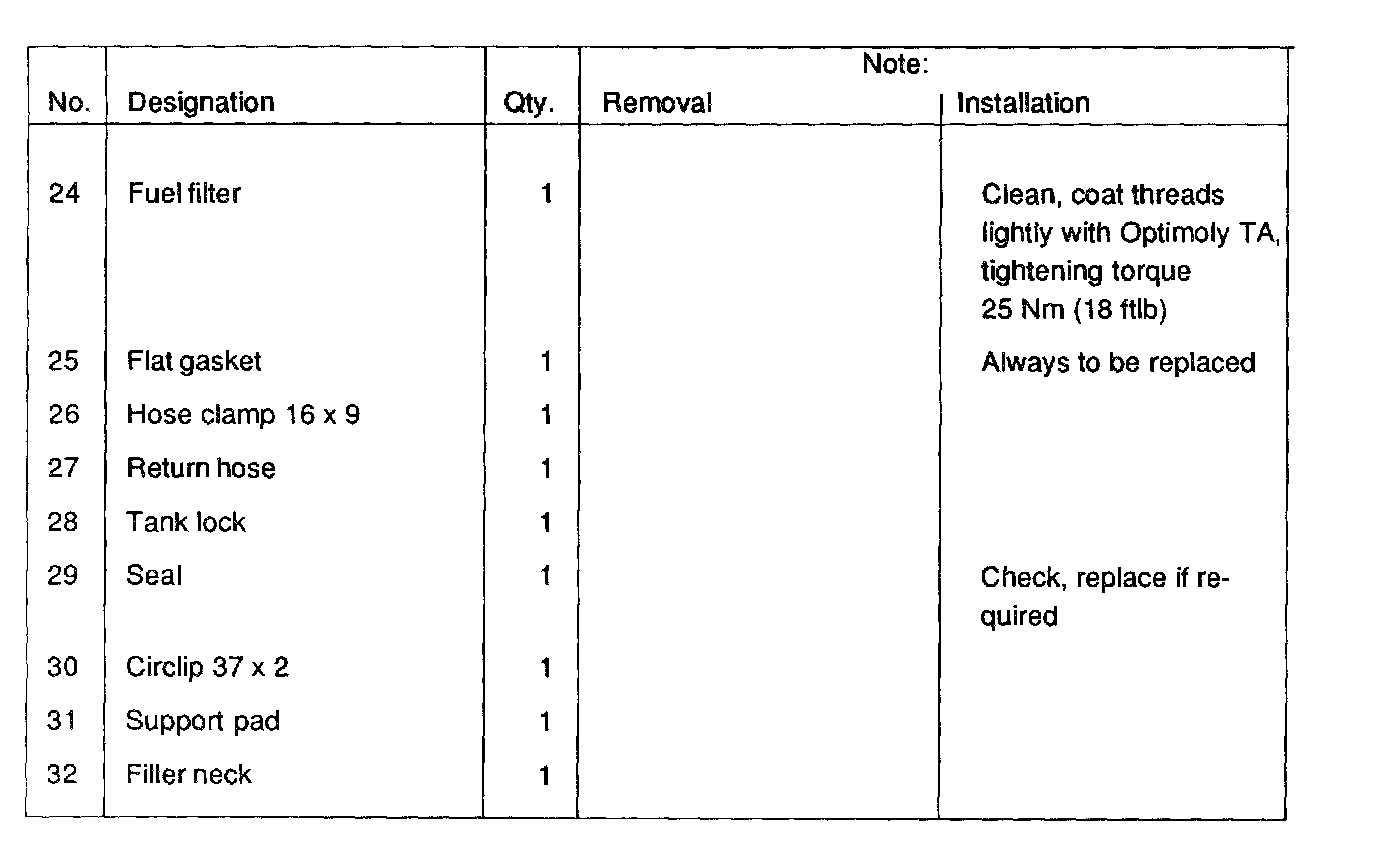

Component Index 24 To 32:

Assembly notes

Removing

1. The fuel contents may be drawn off via the fuel level sender hole. For this purpose, the fuel tank must not be filled by more than 3/4.
2. Disconnect battery.

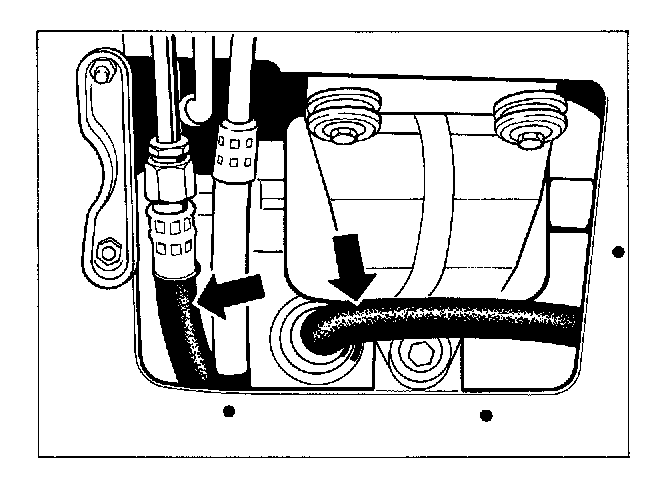

3. Pinch off fuel hose using hose clips. Disconnect hose clamp from bleeder hose and pull off from Tecalan line.

Installing

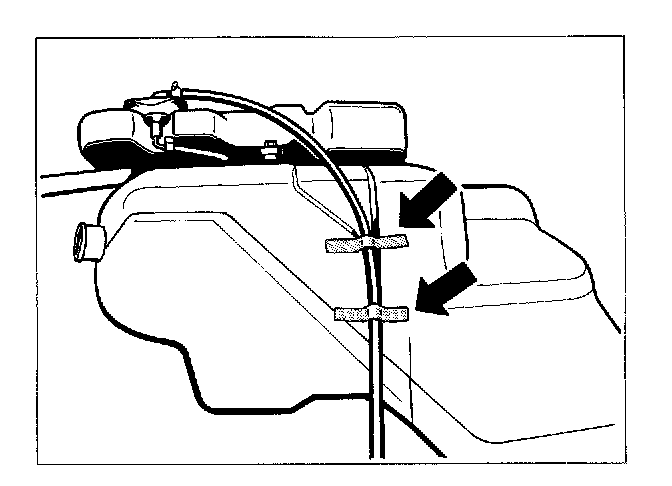

Before locating in its final assembly position, the bleeder hose must be fixed with hose band clamps.
