Disassembly/Assembly of Drive Pinion

Disassembly/Assembly

Drive Pinion:

Legend 1:

Legend 2:

Legend 3:

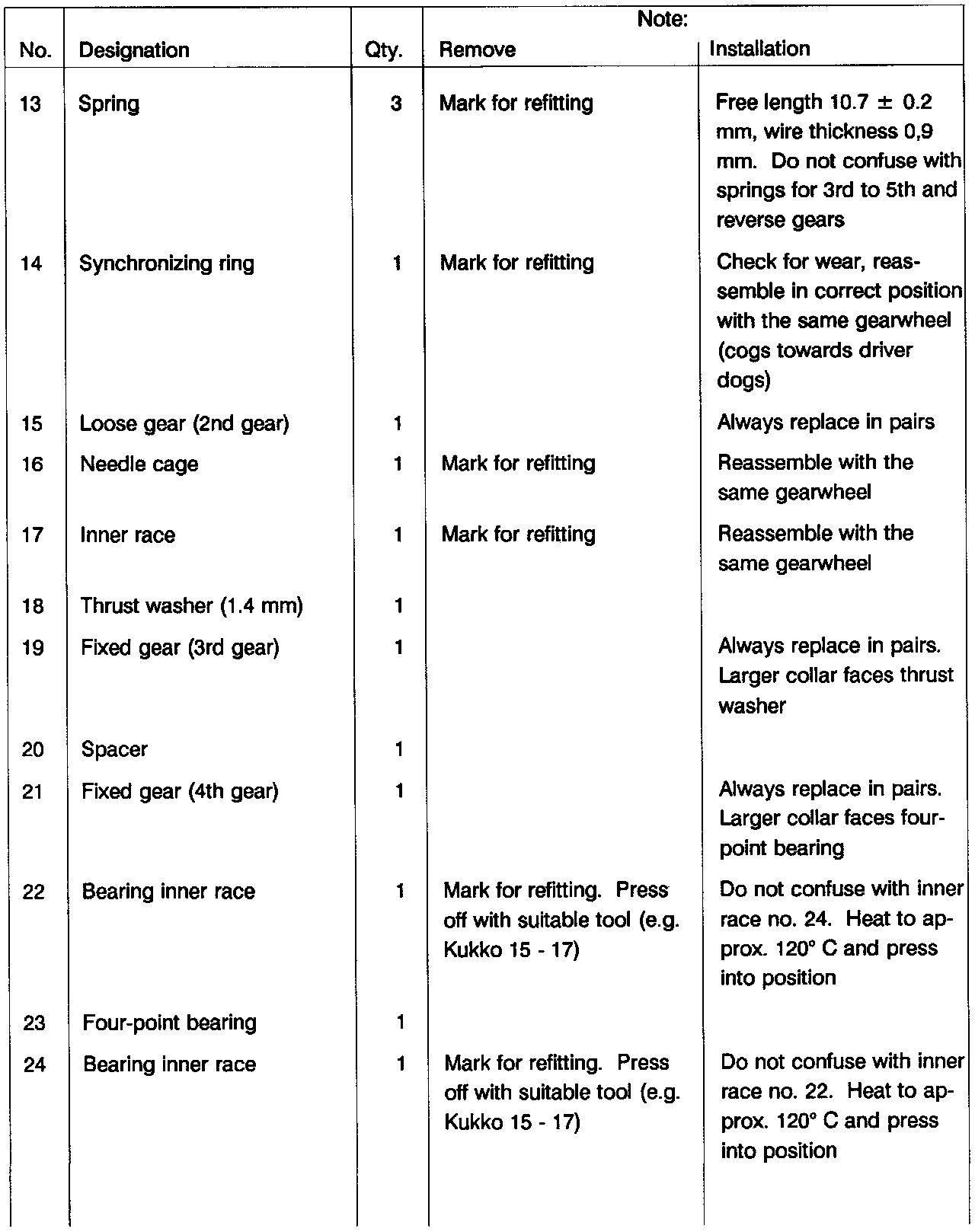

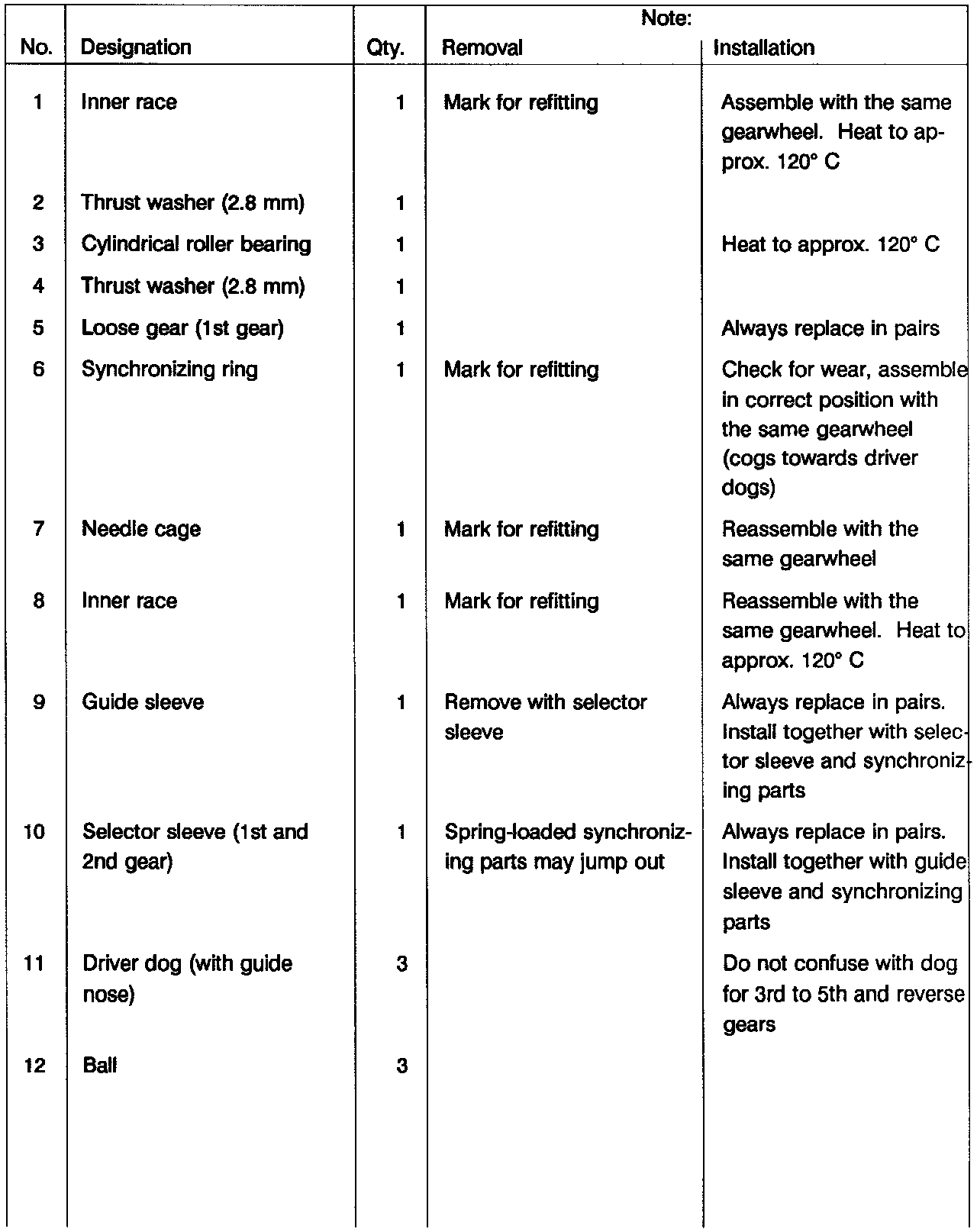

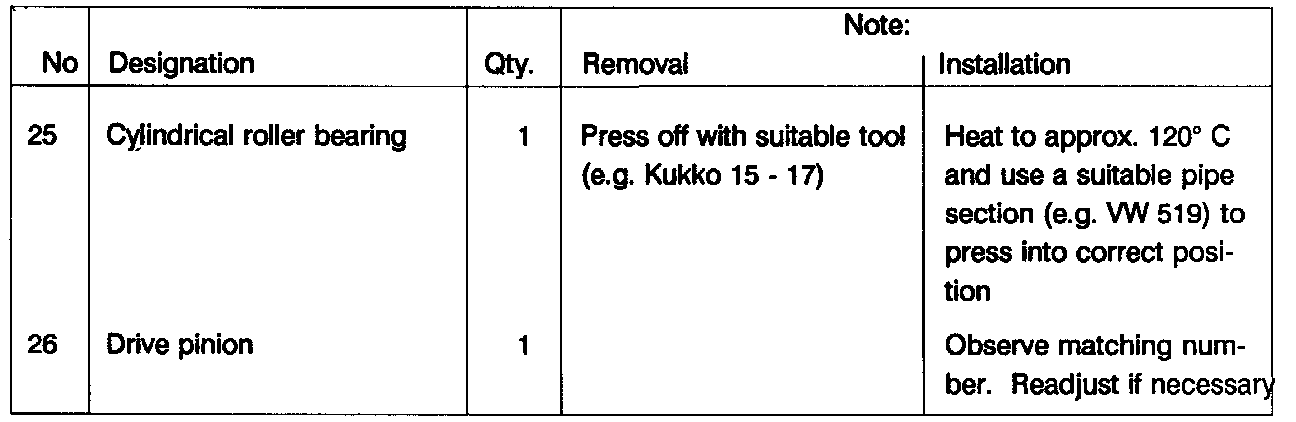

- Refer to images for instructions and legends.

Disassembly

NOTE:
- Items 1 through 20 are removed without removing the drive pinion.
- To facilitate reassembly, the drive pinion remains installed for part of the dismantling steps.Disassembly/Assembly of Transmission

Assembly
- Mount tensioning plate with input shaft in vice (fit protective jaws) and reassemble drive pinion.

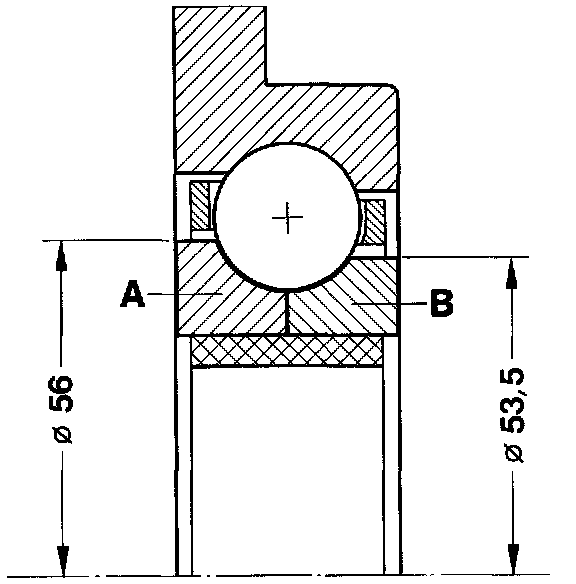

A = Large inner race (Outside diameter 56 mm), pointing towards pinion head when installed
B = Small inner race (outside diameter 53.5 mm), pointing towards 4th gear fixed gear.

- Heat bearing inner race of four-point bearing to approx. 120°C and press into correct position.

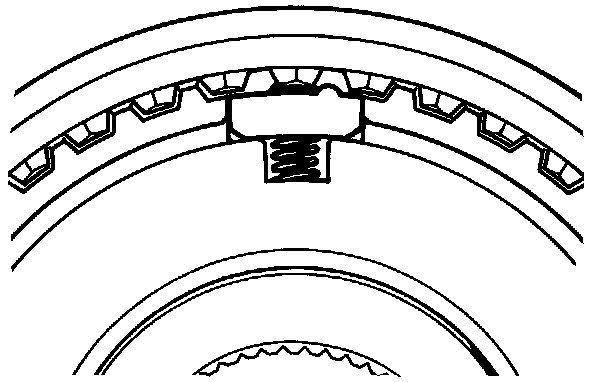

- When installing the synchronizer driver dogs, the guide nose must face the selector sleeve. The nose may point either to the left or the right.





Assembly dimension (new) = 1.1 mm min.
Wear limit = 0.6 to 0.7 mm

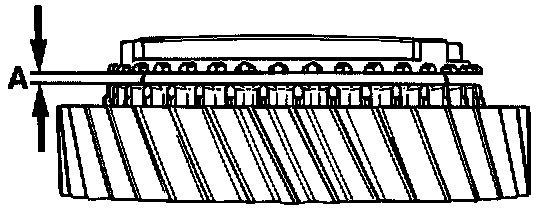

- To check the synchronizer rings, press rings onto the gear cones and use a feeler gauge to measure gap "A".
