Removing and Installing Immobilizer Control Unit [993]

Removal and Installing Immobilizer Control Unit [993]

Removal
1. Remove left seat.

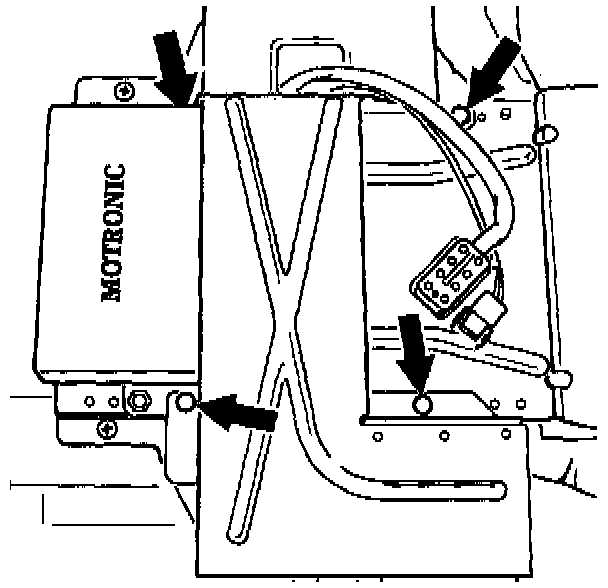

2. Remove shear bolts using a cross cut chisel and remove cover.
3. Loosen control unit and unplug connector.

Installation
Break off new M 6 x 13 shear bolts, part no. 999 074 051 02 using a Torx E6 socket wrench.
