Momo Steering Wheel Without Airbag (RS Models)

Removal
1. Remove the upholstered trim from the steering wheel (see following text).

CAUTION: Do not dismantle the lid with the Porsche emblem.

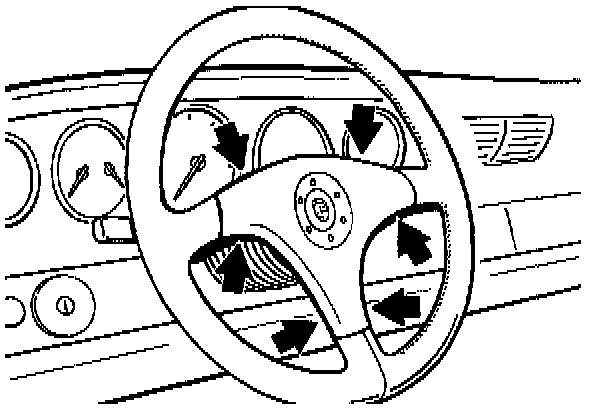

- First pull (lift) the top and bottom of the horizontal spokes on the trim over the steering wheel spokes.
- Then pull the trim over the vertical (lower) spoke (lift it over the steering wheel spoke).
- Unplug horn connector from upholstered trim.

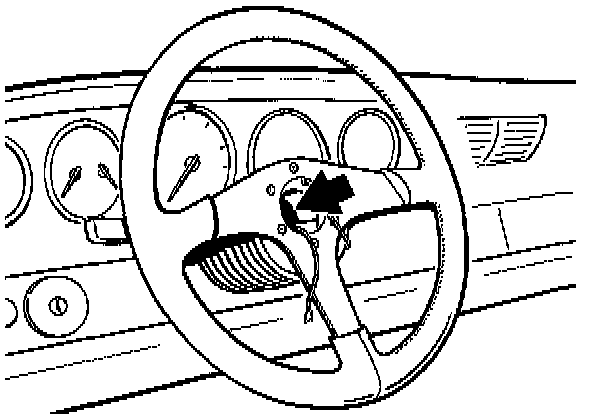

2. Unscrew hexagonal nut (arrow) and remove it together with lock washer.
3. Turn wheels of vehicle to straight ahead position.
- Then mark the position of the steering wheel in relation to the steering shaft (for re-installation).
- Take off steering wheel (in straight ahead position).

Installation
1. With the vehicle wheels in the straight ahead position (as marked during removal) install the steering wheel with the upper spokes horizontal.
2. Install hexagonal nut with lock washer and tighten to: 45 Nm (33.2 ft lb).
3. Install upholstered trim.
- First press (lift) it over the upper (horizontal) spokes.
- Then press (lift) it over the lower (vertical) steering wheel spoke.
4. Check horn for correct functioning.
