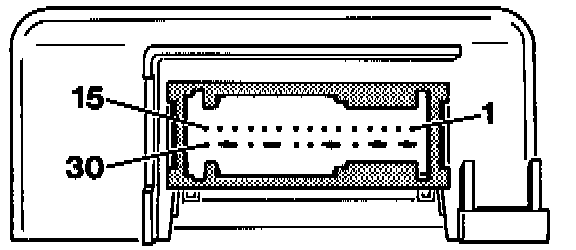

Triggering Unit Connector Assignment

1. not used
2. not used
3. not used
4. not used
5. Terminal 15
6. Terminal 31
7. Warning Lamp
8. not used
9. K Line
10. Ignition Pill, Driver Side, Positive
11. Ignition Pill, Driver Side, Negative
12. not used
13. Ignition Pill, Passenger Side, Positive
14. Ignition Pill, Passenger Side, Negative
15. not used
16. Tab for opening the short-circuit jumper
17. Tab for opening the short-circuit jumper
18. Tab for opening the short-circuit jumper
19. Tab for opening the short-circuit jumper
20. Output Terminal 15 DME
21. Tab for opening short-circuit jumper
22. Tab for opening short-circuit jumper
23. not used
24. not used
25. Tab for opening the short-circuit jumper
26. Tab for opening the short-circuit jumper
27. not used
28. Tab for opening the short-circuit jumper
29. Tab for opening the short-circuit jumper
30. not used
