A/C lines - Corrosion at Rubber Mounts
Group8
Number
9601
Model
6 Cyl.
Part Identifier
8743/45
May 30, 1996
Subject:
New A/C Lines and Rubber Mounts
ATTENTION: Service Manager/ Service Technician
Models Affected:
All 911 Carrera Model Years 1995 and 1996
911 Turbo Model Year 1996
Concern:
Corrosion on the A/C lines at the rubber mounts in the rocker panel area.
General Information:
As of September 29, 1995, new version A/C lines and rubber mounts designed to prevent corrosion have been installed. The new lines have been installed as of the following VIN's:
997TS 320553 Coupe
994TS 340459 Cabriolet
992TS 385078 Targa
99XTS 375640 Turbo
Repair Information:
Should replacement of the A/C line(s) become necessary, only the new version line(s) and mounts should be used. It is not necessary to replace both A/C lines unless both lines are leaking, however, replacement of both rubber mounts is necessary anytime either or both of the A/C lines require replacement.
Parts Information:

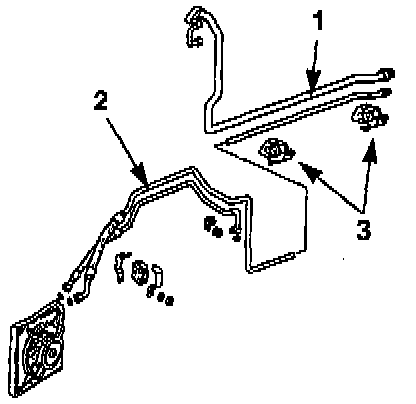

993 573 092 02 A/C line Arrow 1
993 573 107 02 A/C line Arrow 2
993 573 463 02 Mount (qty 2) Arrow 3
