Mode 1
The following PID's are supported in mode 1:
$00 Supported PID's
A 4-byte word (Data A, B, C and D) indicates which PID's are supported in this mode.

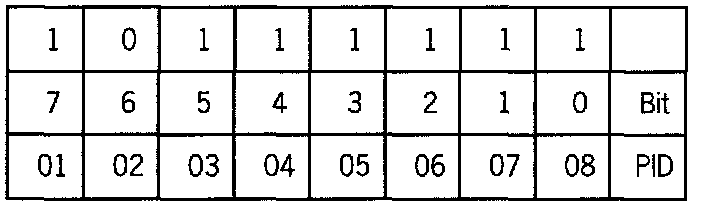

Data A
PID 01 to 08
Data B
PID 09 to 10
Data C

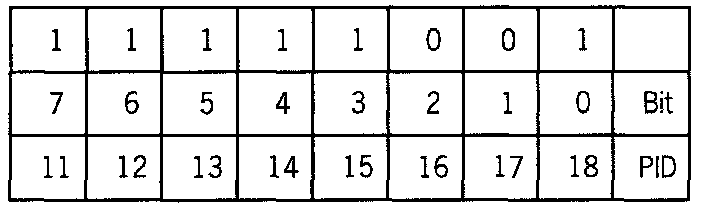

PID 11 to 18

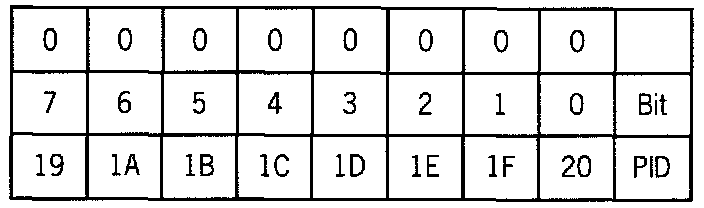

Data D
PID 19 to 20
0 - PID number not supported.
1 - PID number supported.
$01 Diagnosis system status
The system status is indicated by a 4-byte word (Data A, B, C and D).
Mode 41Pid$01 Adr$17
Engine control
Number of faults: 1
MIL commanded ON.
- number of faults stored by this control unit.
- status of check engine light (MIL).
NOTE: If there are several control units, the status of the check engine light indicates which control unit was responsible for switching on the check engine light.

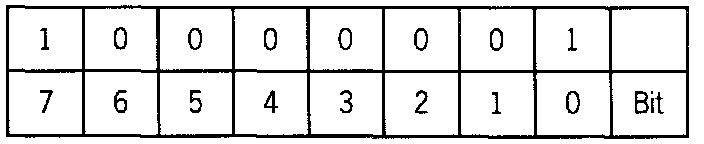

These data may also be designated data A and displayed in this form:
Data A.
Bits 0 to 6 - Number of faults in binary numbers
Bit 7
0 - Check engine light not switched on by this control unit.
1 - Check engine light switched on by this control unit.

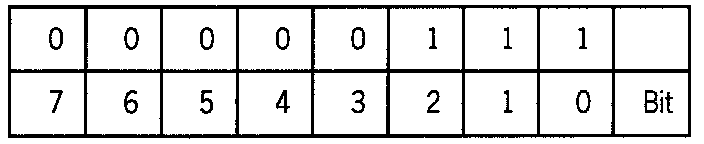

Data B: 00000111

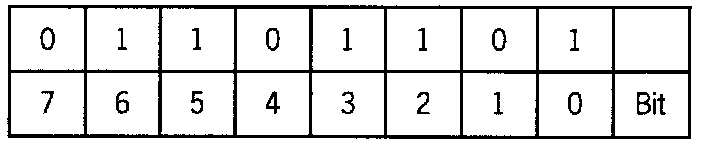

C: 01101101

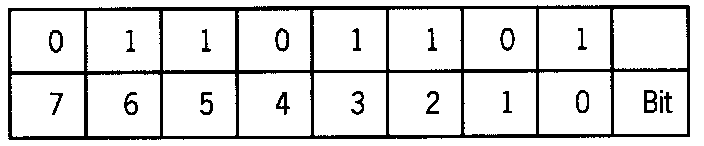

D: 01101101.
Data B
Data byte B indicates the subsystems which are monitored continuously, i.e. at least twice per second.
Bit 0 - misfiring detection
Bit 1 - fuel system
Bit 2 - other components
Bit 3 - not used
Bit 4 - not used
Bit 5 - not used
Bit 6 - not used
Bit 7 - not used
0 - system not supported.
1 - system supported.
Data C
Data byte C indicates the subsystems which are monitored at least once per trip.
Bit 0 - catalytic converter
Bit 1 - catalytic converter heating
Bit 2 - tank ventilation
Bit 3 - secondary air injection system
Bit 4 - air conditioning system
Bit 5 - oxygen sensor
Bit 6 - oxygen sensor heating
Bit 7 - exhaust gas recirculation
0 - subsystem not installed.
1 - subsystem installed.
Data D
Data byte D indicates the readiness codes of the subsystems of data byte C.
Bit 0 to 7
0 - subsystem test in order or subsystem not installed.
1 - subsystem test not yet completed.
NOTE: After the fault memory is erased, the bits of the subsystems installed are set to 1. These bits are again set to o if diagnosis routines are successfully completed in 2 trips.
$03 Injection system status.
Mode 41Pid$03 Adr$17.
Data A Data B

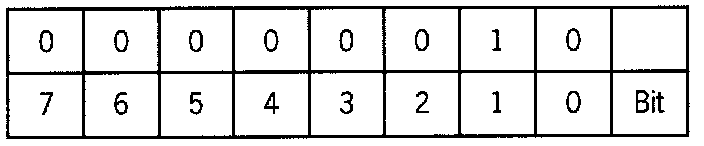

00000010 00000010.
Data A - status for bank 1
Data B - status for bank 2
Bit 0 - open-loop control, conditions for air/fuel control not yet met.
Bit 1 - closed-loop control, oxygen sensor signal used to control injection.
Bit 2 - open-loop control due to conditions such as full load, etc.
Bit 3 - open-loop control due to system faults.
Bit 4 - closed-loop control, but fault signal from at least one oxygen sensor.
Bits 5 to 7 not used.
NOTE: Only one bit can be set to 1 at any time to indicate the status.
$04 Calculated load value.
Mode 41Pid$04 Adr$17.
Calc. load
6.2%.
The value displayed is between 0 and 100 %.
$05 Cylinder head temperature.
Mode 41Pid$05 Adr$17.
Temperature
27°C.
Value displayed between - 40°C and 215°C.
$06 A/F integrator, bank 1.
Mode 41Pid$06 Adr$17.
O2S integ. B1
0.0%.
Value indicated, lean up to -. 100% rich up to 99.22%
$07 A/F adaptation bank 1.
Mode 41Pid$07 Adr$17.
O2S adapt. B1
0.0%.
Value indicated, lean up to - 100% rich up to 99.22%
$08 A/F integrator bank 2.
Mode 41Pid$08 Adr$17.
O2S integr. B2
0.0%.
Value indicated, lean up to - 100% rich up to 99.22%
$09 A/F adaptation bank 2.
Mode 41Pid$09 Adr$17.
O2S adapt. B2
0.0%.
Value indicated, lean up to - 100% rich up to 99.22%
$0C Engine speed.
Mode 41pid$0C Adr$17.
Rpm
800/min.
Indication of engine speed in rpm.
$0D Speed.
Mode 41Pid$0D Adr$17.
Speed
0 kph.
Speed indication in kph up to a maximum of 255 kph.
$0E Ignition timing cylinder 1.
Mode 41Pid$0E Adr$l7.
Ignition angle
23.50.
Indication: after TDC up to - 64°KW before TDC up to 63.5°KW
°kW - degrees crank angle
$OF Intake air temperature.
Mode 41pid$0F Adr$17.
Int. air temp.
32°C.
Indication between - 40°C and 215°C
$10 Air mass flow.
Mode 41Pid$10 Adr$17.
Air mass
27.76g/s.
Indication range from 0 to 655.35 g/s. g/s - grams per second
$11 Throttle position.
Mode 41Pid$11 Adr$17.
Throttle pos.
0.0%.
Indication range from 0% to 75%
$12 Secondary air injection system status.
Mode 41Pid$12 Adr$17.
Sec. air. stat.

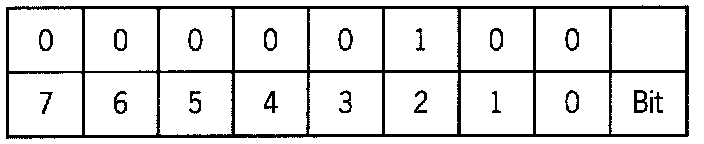

00000100.
Bit 0 - Secondary air is injected above first cat. converter branch.
Bit 1 - Secondary air is injected below first cat. converter branch.
Bit 2 - Secondary air injection pump is switched off.
Bits 3 to 7 are not used.
NOTE: Only one bit can be set to 1 at any time to indicate the status.
$13 Number of oxygen sensors.
Mode 41Pid$13 Adr$17.

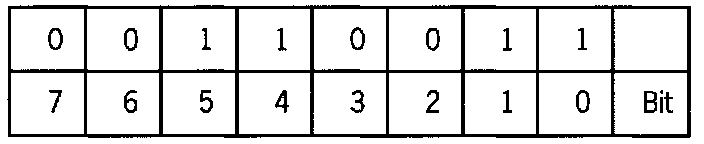

00110011.
Bit 0 - bank 1, sensor 1
Bit 1 - bank 1, sensor 2
Bit 2 - bank 1, sensor 3
Bit 3 - bank 1, sensor 4
Bit 4 - bank 2, sensor 1
Bit 5 - bank 2, sensor 2
Bit 6 - bank 2, sensor 3
Bit 7 - bank 2, sensor 4
0 - Sensor not installed.
1 - Sensor installed.
$14 Oxygen sensor signal, bank 1, sensor 1.
Mode 41Pid$14 Adr$17.
B1 - S1
0.44 V 0%.
The display indicates the oxygen sensor voltage and the appropriate A/F control signal. The sensor voltage indication range is 0 V to 1.275 V. The A/F control signal is indicated in per cent. Value indicated, lean up to - 100%, rich up to 99.22%
$15 Oxygen sensor signal, bank 1, sensor 2.
Mode 41Pid$15 Adr$17.
B1 - S2
0.43 V 99%.
The display indicates the oxygen sensor voltage and the appropriate A/F control signal. The sensor voltage indication range is 0 V to 1.275 V. The A/F control signal is indicated in per cent. Value indicated, lean up to - 100%, rich up to 99.22%
$18 Oxygen sensor signal, bank 2, sensor 1.
Mode 41Pid$18 Adr$17.
B2 - S1
0.43 V 0%.
The display indicates the oxygen sensor voltage and the appropriate A/F control signal. The sensor voltage indication range is 0 V to 1.275 V. The A/F control signal is indicated in per cent. Value indicated, lean up to - 100%, rich up to 99.22%
$19 Oxygen sensor signal, bank 2, sensor 2.
Mode 41Pid$19 Adr$17.
B2 - S2
0.43 V 99%.
The display indicates the oxygen sensor voltage and the appropriate A/F control signal. The sensor voltage indication range is 0 V to 1.275 V. The A/F control signal is indicated in per cent. Value indicated, lean up to - 100%, rich up to 99.22%
