8009 CD Changer

8009 CD Changer

Mechanical Fault While Removing Audio CD From Reader

Diagnostic conditions
- Ignition on.
- PCM2/CDR23 ON
- Functional audio CD inserted correctly in CD changer
- Start CD changer

NOTE:
- Actuating the operating buttons for '≥ 1 Min.' results in a fault code 8003 being recorded in PCM2 MMI/CDR23
- Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2/CDR23. If this is not done, the diagnosis will abort.

Possible cause of fault
- CD changer faulty

NOTE:
The MOST optical waveguide is connected to the following control modules:
- PCM2/CDR23
- CD changer
- Amplifier
- Telephone/telematics


Diagnosis/Troubleshooting

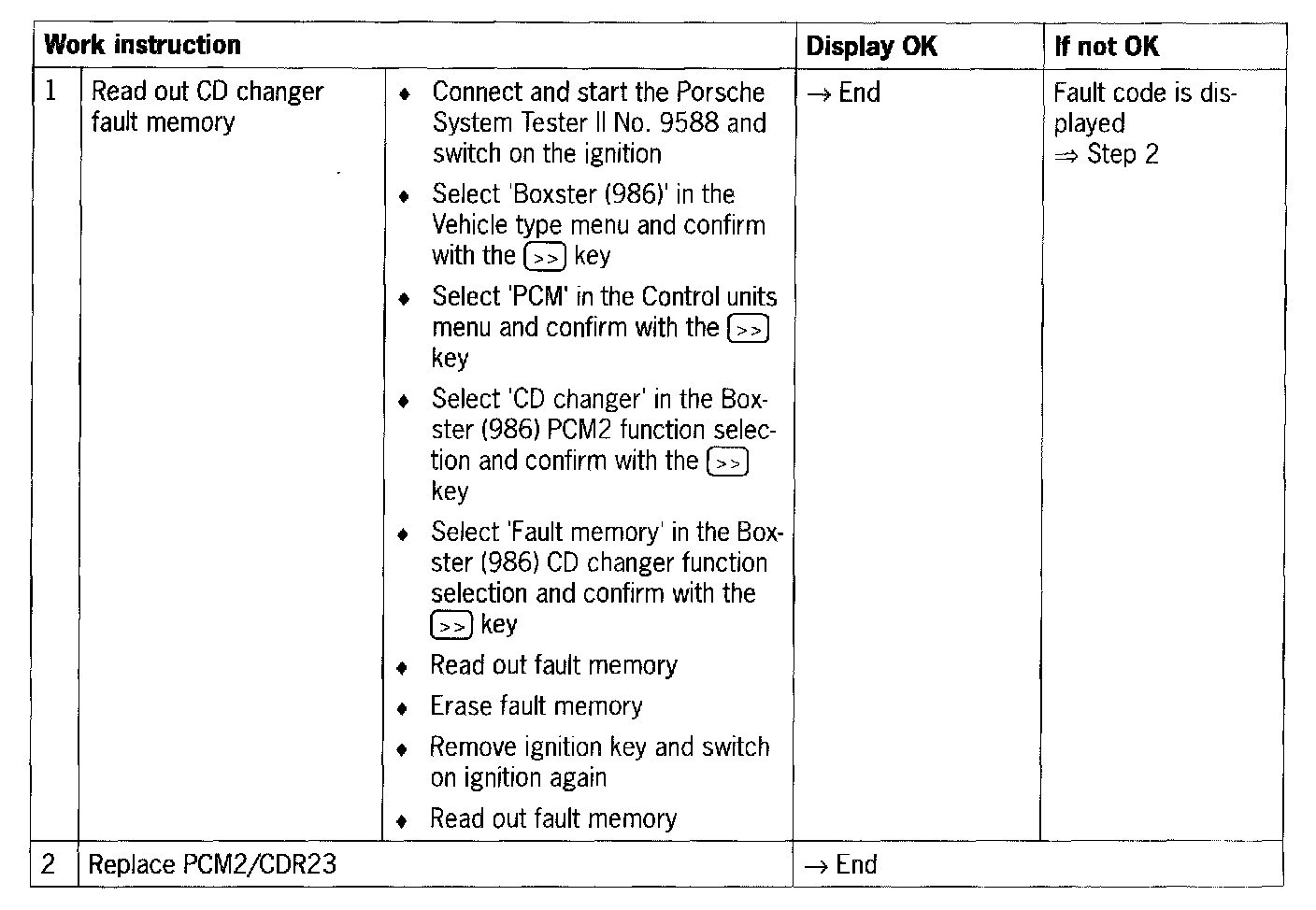

Work Instruction 1 - 2:
