8003 External BOSE Amplifier

8003 External BOSE Amplifier

Fault in front left loudspeaker channel/left door speaker

Diagnostic conditions
- Ignition on
- PCM2/CDR23 ON

NOTE:
- Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for one or more minutes.
- Deactivate the automatic traffic announcement before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort.

Possible cause of fault
- Short circuit to B+/ground in the wiring harness
- Short circuit - loudspeaker faulty
- Short circuit - amplifier faulty

Affected pin







External BOSE amplifier, plug A, pin 27, pin 32, pin 25, pin 30

Diagnosis/troubleshooting - BOSE

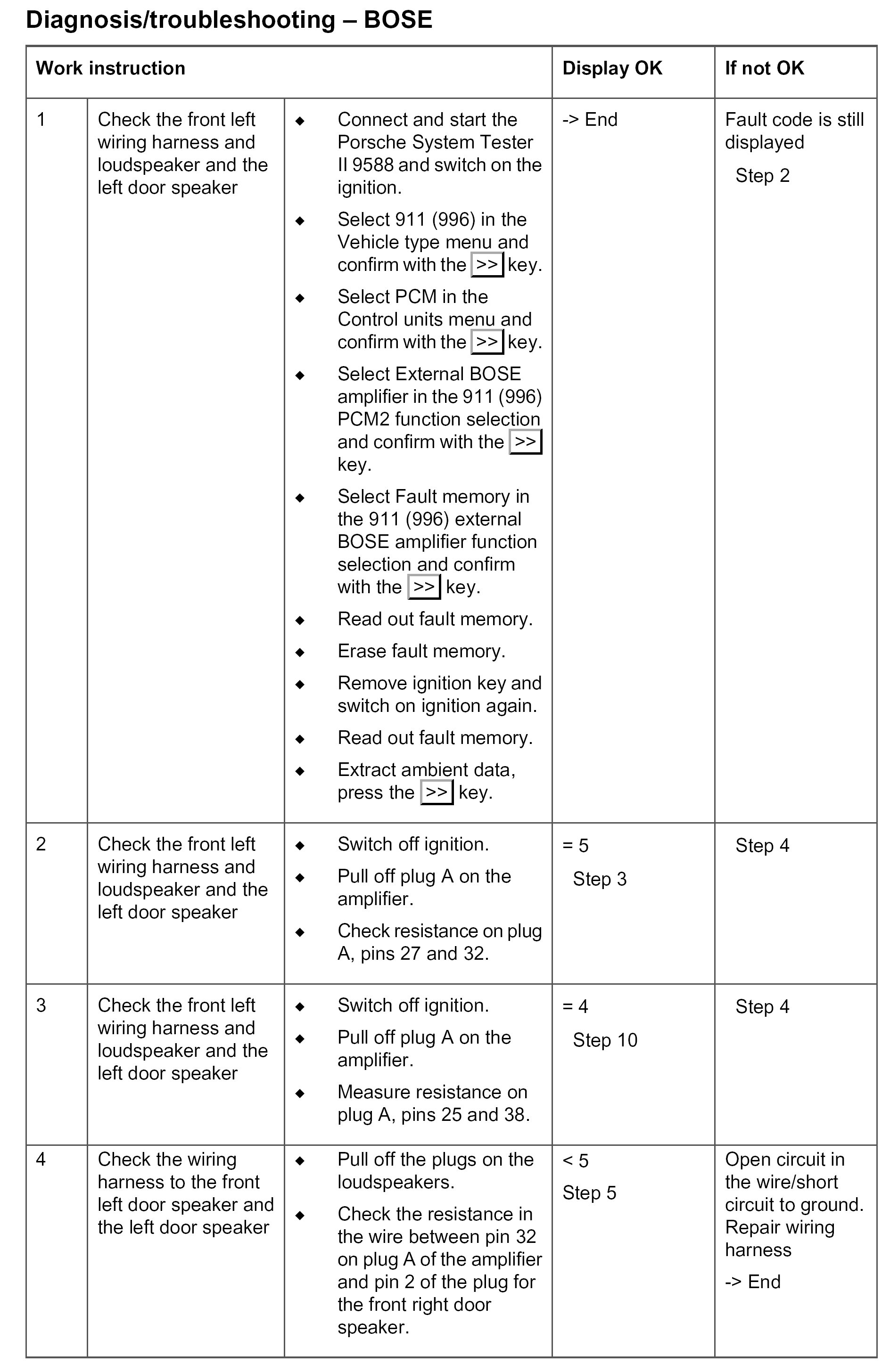

Diagnosis/troubleshooting - BOSE (Part 1):

Diagnosis/troubleshooting - BOSE (Part 2):
