Fault Code 12

Fault Code 12

Wrong door lock module

Diagnostic conditions
- Vehicle is locked or unlocked

Possible cause of fault
- Wrong door lock installed

NOTE:
- USA vehicles do not have the 'Door secured' function.
- Fault code 12 is set if the wrong door locks are installed.

Affected terminals
Plug A, pins 5 and 28

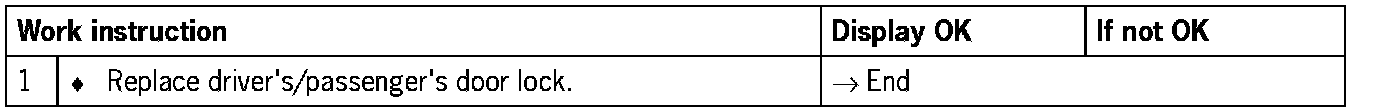

Diagnosis/troubleshooting
