Fault Code 39

Fault Code 39

Signal converter faulty

Diagnostic conditions
- Pin 86 S or pin 15 on

Possible cause of fault
- Short circuit to voltage/ground or open circuit in wiring between the alarm system control module and the signal converter

Affected terminals
Plug A, pins 3 and 4

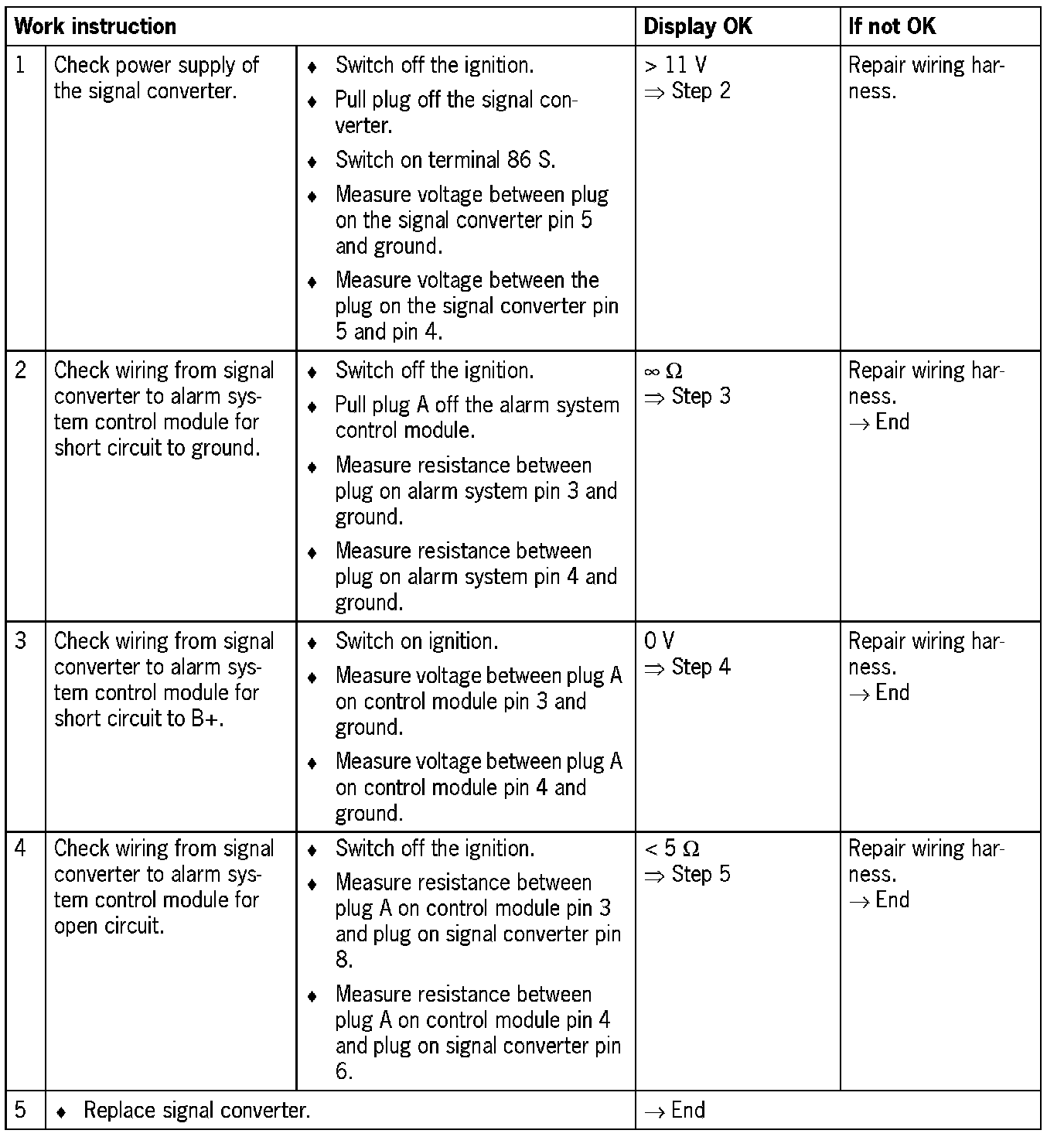

Diagnosis/troubleshooting
