Fault Code 4216

Fault Code 4216

Speed Sensor, Rear Left
Implausible signal from speed sensor

Diagnostic conditions
- Vehicle speed > 40 km/h (25 mph) for min. 40 s.

Possible cause of fault
- Pulse ring/speed sensor soiled or damaged, wheel-bearing play too great
- Pick-up due to faulty shield
- Speed sensor faulty
- ABS control unit faulty


Diagnosis/troubleshooting

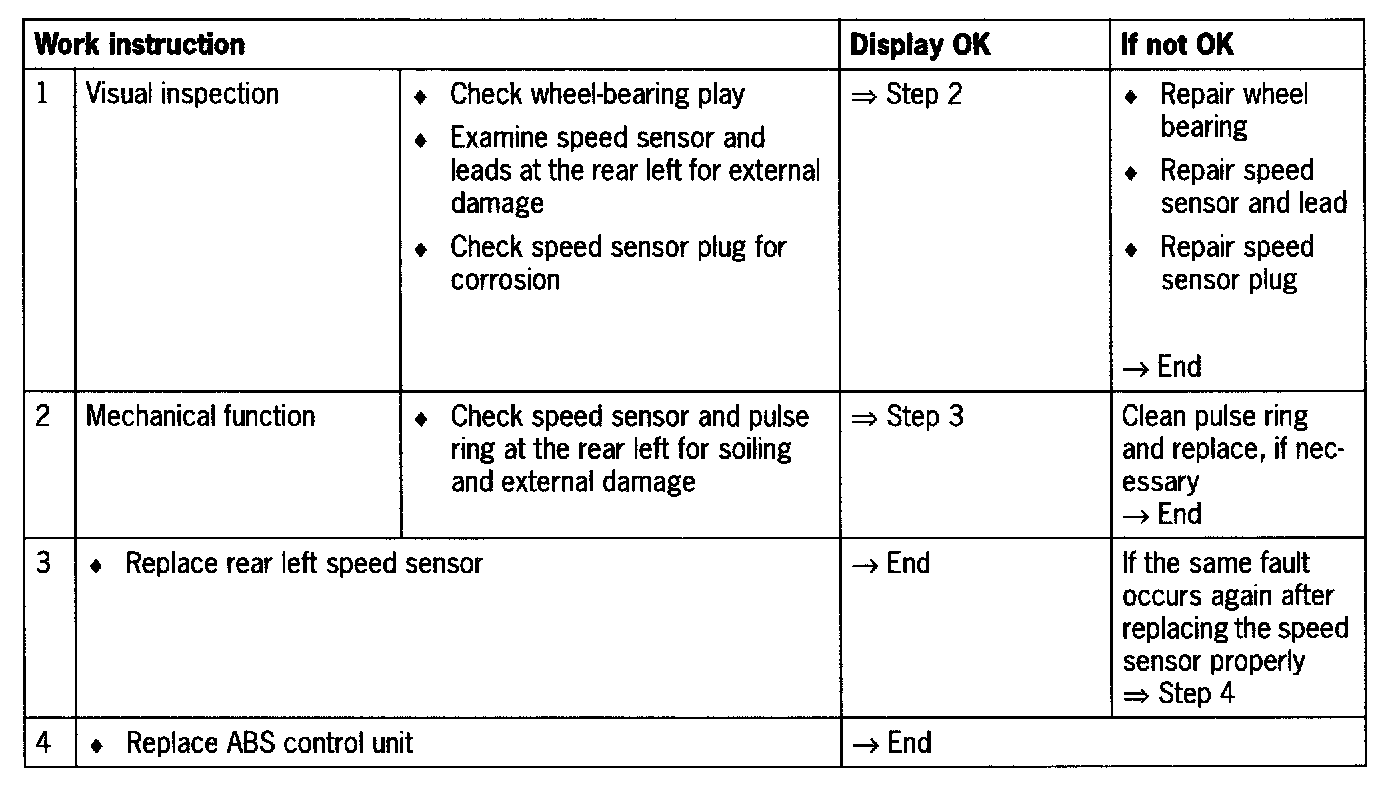

Work Instruction 1 - 4:
