Fault Code 4205
Fault Code 4205
Speed-sensor wire, front left
Diagnostic conditions
- Ignition on
Possible cause of fault
- Short circuit to B+ or open circuit in circuit to control module terminal 6
- Wire/plug connection between control module and speed sensor faulty
- Speed sensor faulty
Affected terminals
PSM 5.3: Terminals 8, 10
PSM 5.7: Terminals 12, 28 in 911 Carrera 4
PSM 5.7: Terminals 12, 13 in 911 Carrera 2
Diagnosis/troubleshooting PSM 5.3

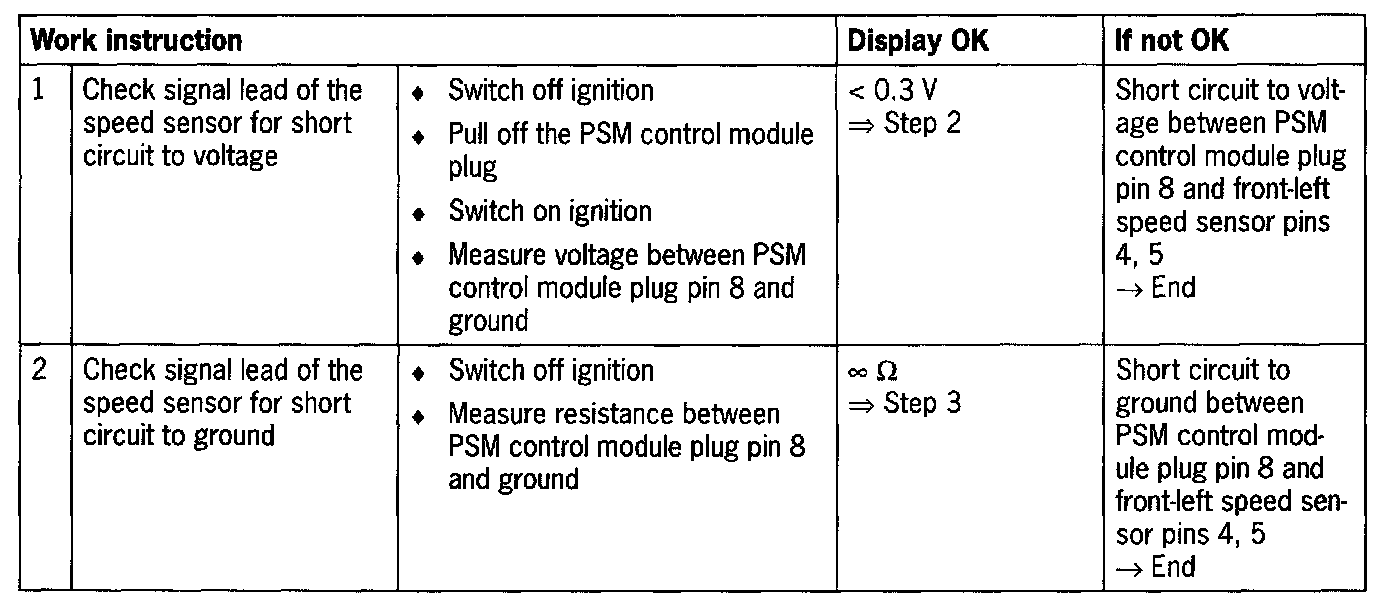

Work Instruction 1 - 2:

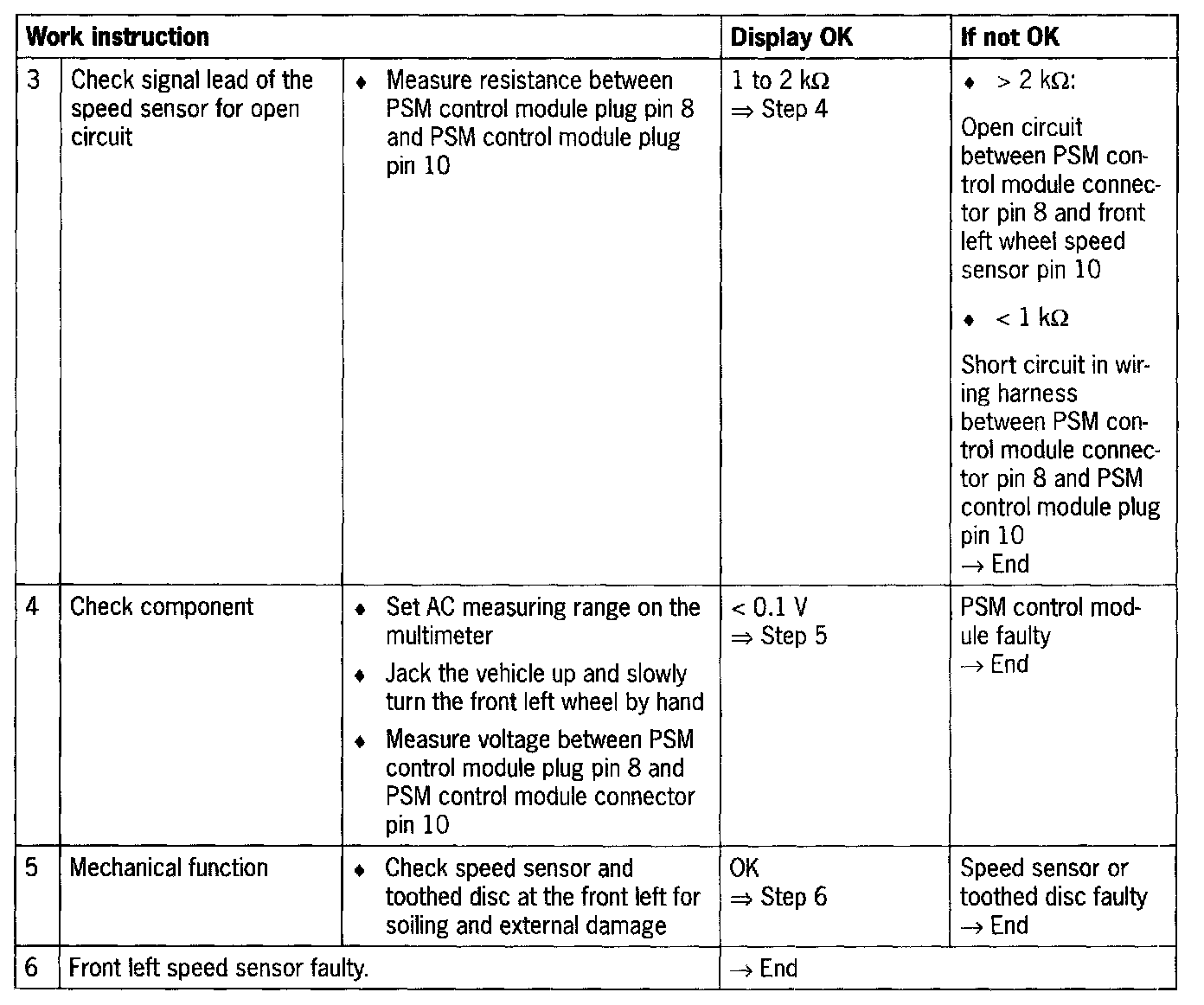

Work Instruction 3 - 6:
Diagnosis/troubleshooting PSM 5.7

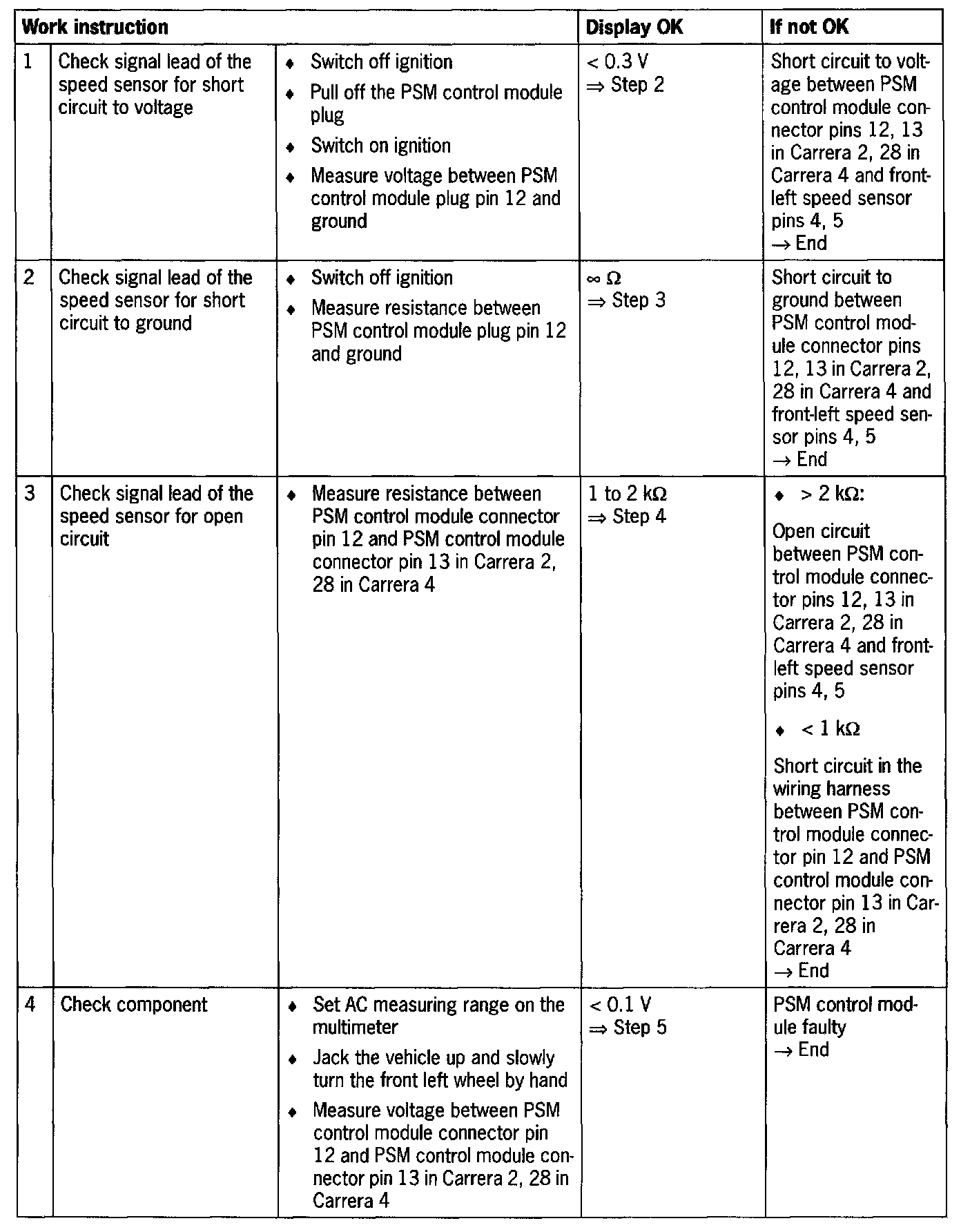

Work Instruction 1 - 4:
Work Instruction 5 - 6:
