Fault Code 4206

Fault Code 4206

Speed sensor, front left

Diagnostic conditions
- Incorrect signal from speed sensor
- Vehicle speed is greater than 6 km/h (for at least 20 s)
- Short circuit to ground in the circuit to control module terminals

Possible cause of fault
- Toothed disc/speed sensor soiled or damaged
- Speed sensor faulty

Affected terminals
PSM 5.3: Terminals 8, 10
PSM 5.7: Terminal 12, 28 in 911 Carrera 4
PSM 5.7: Terminal 12, 13 in 911 Carrera 2

Diagnosis/troubleshooting PSM 5.3

Work Instruction 1 - 2:

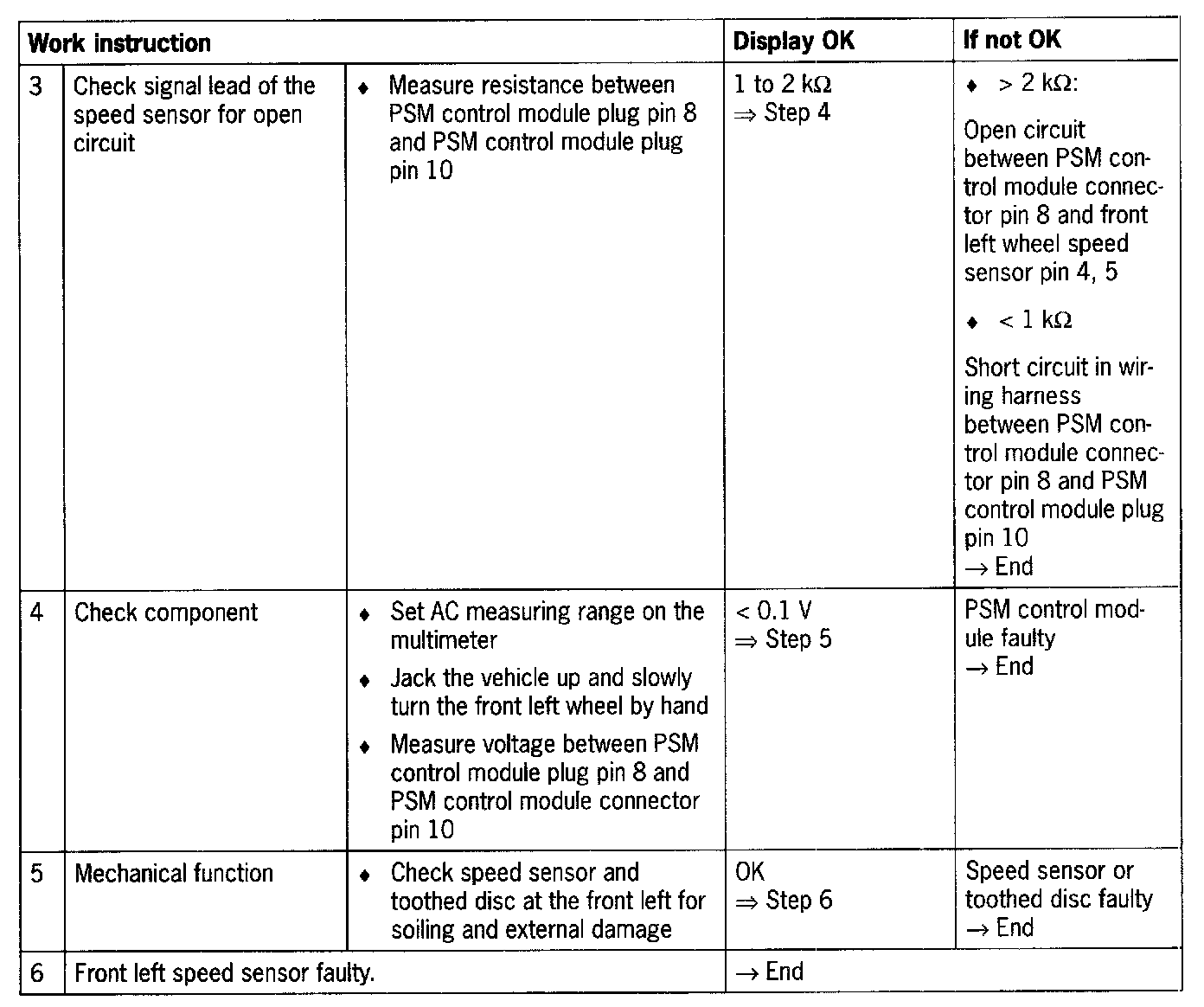

Work Instruction 3 - 6:

Diagnosis/troubleshooting PSM 5.7

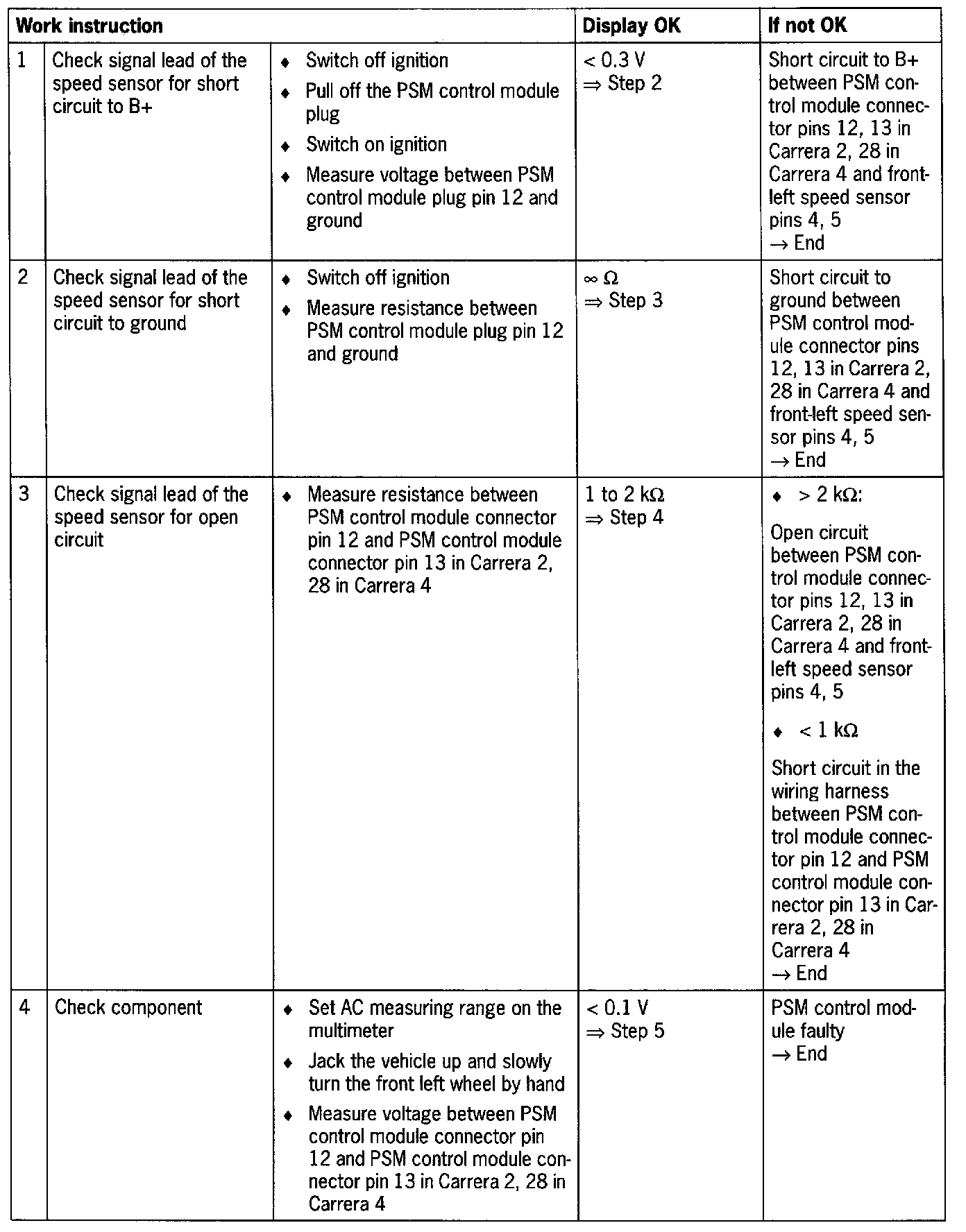

Work Instruction 1 - 4:

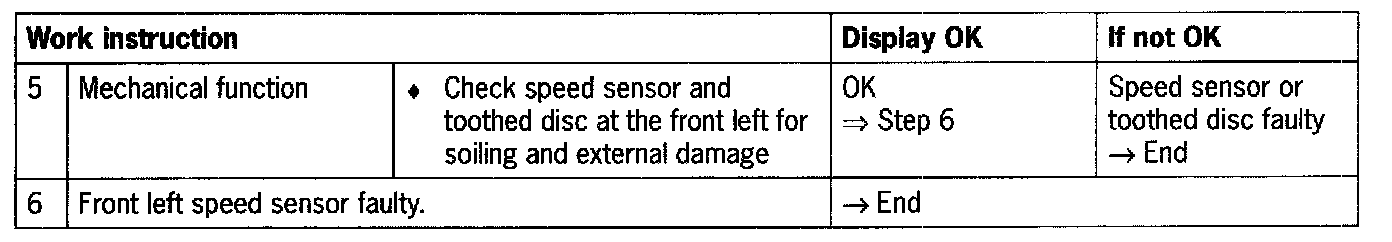

Work Instruction 5 - 6:
