Short Circuit In GPS Antenna

Diagnostic conditions
- Ignition on
- PCM2 on

NOTE:
- Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for one or more minutes.
- Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort.

Possible cause of fault
- Short circuit in the antenna wiring from GPS antenna on PCM2 to ground or B+
- GPS antenna faulty
- Navigation module faulty
- PCM2 faulty

NOTE:
The MOST optical waveguide is connected to the following control modules:
- PCM2
- CD changer
- Amplifier
- Telephone/telematics

Affected pins
Plug I, pin 1

Diagnosis/Troubleshooting

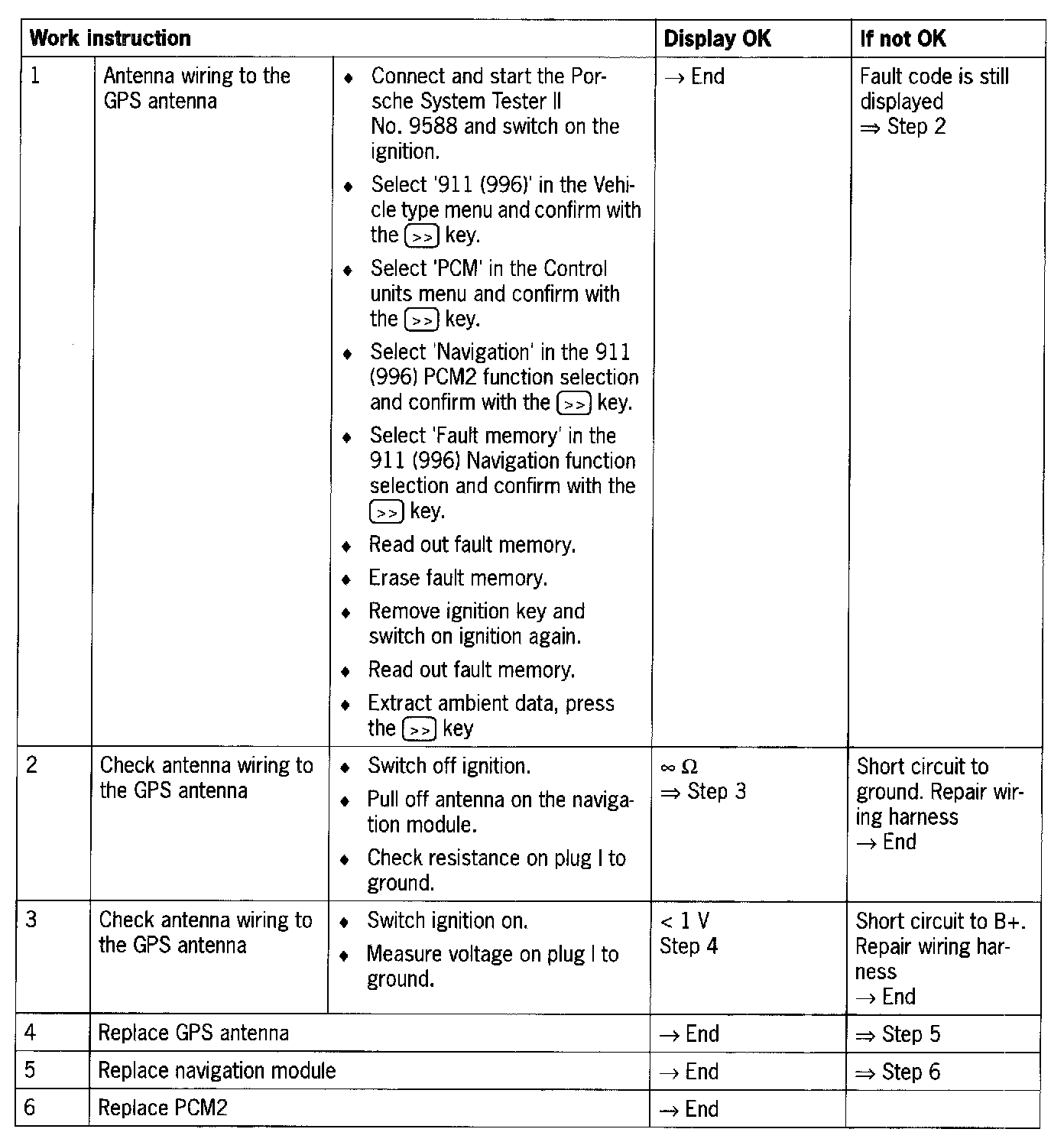

Work Instruction 1 - 6:
