CD Changer

8003 CD Changer

Audio CD read error (formatting error on CD)

Diagnostic conditions
- Ignition on
- PCM2/CDR23 on
- Functional audio CD inserted correctly in CD changer
- Start CD changer

NOTE:
- Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for '≥ 1 minute'.
- Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort (applies only to software version < 03).

Possible cause of fault
- CD changer faulty

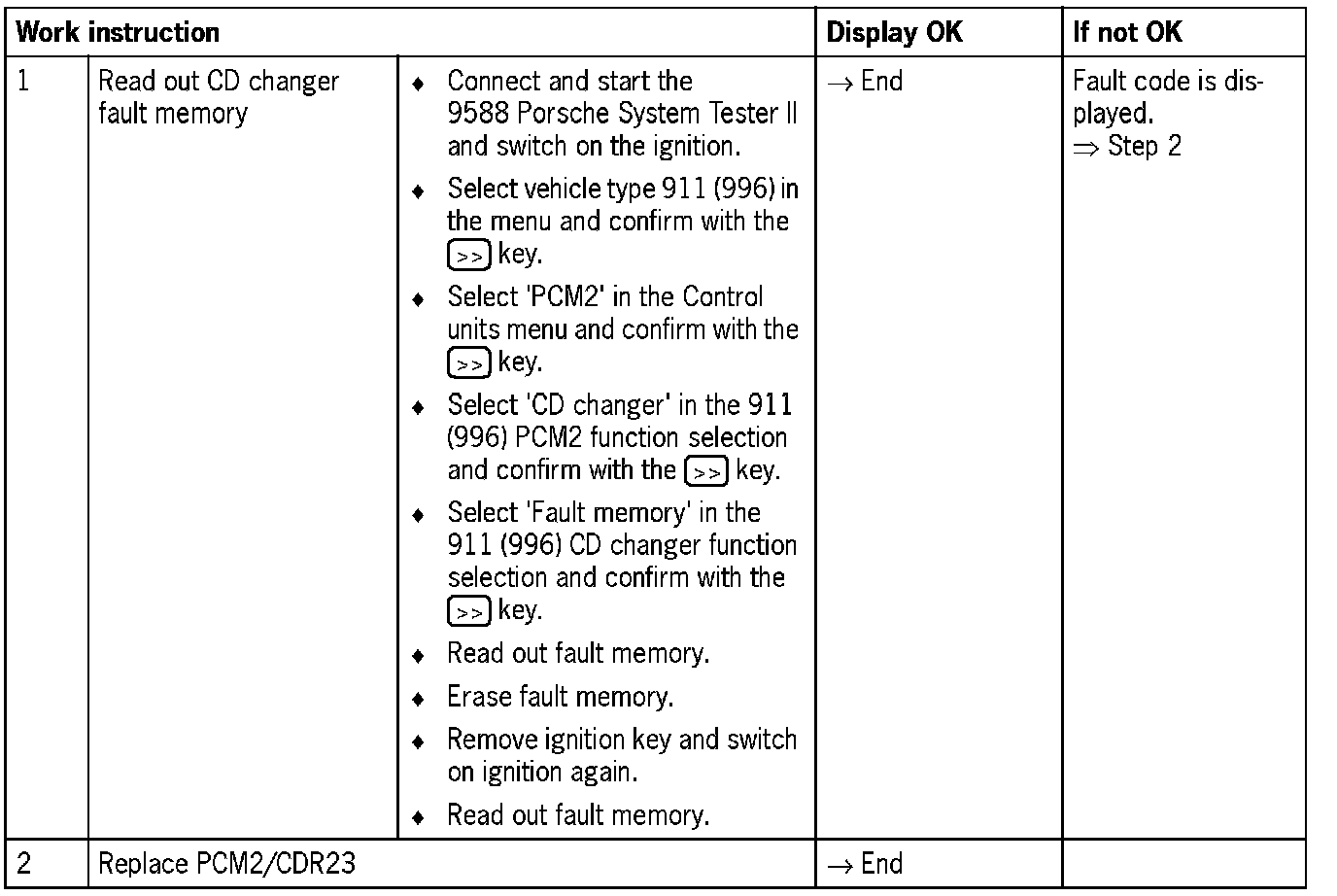

Diagnosis/troubleshooting
