Microphone Signal Faulty

8OOA External BOSE amplifier

Microphone signal faulty

Diagnostic conditions
- Ignition on
- PCM2/CDR23 ON

NOTE:
- Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for one or more minutes.
- Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort.

Possible cause of fault
- No signal is emitted from the microphone

Affected pin
Amplifier control module, plug B, pins 1 and 10

Diagnosis/troubleshooting

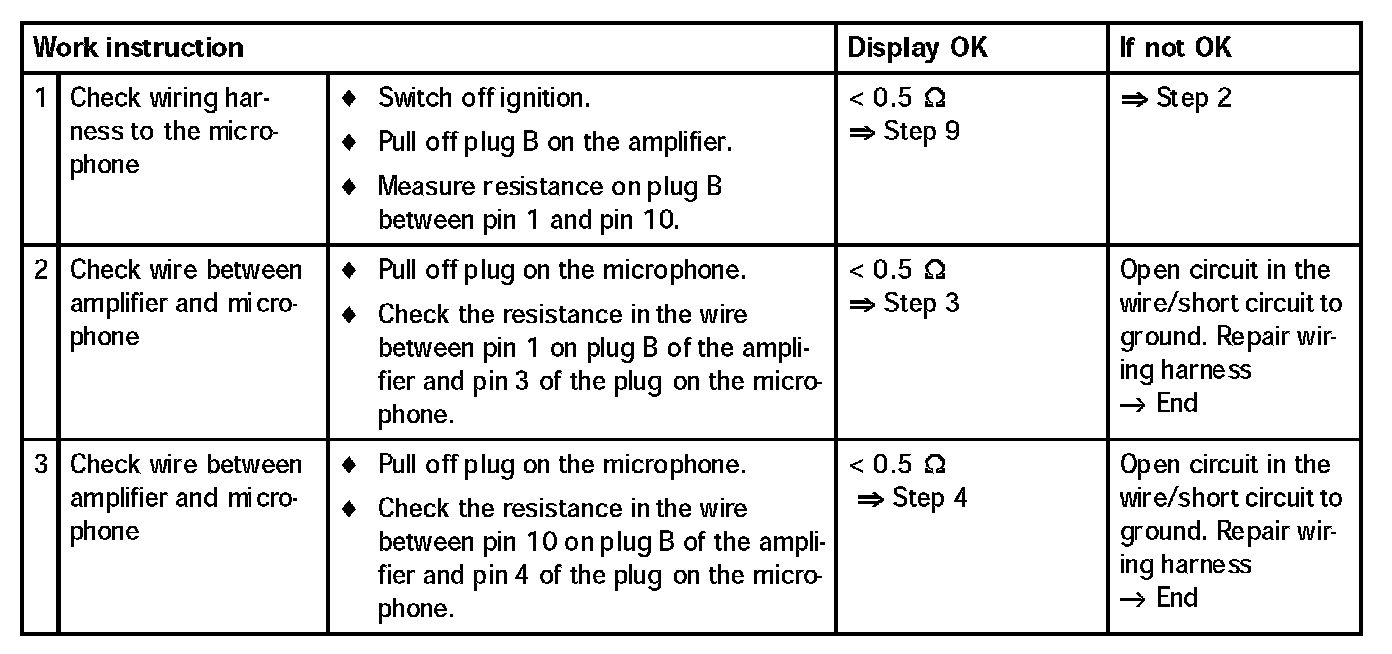

Part 1:

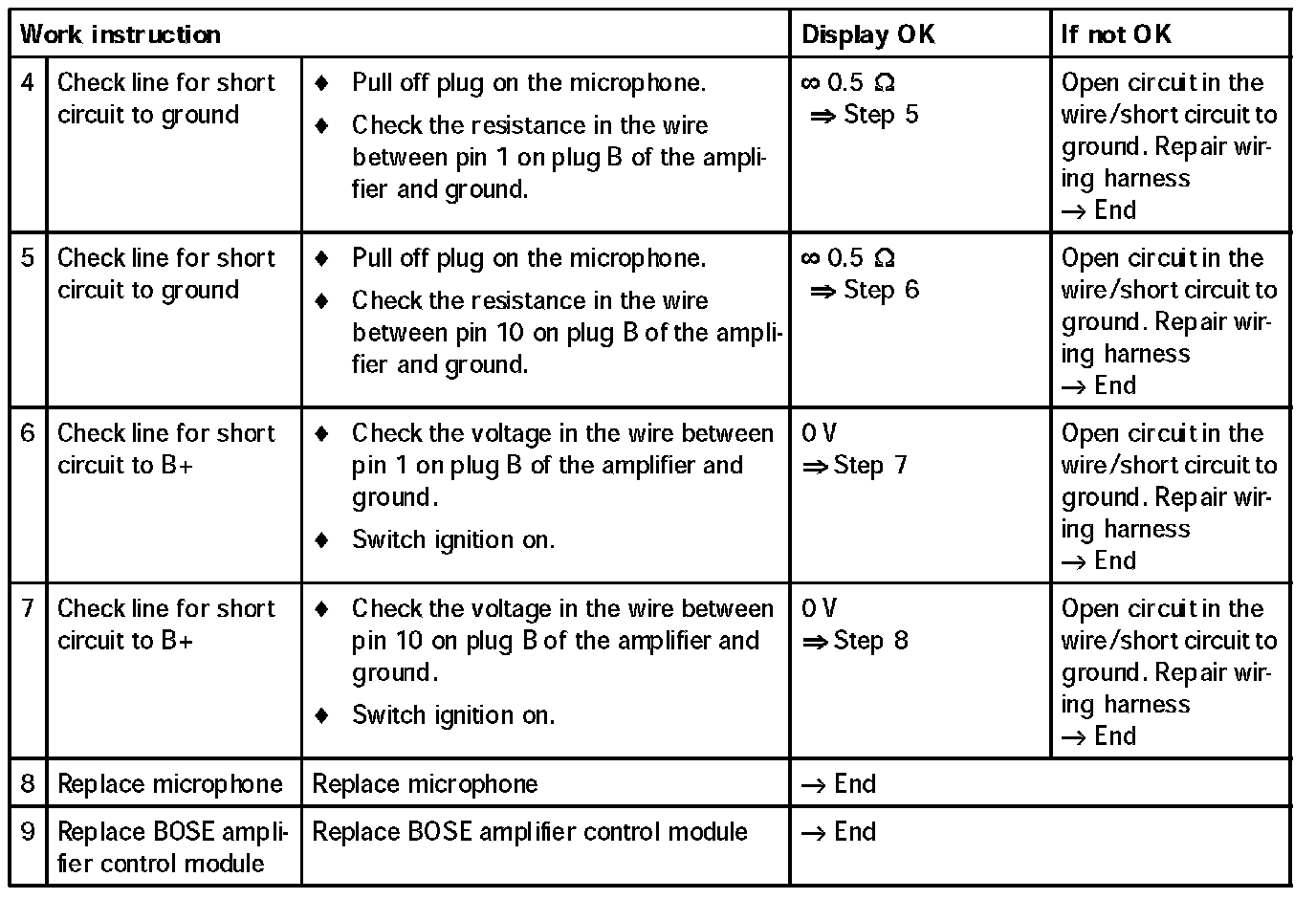

Part 2:
