Fault Codes 14, 15, 30, 31, 41

Fault Codes 14, 15, 30, 31, 41

Ignition Circuit, Passenger's Side Airbag

Diagnostic conditions
- Ignition on

Possible cause of fault
- Short circuit to B+/ground or open circuit in the wiring between the passenger side airbag unit and the airbag triggering unit
- Passenger's side airbag faulty
- Triggering unit for airbag faulty

Affected pins
Pins 18 and 19

Diagnosis/troubleshooting

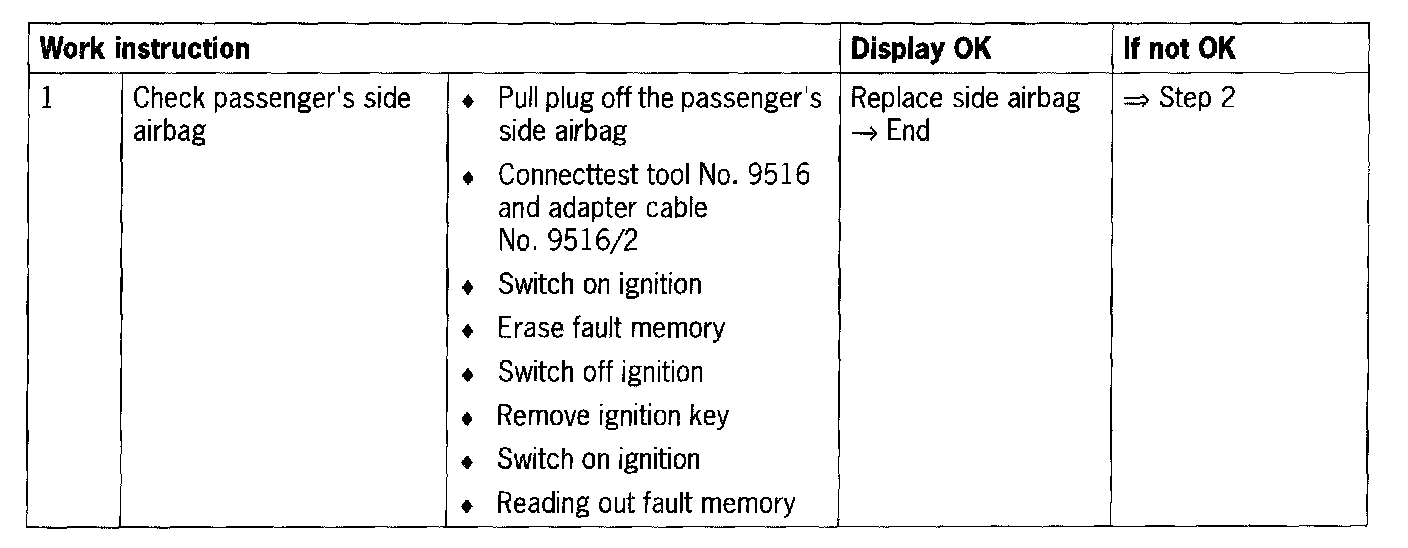

Work Instruction 1:

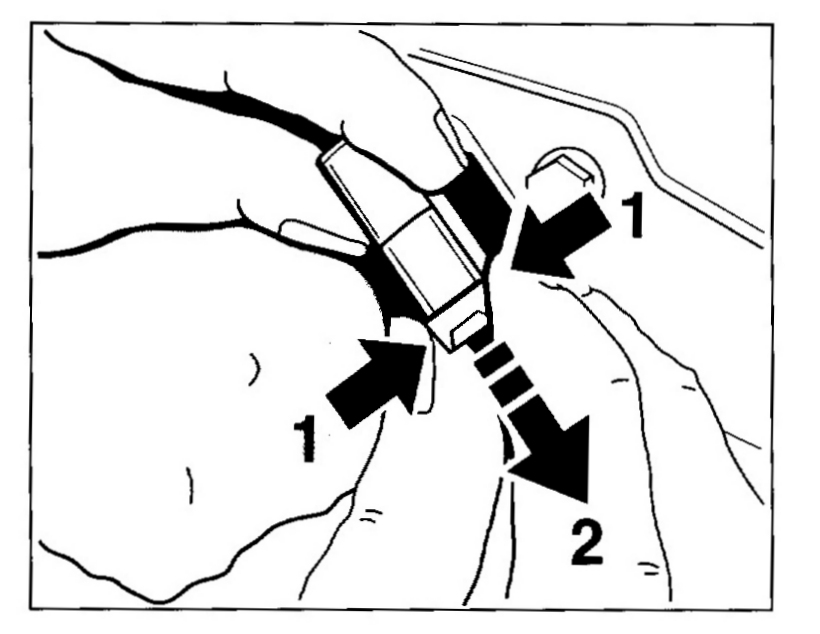

The figure illustrates how the plug connection is disconnected from the side airbag.

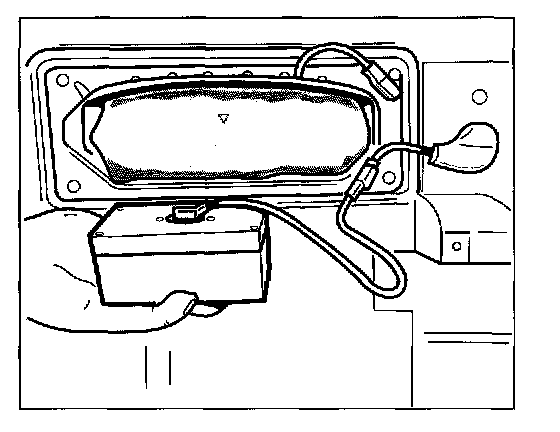

Test tool No. 9516 and adapter cable No. 9516/2 instead of the side airbag

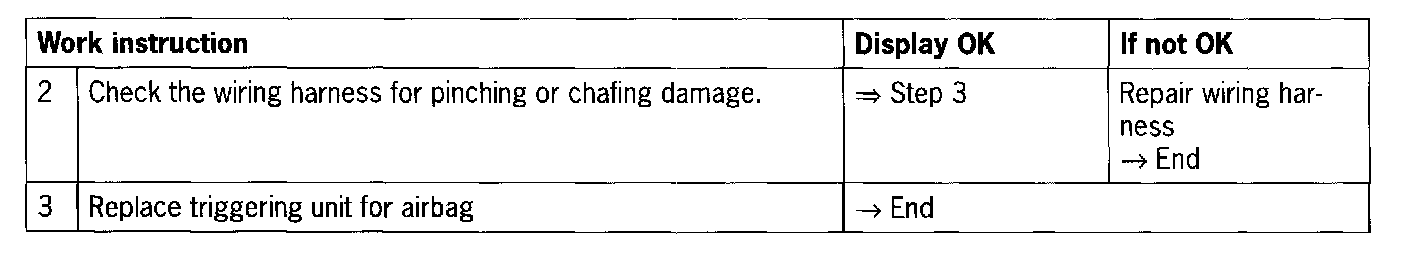

Work Instruction 2 - 3:
