DME 7.8

P1507

411 Throttle jacking unit, gain adjustment - signal implausible

Diagnosis conditions
- Ignition on (approx, 30 sec.)
- Stationary vehicle
- Engine not running
- Engine temperature between 5 and 100 °C
- Intake air temperature between 5 and 100 °C
- Battery voltage greater than 10 V
- Pedal value less than 0.8 %

Possible fault cause
- DME control module faulty

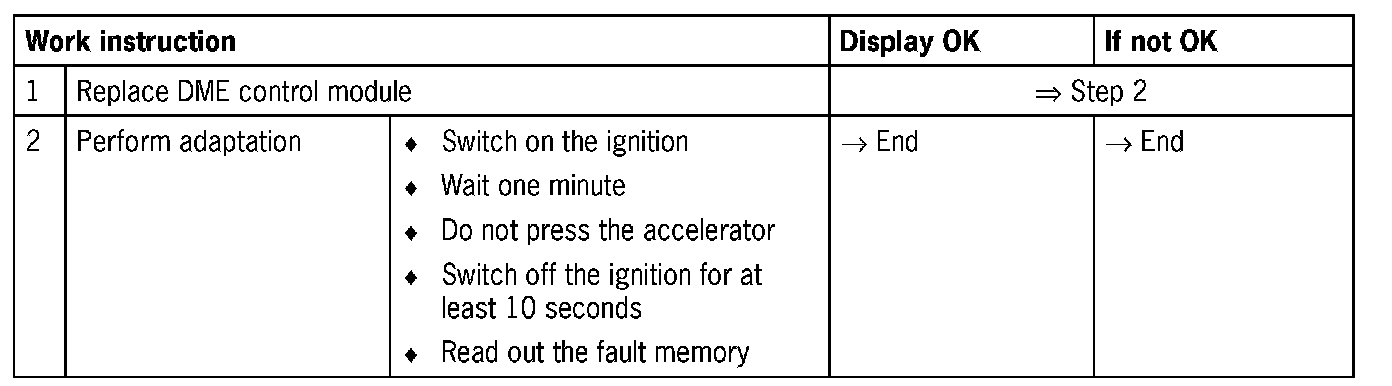

Diagnosis/troubleshooting
