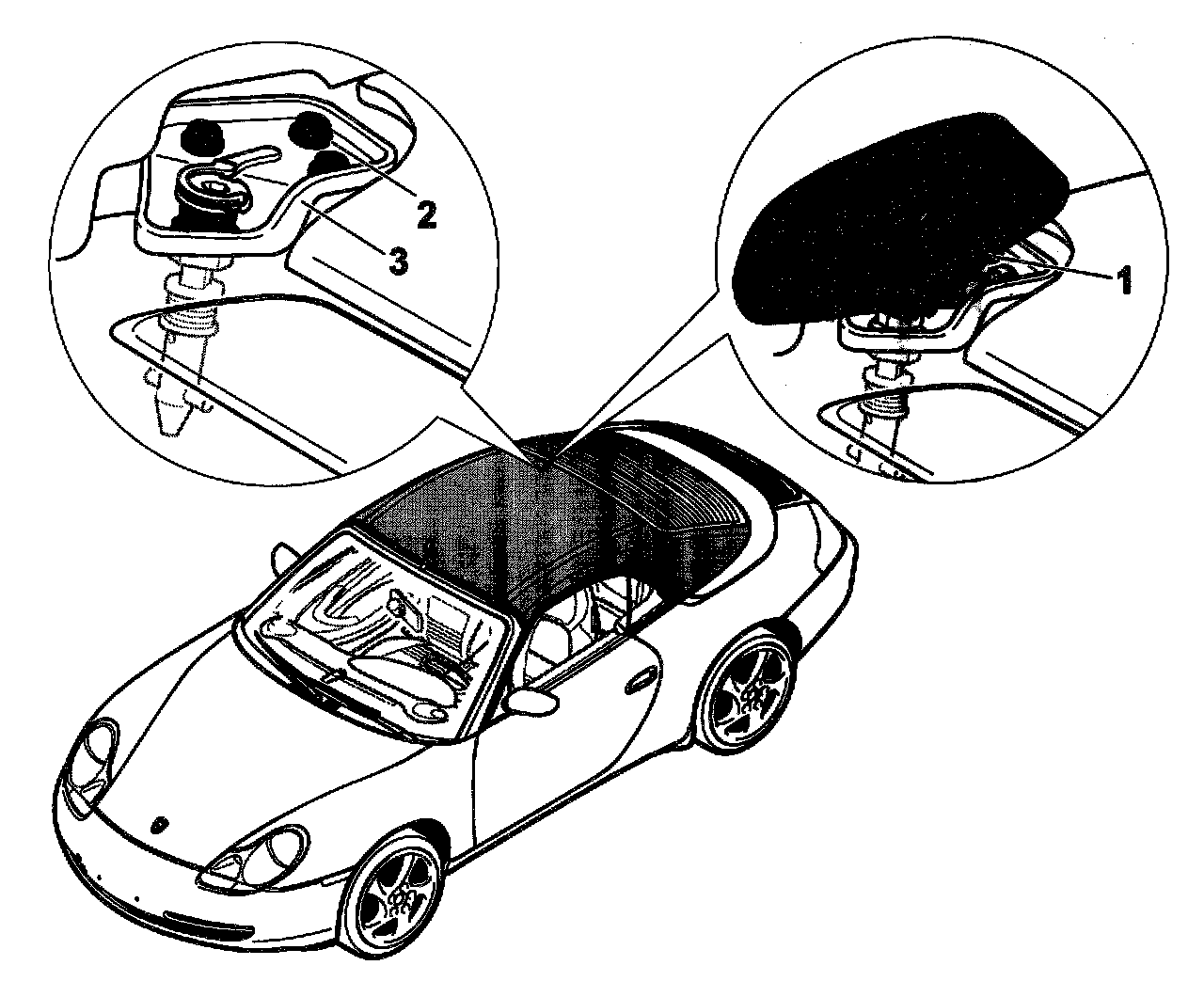

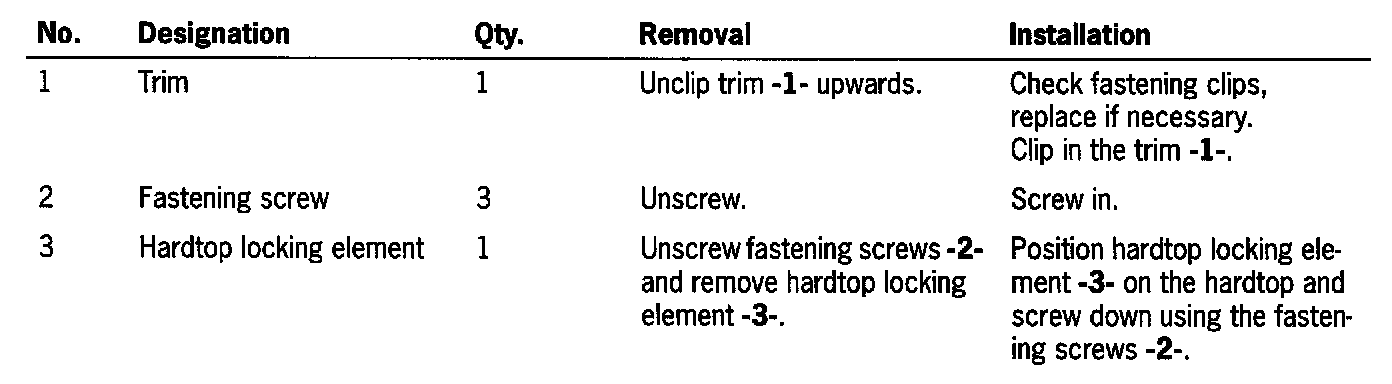

Removing and Installing the Hardtop Locking Element

Removing And Installing The Hardtop Locking Element










The hardtop must be removed before removing the hardtop locking element.







NOTE: The hardtop must be re-adjusted on the vehicle after replacing the hardtop locking element.

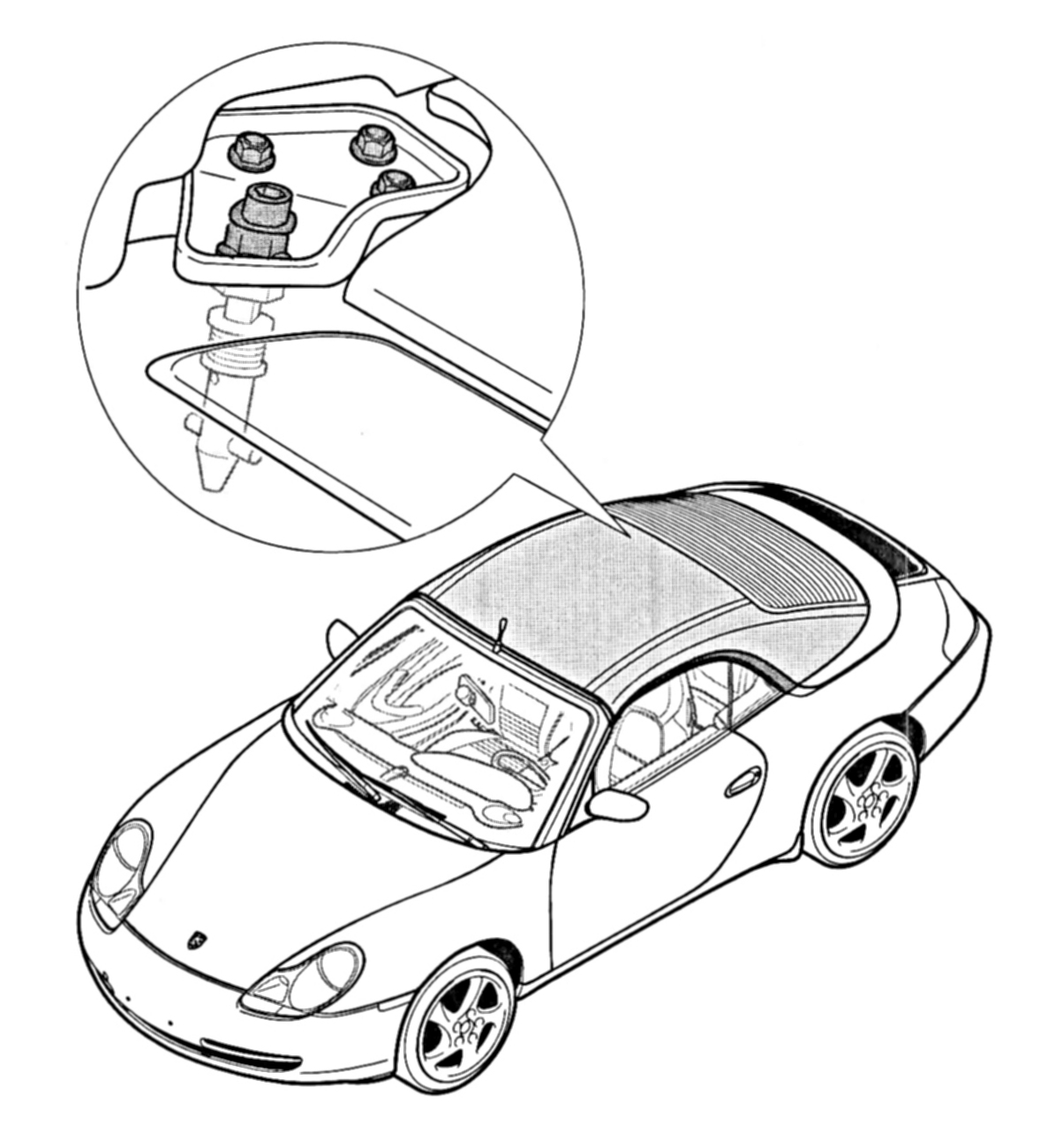

Removing and installing the hardtop mount bracket.

Tightening Torques
