Complaint 8

Complaint 8:
Creaking from the area of the convertible-top compartment lid.





Cause:

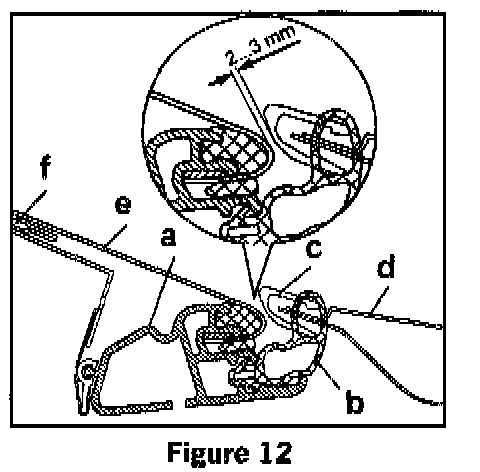

The contact pressure of the tension bow seal from below on the convertible-top compartment lid is so high (b to c, figure 12), that the seal is not capable of moving.

Repair:
Same repair as complaint 7.

a - Tension bow
b - Tension bow seal
c - Sealing strip, convertible-top compartment lid
d - Convertible-top compartment lid
e - Convertible-top covering
f - Rear window
